2.3 Connection
2-31
1
345672

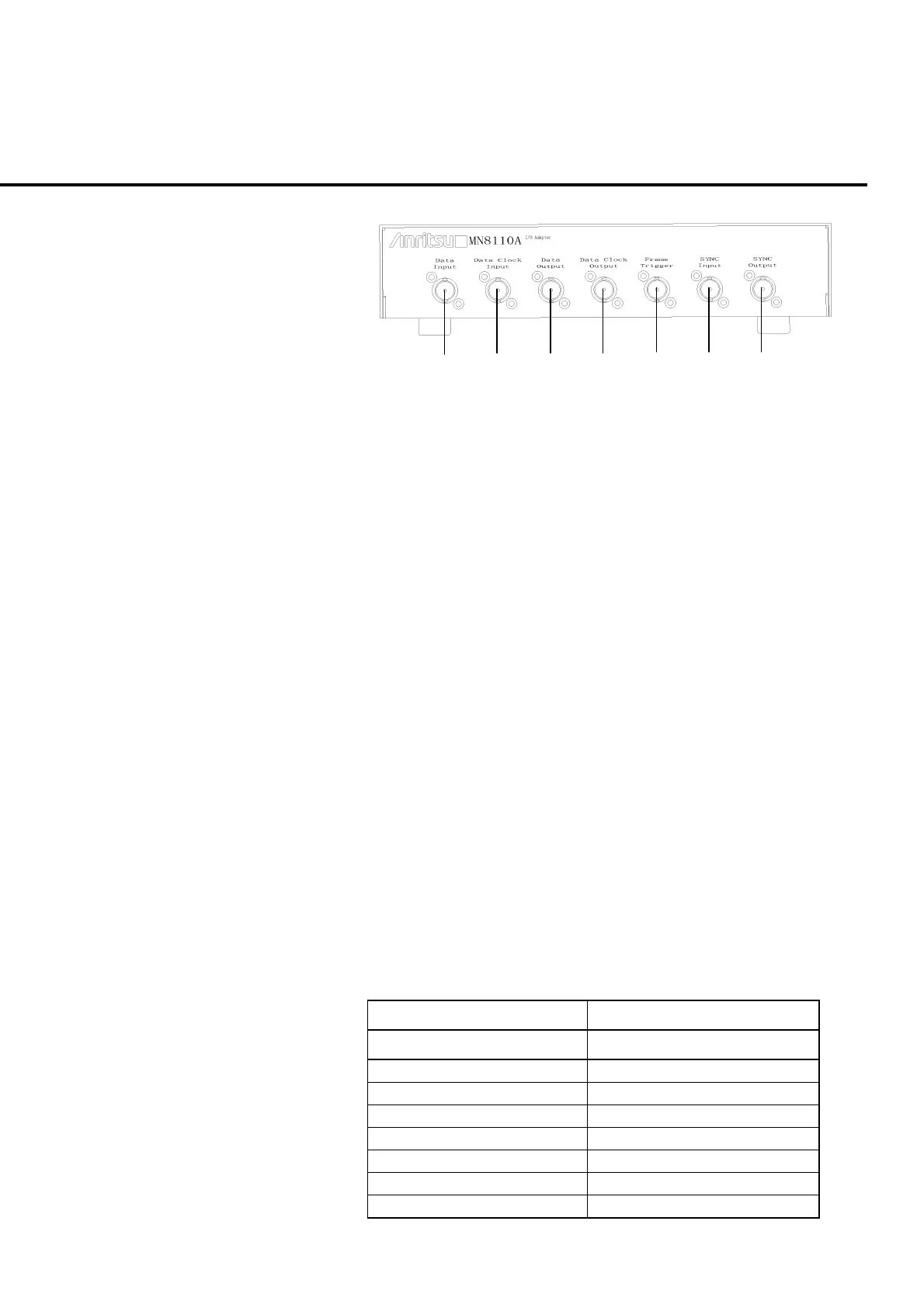

Fig. 2-3-10-2 Front panel
<When using W-CDMA, GSM or PDC measurement software>
1. Data Input Data input connector
2. Data Clock Input Data clock input connector
3. Data Output Data output connector
4. Data Clock Output Data clock output connector
5. Frame Trigger Trigger signal output connector
6. SYNC Input Synchronization signal input connector
7. SYNC Output Synchronization signal output connector
<When using CDMA2000 measurement software>
1. RSV1 Reserved
2. RSV2 Reserved
3. PP2S Output PP2S output
4. Frame Output Frame interval signal output
5. Slot Output Slot interval signal output
6. SYNC Input Synchronization signal input connector
7. SYNC Output Synchronization signal output connector
Table 2-3-10-3 Relationships between front panel connector and
MT8820A Call Proc I/O connector
When using W-CDMA, GSM or PDC measurement software
MN8110A front panel Call Proc. I/O on MT8820A
Connector name Signal name
Data Input BER_DAT_IN
Data Clock Input BER_CLK_IN
Data Output BER_DAT_OUT
Data Clock Output BER_CLK_OUT
Frame Trigger FRAME_TRG_OUT
SYNC Input SYNC IN
SYNC Output SYNC OUT
