Chapter 4 INTERFACE SETTINGS
183

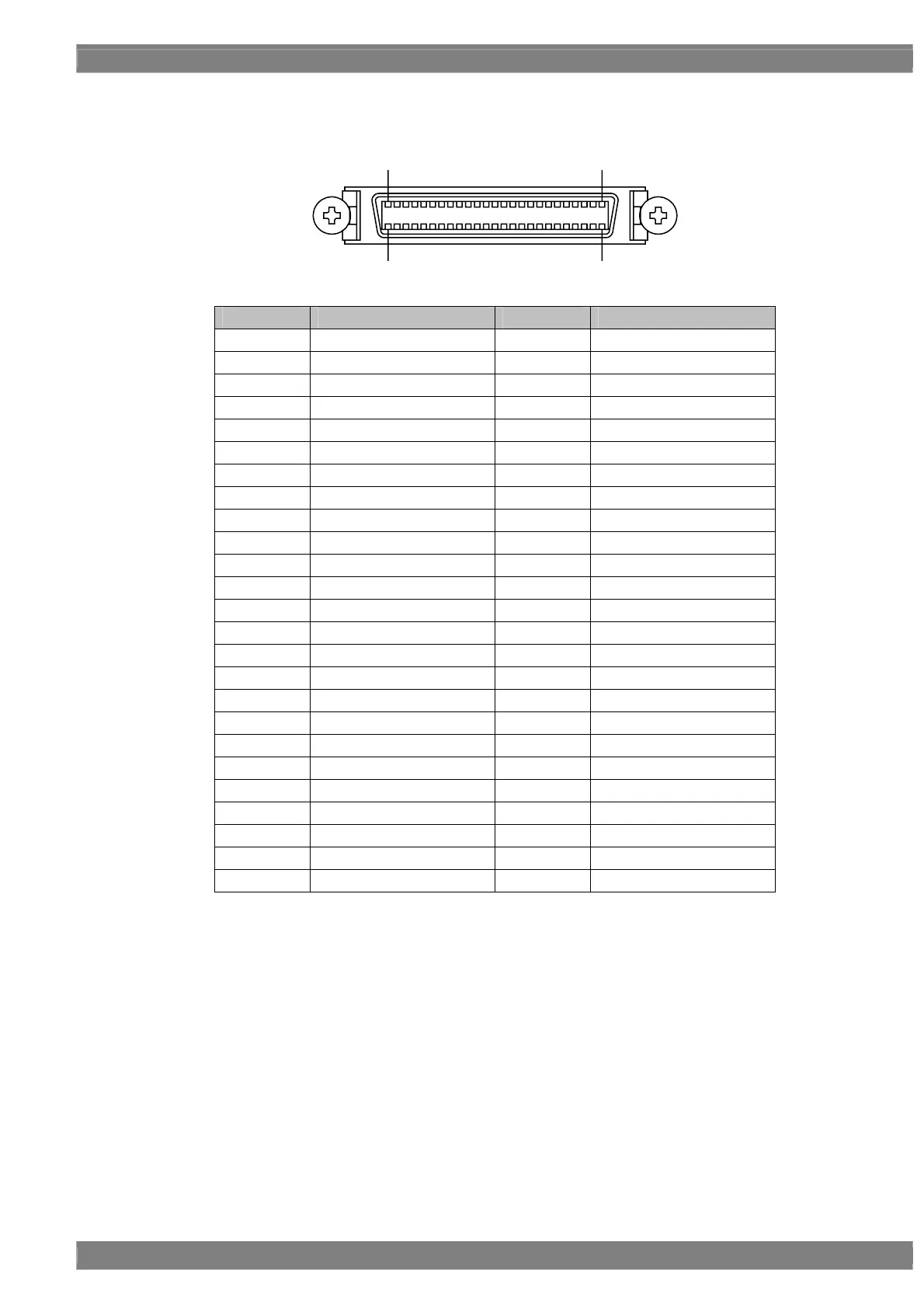

■ eDP Control Signal + Power OUT (Connector : HIROSE Electric
DX10G1M-50SE)
125
50 26
Pin No. Signal Pin No. Signal
1 GND 26 GND
2 GPIO OUT7 27 GPIO OUT6
3 GPIO OUT5 28 GPIO OUT4
4 GPIO OUT3 29 GPIO OUT2
5 GPIO OUT1 30 GPIO OUT0
6 3.3V OUT 31 GND
7 3.3V OUT 32 GND
8 3.3V OUT 33 GND
9 5V OUT 34 GND
10 5V OUT 35 GND
11 5V OUT 36 GND
12 GND 37 GND
13 GND 38 GND
14 GND 39 GND
15 External Power OUT2 40 External Power OUT2
16 External Power OUT2 41 External Power OUT2
17 External Power OUT2 42 External Power OUT2
18 GND 43 GND
19 GND 44 GND
20 GND 45 GND
21 External Power OUT1 46 External Power OUT1
22 External Power OUT1 47 External Power OUT1
23 External Power OUT1 48 External Power OUT1
24 GND(RS-232C) 49 GND(RS-232C)
25 RXD(RS-232C) 50 TXD(RS-232C)
To Next Page
