ASTRO VG Series User Manual

Chapter 4 INTERFACE SETTINGS
197

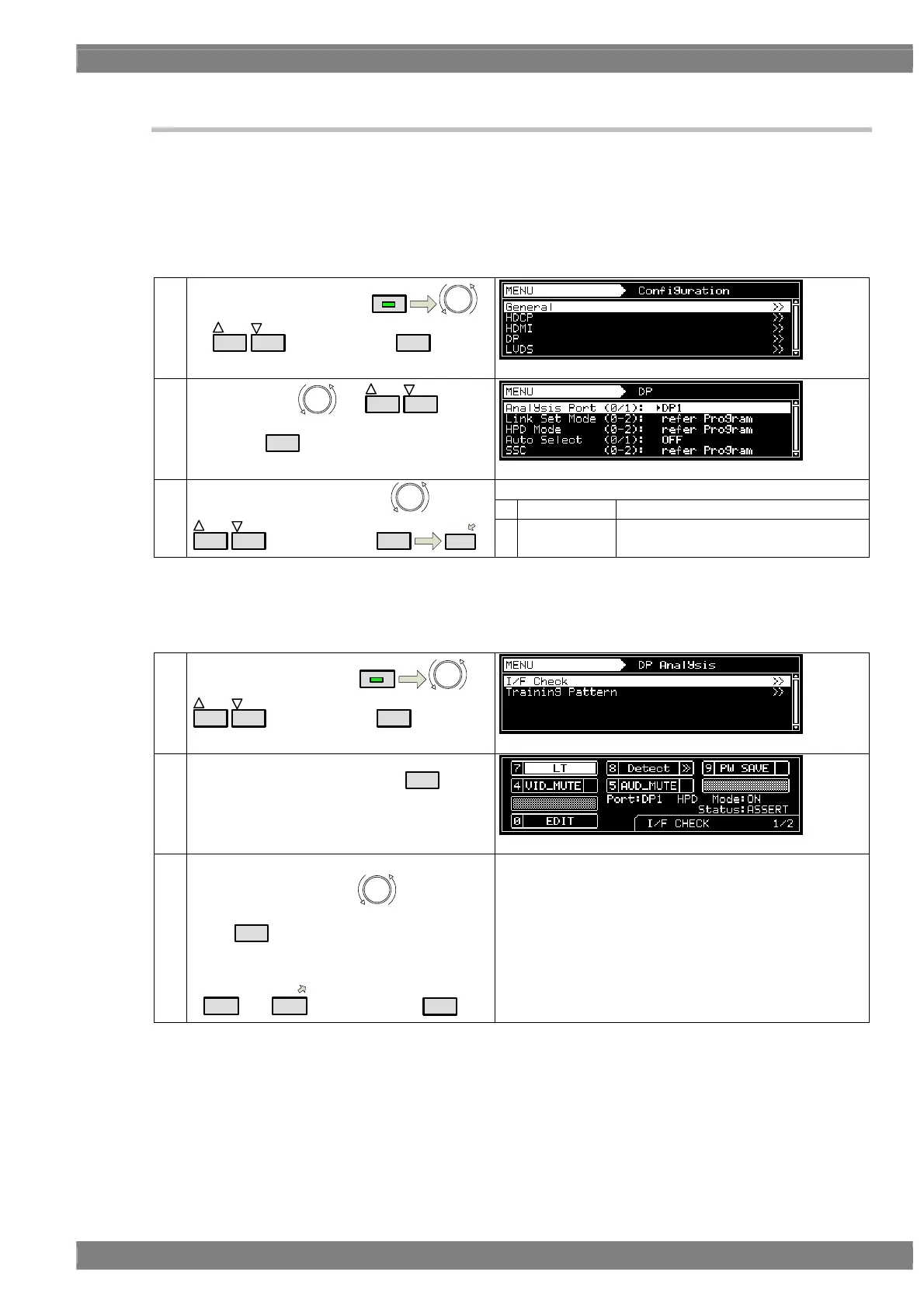

4.12.4 DisplayPort Analysis
The DisplayPort Analysis mode is used to perform the link check evaluation and otherwise evaluate the
DisplayPort interface.
a) Setting the port to be used
Select the port to be used by DisplayPort Analysis with the device settings.
(1)
Select Configuration using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select DP using
or
INC
DEC
, and
then press
SET
.
This selects the port to be used by DisplayPort Analysis.
0
DP1
DP1 is used.
(3)
Select the Analysis Port using
or
INC
DEC
, and then press
SET
1
.
1
DP2
DP2 is used.
b) I/F Check mode
This mode performs a simple check on the DisplayPort interface. This makes it possible to check link training,
Hotplug detection (cable connection/disconnection) and other behavior without creating a program.
(1)
Select DP Analysis using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select I/F Check, and then press
SET
.
(3)
<Selecting each function>
Select the functions using
, and then
press
SET
.
Alternatively:
Select the functions using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
For further details on each function, refer to <I/F Check
mode setting parameters> in this section.
