ASTRO VG Series User Manual

Chapter 6 PATTERN SETTINGS
311

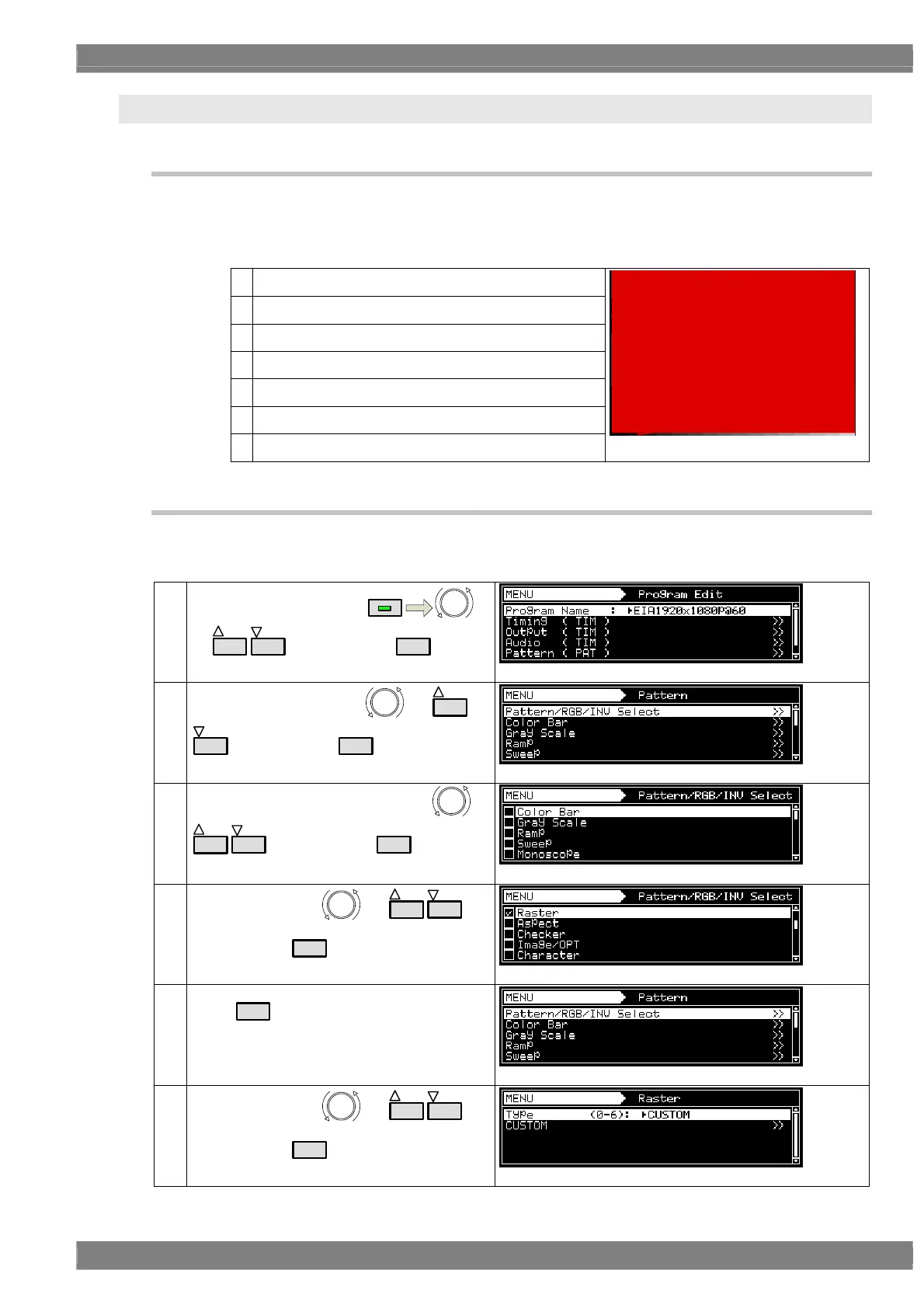

6.6 Raster patterns
6.6.1 Types of raster patterns
When raster has been selected using the pattern key, for instance, raster patterns can be selected from
among the types listed below.
For further details on pattern selection, refer to “2.1.3 Selecting the pattern data.”
0 CUSTOM
1 White
2 Red
3 Green
4 Blue
5 Black
6 50%-Gray
Raster pattern
6.6.2 Raster pattern type settings and customizing
Described below is the procedure for selecting the types of raster patterns and for performing the settings when
CUSTOM has been selected as the raster pattern type. (The rasters can be displayed with any level.)
(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Pattern (PAT) using
or
INC
DEC
, and then press
SET
.
(3)
Select Pattern/RGB/INV select using
or
INC
DEC
, and then press
SET
.
(4)
Select Raster using
or
INC
DEC
,
and then press
SET
.
(5)
Press
ESC
.
(6)
Select Raster using
or
INC
DEC
,
and then press
SET
.
