ASTRO VG Series User Manual

34

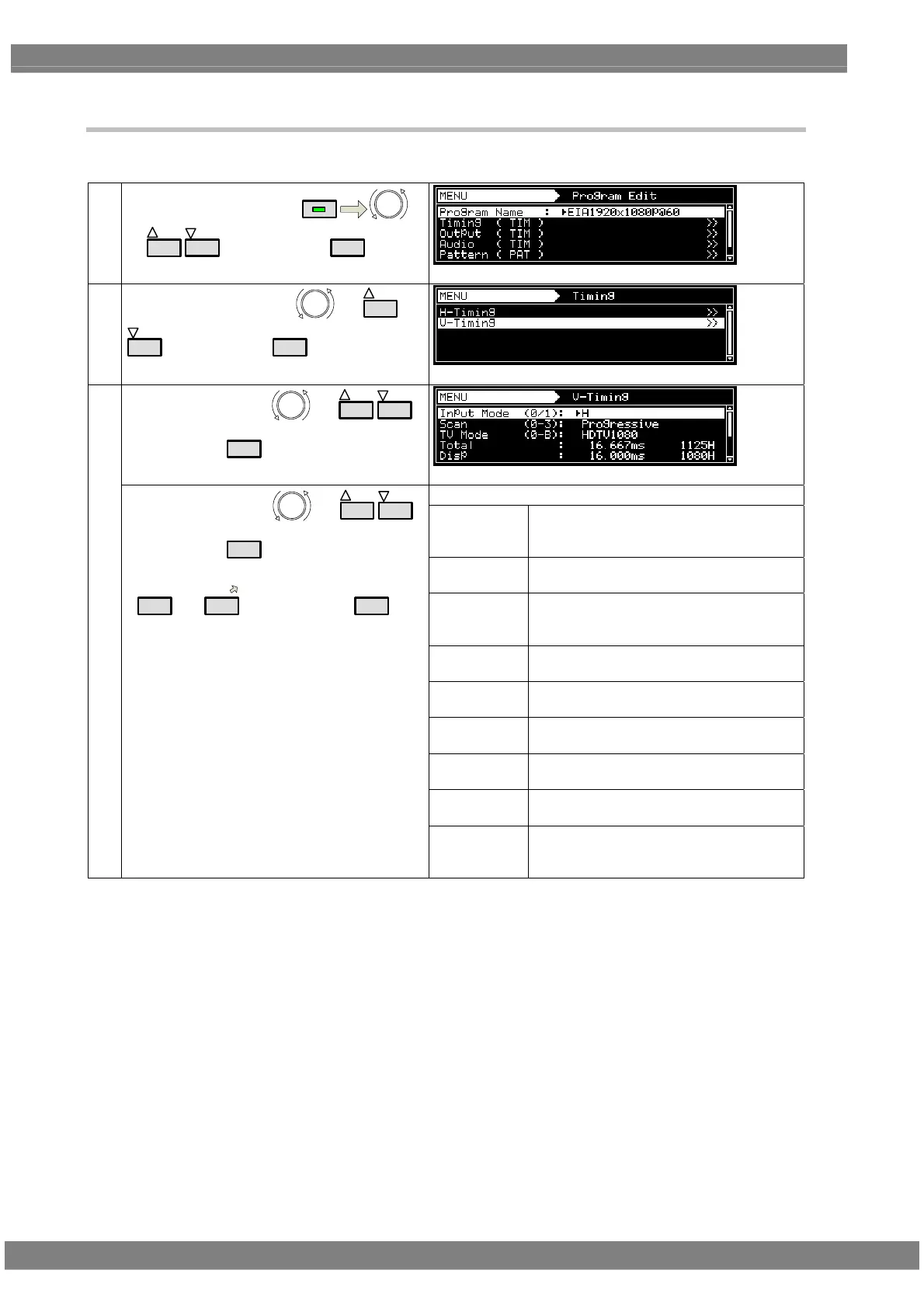

3.2.3 Vertical timing data setting procedure
Described below is the procedure used to set the parameters which can be changed with the vertical timing data.
(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Timing (TIM) using
or
INC
DEC
, and then press
SET
.
Select V-Timing using or
INC
DEC
,
and then press
SET
.
Set the V-Timing parameters.
Input Mode
Select the input setting for the V-Timing
parameters to ms: time [milliseconds] or H:
number of lines [H].
Scan Refer to “3.2.4 Concerning the scanning
modes.”
TV Mode
As a general rule, do not change this
setting. For further details, refer to “3.2.5
Concerning the TV modes.”
Total
The Total number in the vertical direction is
set here.
Disp
The Disp width in the vertical direction is
set here.
Sync
The Sync width in the vertical direction is
set here.
BackP
The BackP width in the vertical direction is
set here.
Serration/EQP
Refer to “3.2.6 Concerning Serration and
EQP.”
(3)
Select the items using
or
INC
DEC
,
and then press
SET
.
Select the parameter using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
* In the case of interlaced scanning outputs,
Total, Disp, Sync and BackP are set for both
Field1 and Field2.
VD
Set VDStart and VDline here. This
parameter can be set only when the
parallel board has been installed.
