Chapter 9 VG-870/871 SYSTEM SETTINGS
411

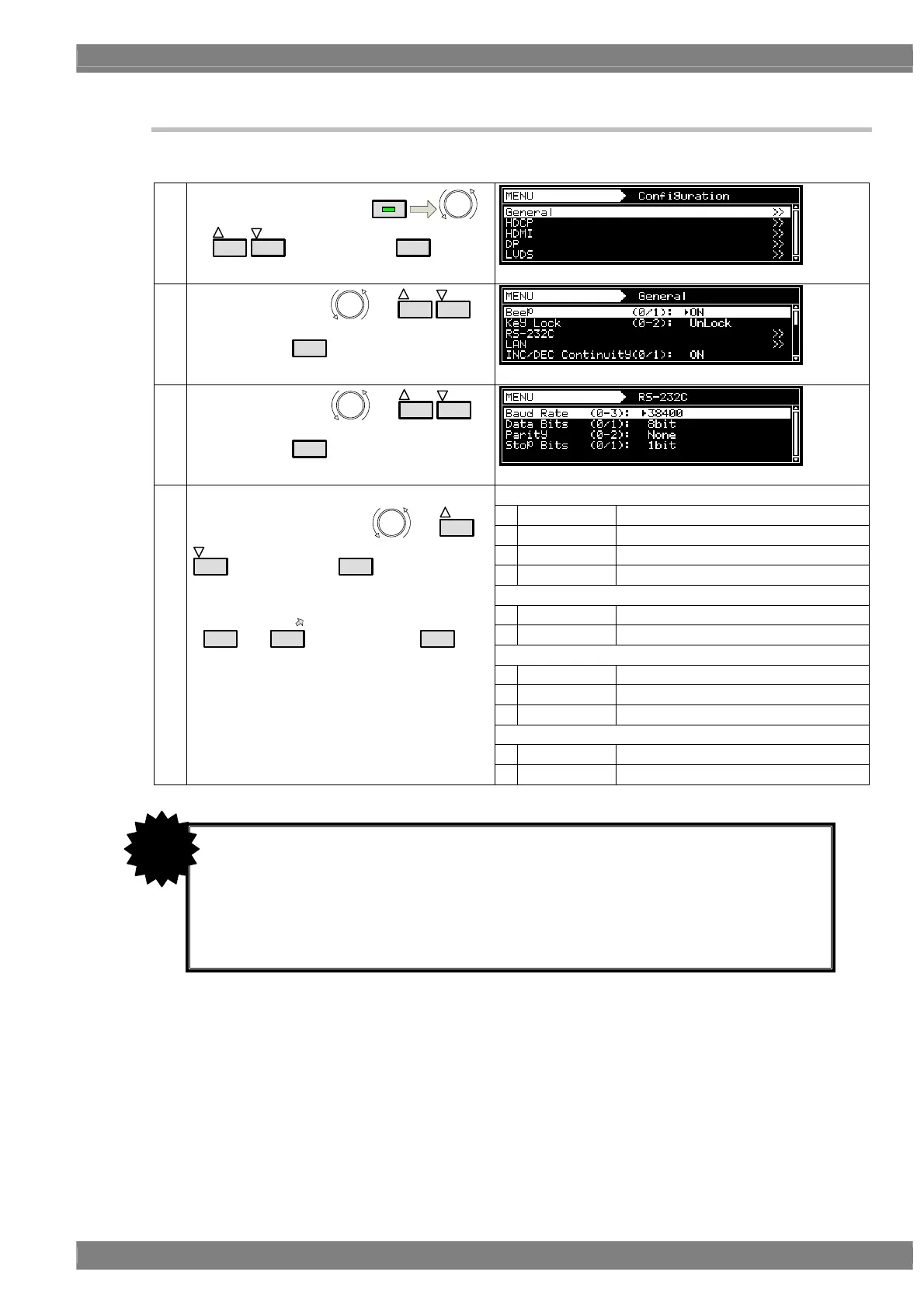

9.1.3 RS-232C settings
These settings are performed when connection to the terminal is to be established from the RS-232C port.
(1)
Select Configuration using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select General using
or
INC
DEC
,
and then press
SET
.
(3)
Select RS232C using
or
INC
DEC
,
and then press
SET
.
The baud rate is set here.
0 9600 The baud rate is set to 9600 bps.
1 19200 The baud rate is set to 19200 bps.
2 38400 The baud rate is set to 38400 bps.
3 57600 The baud rate is set to 57600 bps.
The number of data bits is set here.
0 7 bit 7 data bits are set
1 8 bit 8 data bits are set
The parity is set here.
0 None Parity is set to none.
1 Even Parity is set to even.
2 Odd Parity is set to odd.
The number of stop bits is set here.
0 1 bit 1 stop bit is set.
(4)
<Inputting the parameters>
Select the parameters using
or
INC
DEC
, and then press
SET
.
Alternatively:
Select the parameters using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
1 2 bit 2 stop bits are set.
CAUTION
When you use terminal commands for VG-870 series, please set “Data Bits” as 8-bit. If
you use old VG series (e.g. VG-848, VG-859C), some commands works okay with Data
Bits as 7-bit.
When you change setting here, please re-boot VG unit. The setting change is activated
after re-booting.
