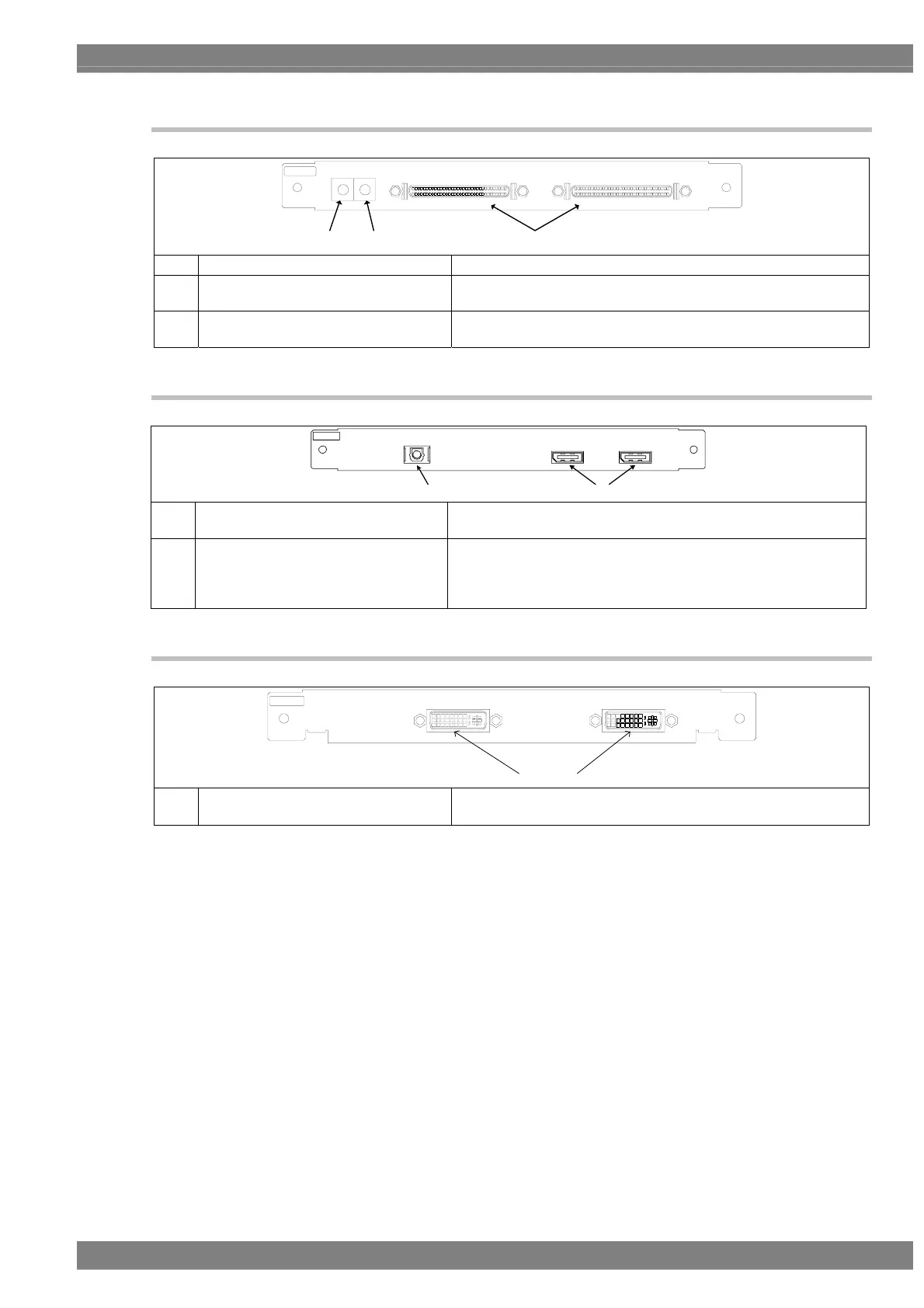

1.5.6 Parallel unit (VM-1816)
P A RA LLEL 2 P A RA LLEL 1
SIGNAL POWER
P AR A LLEL
(20)(22) (21)
(20) Parallel output connectors The signals of two 8-bit systems can be output here.
(21) Supply voltage setting
This enables the supply voltage (1.8 V, 2.5 V, 3.3 V or 5 V) to be
selected.
(22) Signal level setting
This enables the signal level (1.8 V, 2.5 V, 3.3 V or 5 V) to be
selected.
1.5.7 DisplayPort unit (VM-1820 .. discontinued)
DisplayPort1
AUDIO IN
OPTICAL DisplayPort2
DP
(24) (23)
(23) DisplayPort output
Two systems of split drawing signals can be simultaneously
output here.
(24) TOSLINK digital audio input
This connector enables digital audio data to be input using an
optical connection.
Digital audio data can be output to the monitor as the embedded
audio data of the DisplayPort output.
1.5.8 4K2K iTMDS unit (VM-1824)
DVI-D 2 DVI-D 1
iTMDS
(25)
(25) iTMDS(DVI) output connectors Only Digital signals can be output here. (iTMDS connector)
Dual-Link is supported. (HDCP is not supported.)
