ASTRO VG Series User Manual

Chapter 6 PATTERN SETTINGS
313

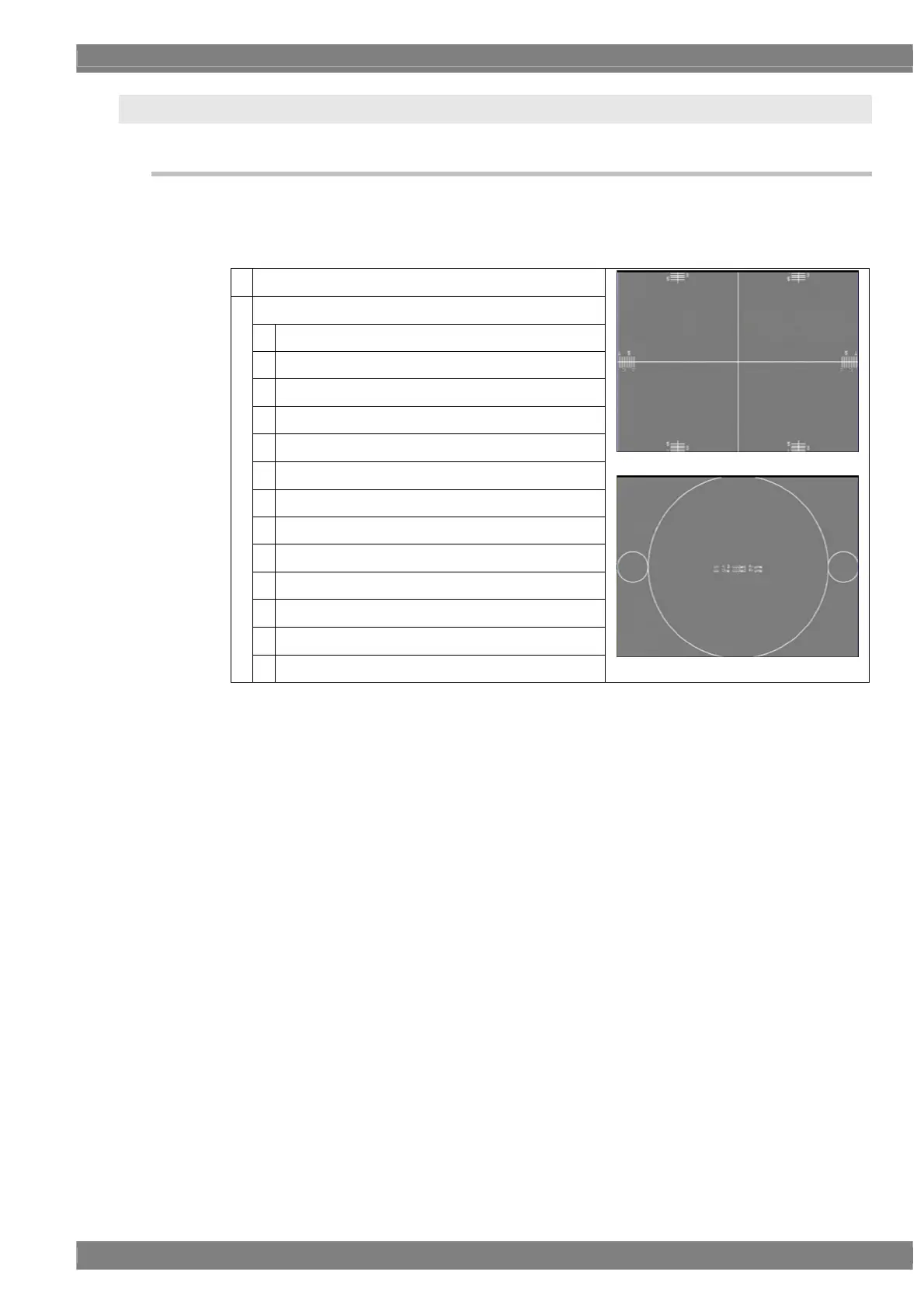

6.7 Aspect ratio patterns
6.7.1 Types of aspect ratio patterns
When aspect ratio has been selected using the pattern key, for instance, aspect ratio patterns can be
selected from among the types listed below.
For further details on pattern selection, refer to “2.1.3 Selecting the pattern data.”
0
Over Scan
AFD
0
As the coded frame
1
4:3 (center)
2
16:9 (center)
3
14:9 (center)
4
box 16:9 (top)
5
box 14:9 (top)
6
box 13:7 (center)
7
box 2:1 (center)
8
box 11:5 (center)
9
box 12:5 (center)
A
4:3 (14:9 center)
B
16:9 (14:9 center)
1
C
16:9 (4:3 center)
Over Scan
AFD pattern
