ASTRO VG Series User Manual

Chapter 6 PATTERN SETTINGS
363
6.13.4 DDC/CI
Using the DVI and VGA connectors, the DDC/CI commands can be sent and received, and shown on
the display.
Two modes are available for DVI/CI: the Get (Get VCP Feature) mode in which the setting data is
loaded from the information set in the display at the connection destination, and the Set (Set VCP
Feature) mode in which the data of the user’s choice is set.

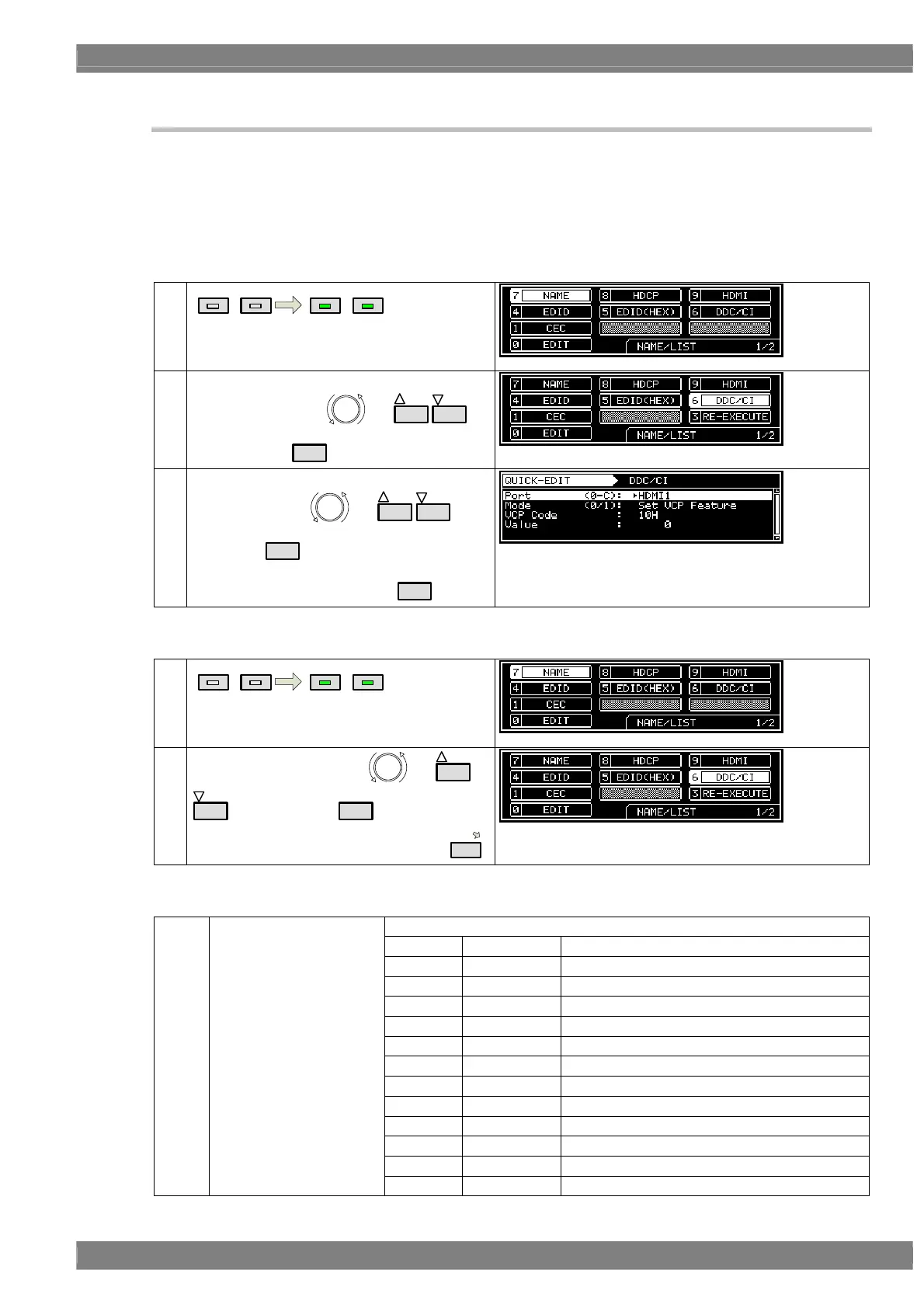

<Setting DDC/CI>
(1)
NAME/LIST
DETAIL
NAME/LIST
DETAIL
(2)
<Selecting DDC/CI>
Select DDC/CI using
or
INC
DEC
,
and then press
SET
.
(3)
<Detailed setting: EDIT>
Select EDIT using
or
INC
DEC
, and
then press
SET
.
Alternatively, select EDIT using
0/STATUS
.
<Re-executing DDC/CI>
(1)
NAME/LIST
DETAIL
NAME/LIST
DETAIL
(2)
Select RE-EXECUTE using
or
INC
DEC
, and then press
SET
.
Alternatively, select RE-EXECUTE using
3
.
<Table of DDC/CI setting items>
The port for using DDC/CI is set here.
0
DVI1 DDC/CI is used by the DVI1 port.
1
DVI2 DDC/CI is used by the DVI2 port.
2
iTMDS1 DDC/CI is used by channel 1 of the iTMDS unit.
3
iTMDS2 DDC/CI is used by channel 2 of the iTMDS unit.
4
iTMDS-Quad1 DDC/CI is used by channel 1 of the iTMDS Quad unit.
5
iTMDS-Quad3 DDC/CI is used by channel 3 of the iTMDS Quad unit.
6
HDMI1 DDC/CI is used by the HDMI1 port.
7
HDMI2 DDC/CI is used by the HDMI2 port.
8
DP1 DDC/CI is used by the DisplayPort1.
9
DP2 DDC/CI is used by the DisplayPort2.
A
PC-DVI DDC/CI is used by the DVI port of the PC analog unit.
B
PC-VGA DDC/CI is used by the VGA port of the PC analog unit.
(1)
Port (0-C)
C
TV-VGA/DVI DDC/CI is used by the DVI port of the TV encoder unit.
