HDCP SETTINGS AND
EXECUTION

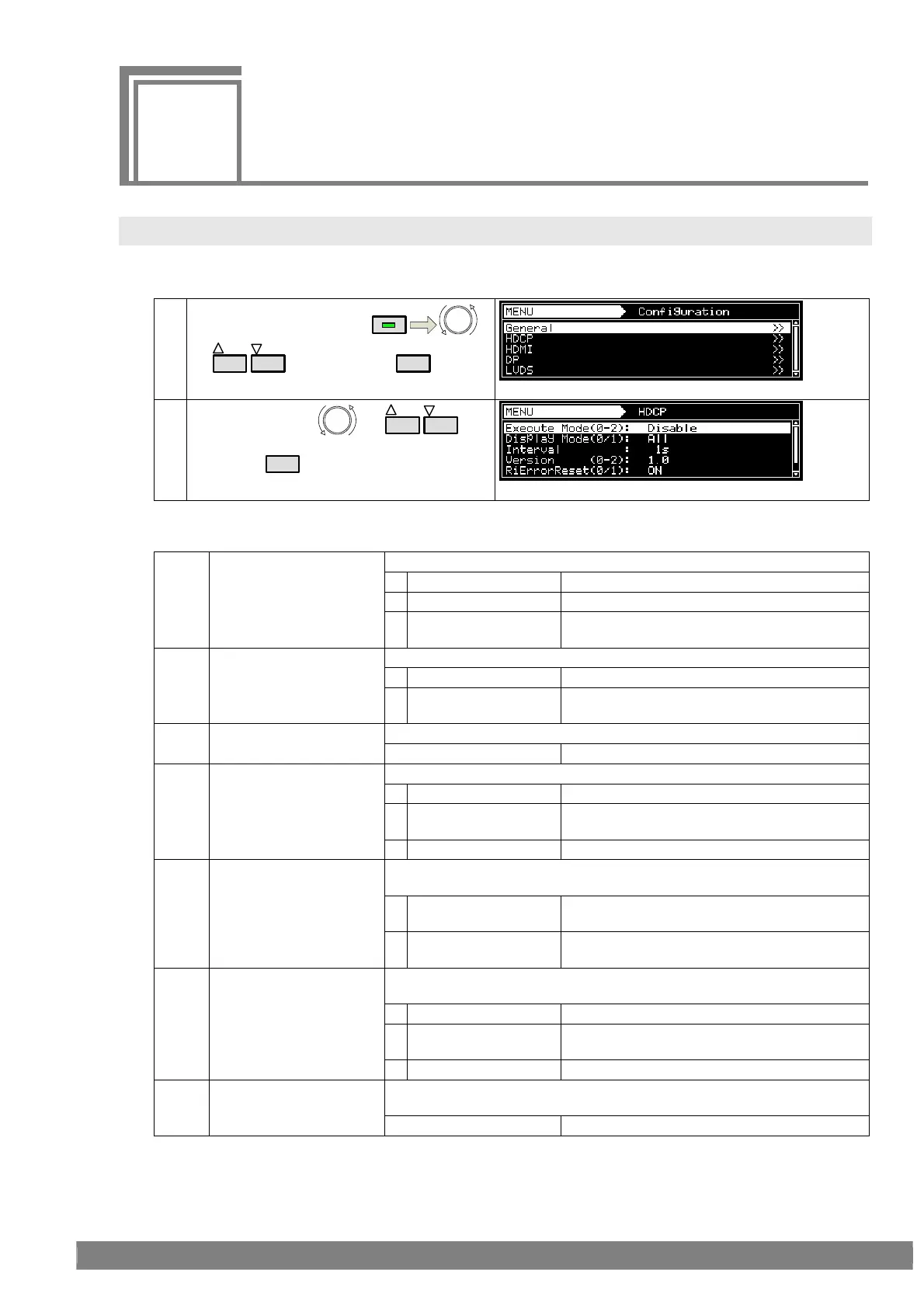

8.1 HDCP settings
<HDCP setting procedure>
(1)
Select Configuration using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select HDCP using
or
INC
DEC
, and
then press
SET
.
<List of HDCP setting items>
The HDCP execution mode is set here.
0
Disable
HDCP execution is disabled.
1
Enable
HDCP execution is enabled.
(1)
Execute Mode (0-2)
2
Program
HDCP execution enable/disable is set for each
program.
The HDCP authentication screen display mode is set here.
0
All
All the authentication values are displayed.
(2)
Display Mode (0-1)
1
NG Only
The authentication values are displayed only
with an NG result.
The interval for performing the authentication is set here. (3)
Interval
1s-10s An interval from 1 second to 10 seconds is set.
The HDCP version is set here.
0
1.0
HDCP version 1.0 is used for execution.
1
1.1/1.2
Operation is performed using HDCP version 1.1
or 1.2. *1
(4)
Version (0-2)
2
EDID Check
The version is determined after checking EDID.
Whether to proceed with re-authentication when errors have occurred in
HDCP authentication is set here. *2
0
OFF
Re-authentication is not undertaken when errors
have occurred.
(5)
RiErrorReset (0/1)
1
ON
Re-authentication is undertaken when errors
have occurred.
The limit on the time to wait until “FIFO Ready” is returned when the
connected device is a repeater is set here.
0
OFF
30 seconds
1-
7
600 ms to 4,200 ms
Increased in increments of 600 ms
(6)
FIFO Ready (0-8)
8
5,000 ms
5 seconds
Delay the time to start first HDCP recognition. (available only for HDMI
300MHz unit VM-1823 )
(7) Wait Time
0ms-200ms Set delay time by 10ms unit.
*1 “Advance Cipher/Enhanced Link Verification” is not supported.
*2 HDMI 300MHz unit (VM-1823) is always set as ON.
