1.5.15 DisplayPort, eDP Unit (VM-1826)
DP /eDP
DISPL AY PO RT 2
COAX IN
eDP C O NTRO L+PO WER O UTe DP EXT PO W ER IN
DISPL AY PO RT 1
(40) (41)(42)(43)

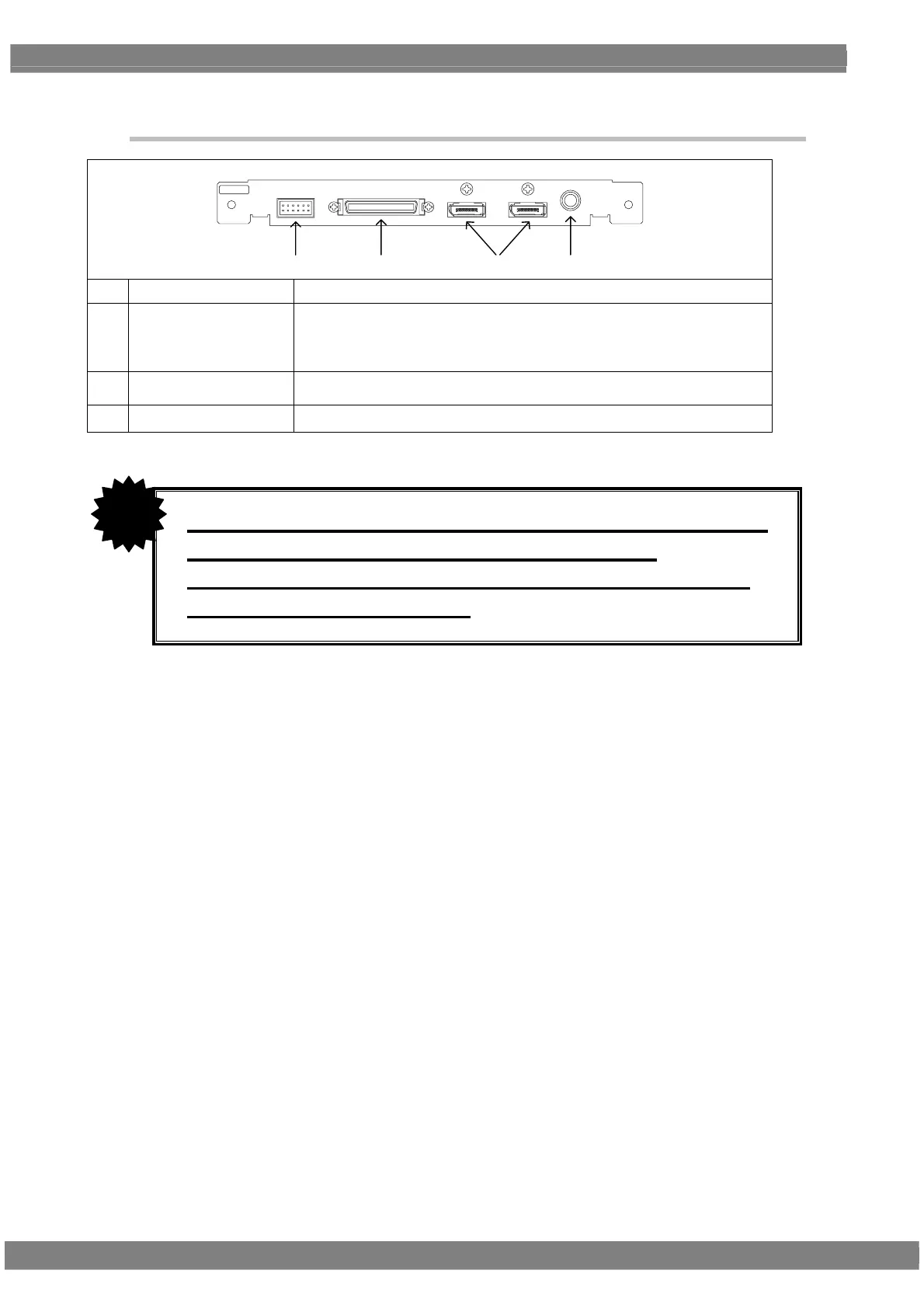

(40) DisplayPort Output Outputs 2 channels simultaneously and split-drawing is available.
(41)
COAX digital audio
input
This connector enables digital audio data to be input using a coaxial
connection.
Digital audio data can be output to the monitor as the embedded audio data
of the DisplayPort output.
(42)
Power, control signal
output
Power (4 lines) and control signal (8 lines) are output.
(43) External power input External powers (2 lines) are input here.
Do not attempt to remove the interface units from
the main unit due to the risk of damage.
When units are to be added or replaced, please
contact ASTRODESIGN.
CAUTION
