ASTRO VG Series User Manual

42
(6)

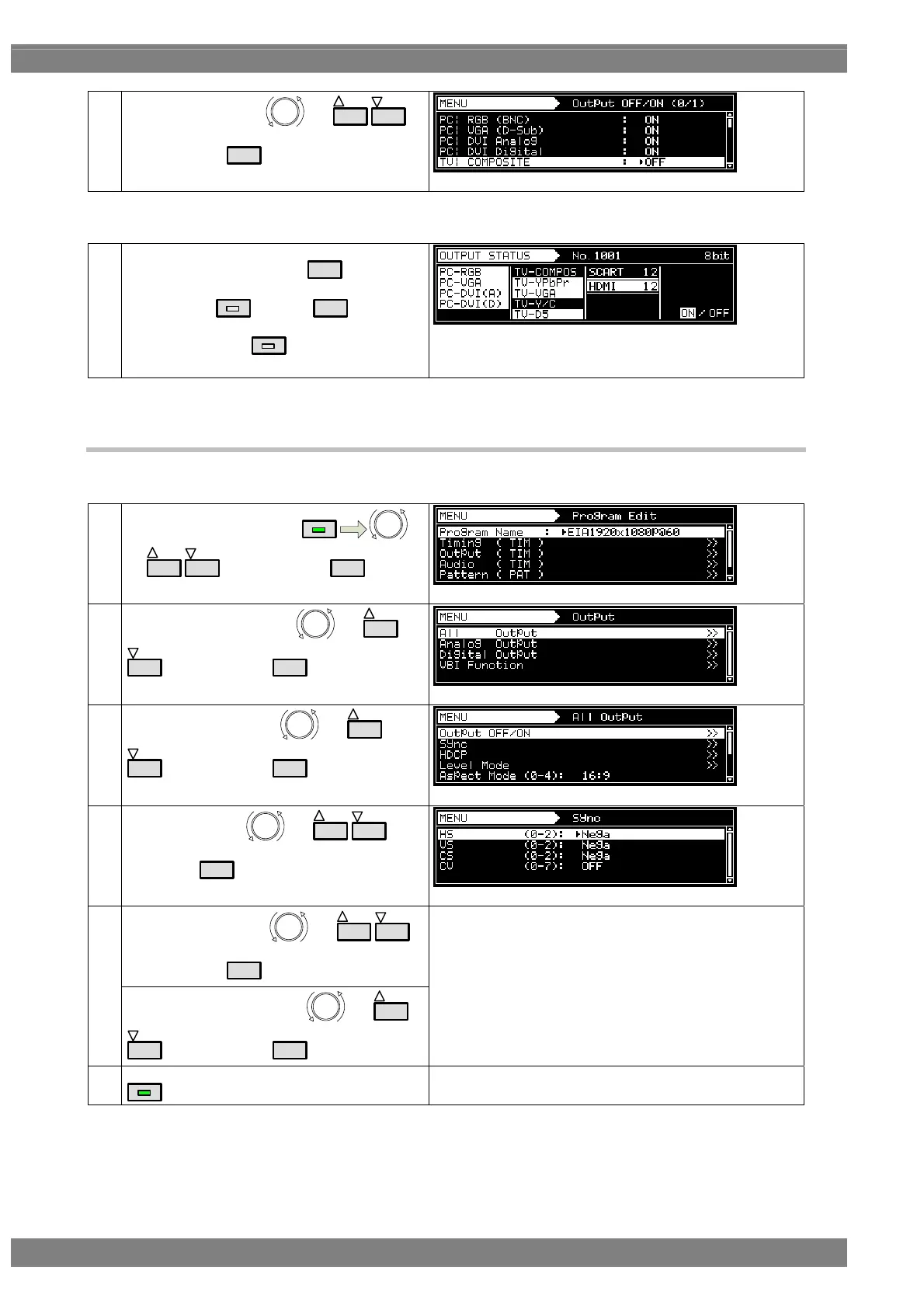

Select OFF/ON using
or
INC
DEC
,
and then press
SET
.
<How to check the interfaces whose signals are output>
(1)
On the initial screen, select
0/STATUS
while
holding down
SHIFT
. Select
0/STATUS
again
while holding down
SHIFT
to exit from the
OUTPUT STATUS screen.
4.1.2 Setting the sync signals to ON or OFF and setting the sync signal
polarities
In this section, the sync signals are set to ON or OFF and the sync signal polarities are set for each output connector.
(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Output (TIM) using
or
INC
DEC
, and then press
SET
.
(3)
Select All Output using
or
INC
DEC
, and then press
SET
.
(4)
Select Sync using
or
INC
DEC
, and
then press
SET
.
Select the items using or
INC
DEC
,
and then press
SET
.
(5)
Select the parameters using
or
INC
DEC
, and then press
SET
.
HS/VS/CS and CV is set here.
* CV is a sync signal overlapping on analog video signal
from RGB/YpbPr connectors and it denotes
“Video-on-Sync” and this manual.
For further details, refer to <Sync setting parameters> on
the next page.
(6)
MENU
Display returns to the initial screen.
