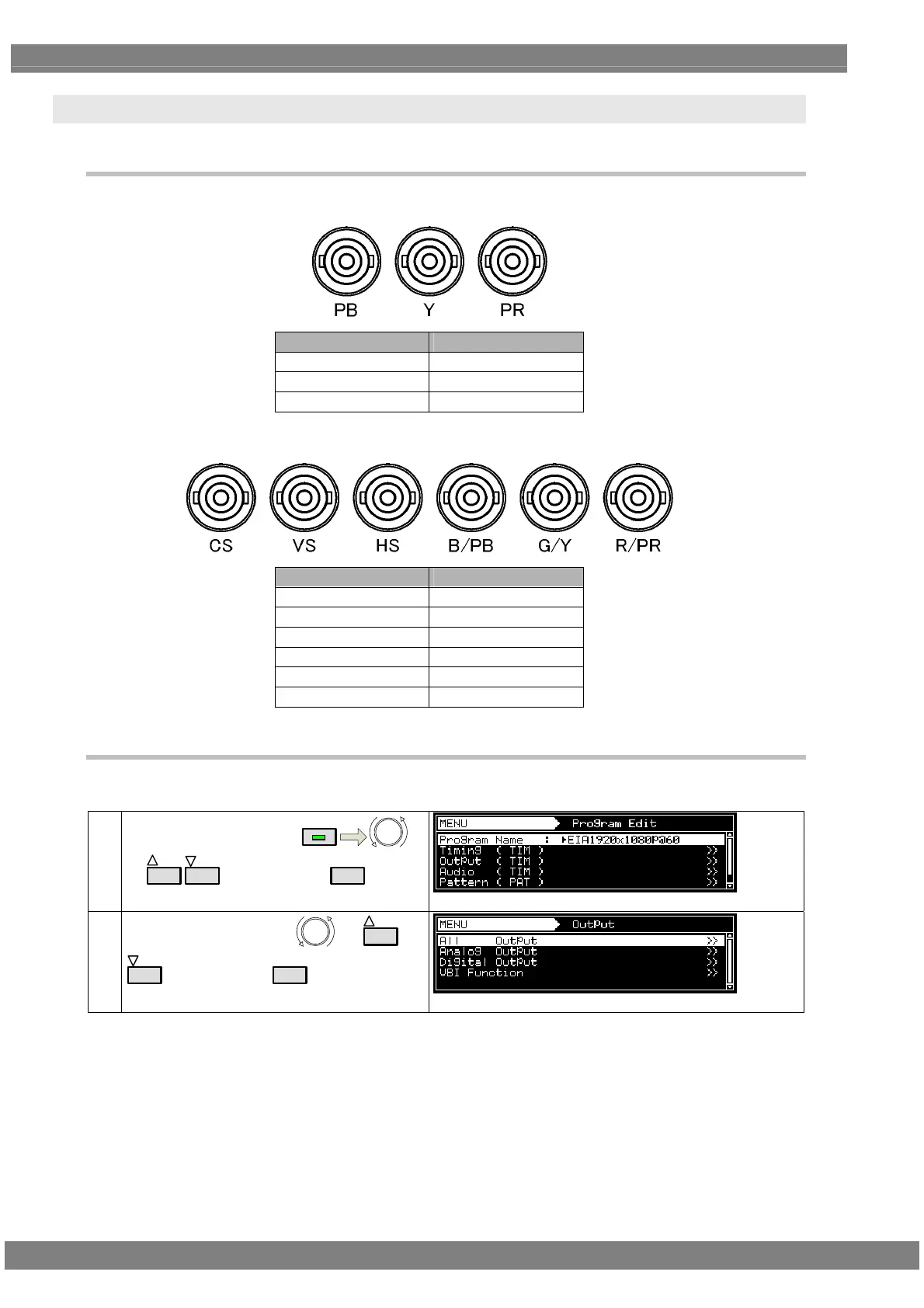

4.7 Analog component signals
4.7.1 Connectors and output signals
 TV encoder board component outputs (BNC)
Connector Signal
PB Pb
Y Y
PR Pr
 PC unit board component outputs (BNC)
Connector Signal
CS CS
VS VS
HS HS
B/PB B or Pb
G/Y G or Y
R/PR R or Pr
4.7.2 Setting the analog output connectors
The analog component signals and output signals from the HS and CS connectors can be set for each program.
(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Output (TIM) using
or
INC
DEC
, and then press
SET
.
