ASTRO VG Series User Manual

296

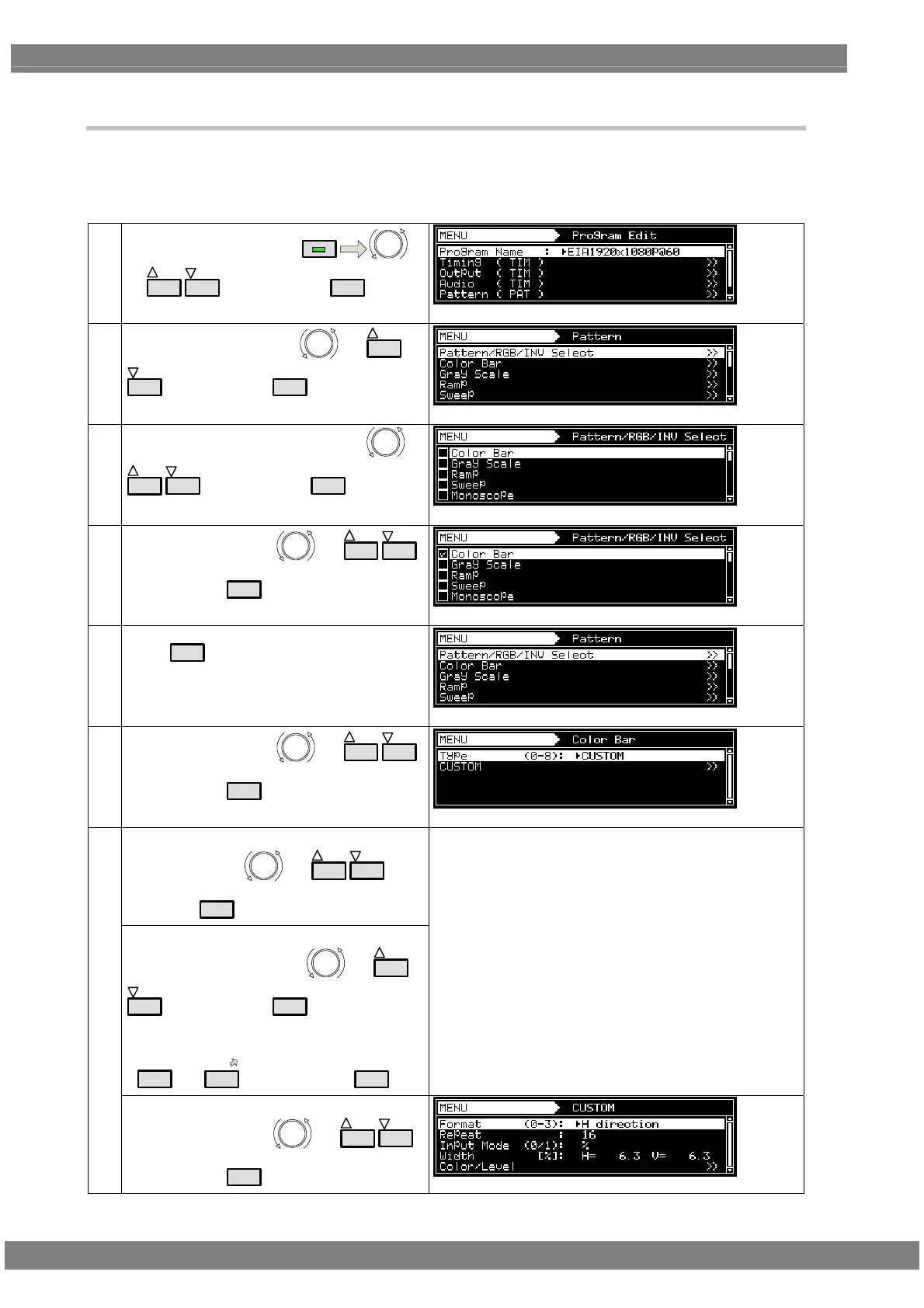

6.1.2 Color bar pattern customizing
Described below is the procedure for selecting the color bar pattern types and for performing the settings when
CUSTOM has been selected as the color bar pattern.
(If CUSTOM is selected, the color bar patterns can be displayed with any width and color.)
(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Pattern (PAT) using
or
INC
DEC
, and then press
SET
.
(3)
Select Pattern/RGB/INV select using
or
INC
DEC
, and then press
SET
.
(4)
Select Color Bar using or
INC
DEC
,
and then press
SET
.
(5)
Press
ESC
.
(6)
Select Color Bar using or
INC
DEC
,
and then press
SET
.
<Selecting the items>
Select Type using or
INC
DEC
, and
then press
SET
.
<Setting the parameters>
Select the parameters using or
INC
DEC
, and then press
SET
.
Alternatively:
Select the parameters using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
For further details on the patterns, refer to “6.1.1 Types of
color bar patterns.”
(7)
<Detailed settings of customized patterns>
Select CUSTOM using
or
INC
DEC
,
and then press
SET
.
