ASTRO VG Series User Manual

Chapter 4 INTERFACE SETTINGS
93
4.2.12 HDMI Ethernet Channel
HDMI Ethernet Channel function execution and pattern display
* This function is available only for the below condition.
・ HDMI 300MHz unit (VM-1823)
・ When IA-1542 (HEAC Adaptor) is connected to HDMI1.4a Video Signal Generator (VG-870B / 871B) .
IA-1542 can not be used with VM-1817(HDMI 1.3) or VM-1823 (HDMI 300MHz).
The below operation is for HDMI 300MHz unit (VM-1823). If you use IA-1542, please refer to IA-1542 Instruction
Manual.

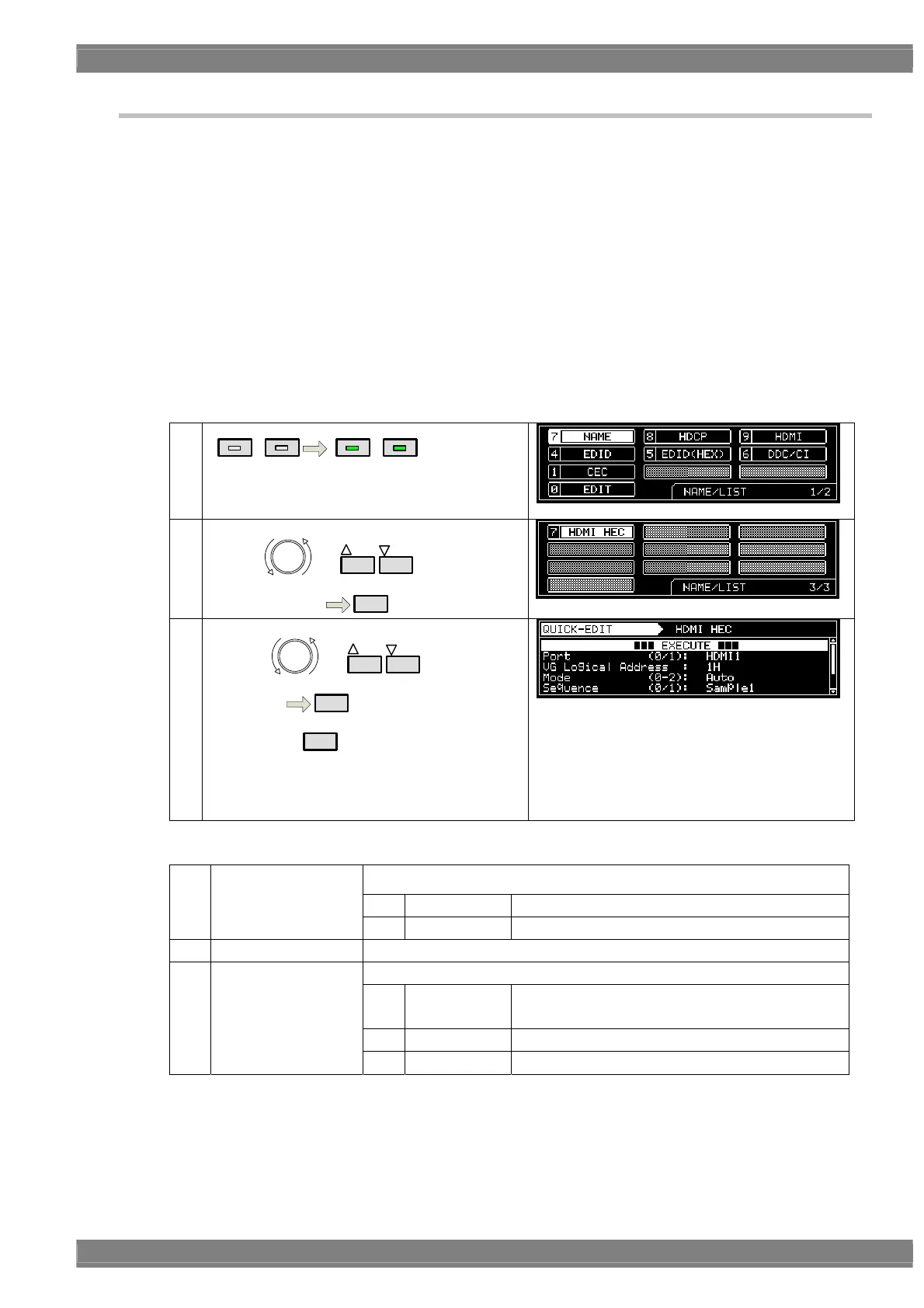

《HDMI Ethernet Channel execution pattern》
1
NAME/LIST
DETAIL
NAME/LIST
DETAIL
2
《Select HDMI HEC》
By using
or
INC
DEC
,
Select HDMI HEC
SET
3
《Detail setting：select EDIT》
By using
or
INC
DEC
,
Select EDIT
SET
Or, select by
0/STATUS
.
After editing detail items, select EXECUTE,
and press SET key. Then the setting
becomes available.
《HDMI HECGeneral setting items》
Select a port to execute HEC test.
0 HDMI1 HDMI1 executes HEC.
(1) Port(0/1)
1 HDMI2 HDMI2 executes HEC.
(2) VG Logical Address Set CEC Logical Address of VG main unit.
Set a mode of HEC test.
0 Auto Send CDC (Capability Discovery and Control)
message, ping commands automatically.
1 CDC Send CDC message.
(3) Mode (0-2)
2 Network Send ping commands.
