6.13 Name/List
Information such as the setting data and execution results as well as the images (number of colors
restricted) are contained in the Name/List patterns, and they can be superimposed onto other patterns.
<Name/List types>
NAME Program name display For details, refer to “6.13.2 Name.”
EDID EDID setting data display For further details, refer to “6.13.3 EDID.”
DDC/CI DDC-CI setting data display For further details, refer to “6.13.4 DDC/CI.”
HDCP
HDCP authentication screen
display.
For further details, refer to“6.13.5 HDCP
(High-bandwidth Digital Content Protection).”
CEC CEC setting data display
For further details, refer to “4.2.4 CEC
function.”
HDMI HMDI setting data display For further details, refer to “6.13.6 HDMI list.”
TIMING
Timing data (parameter, etc.)
display
For further details, refer to “6.13.7 Timing
data list.”
IMAGE Image pattern list display
For further details, refer to “6.13.8 Image
pattern list.”
OPT-USER
User optional pattern list
display
For further details, refer to “6.13.9
OPT-USER pattern list.”
DP
Display port setting
information display
(link rate, number of lanes, link
training results, DPCD)
For details, refer to “4.12.3 Displaying the
DisplayPort setting information.”
SUBTITLE
Display of images to be used
for the subtitles created by the
user
For details, refer to “6.13.10 Subtitle.”
HDMI ARC
Audio Return Channel data
display
For details, refer to “4.2.11 Audio Return
Channel.”
NAME/LIST
HDMI HEC
HDMI Ethernet Channel data
display
For details, refer to “4.2.12 HDMI Ethernet
Channel”.

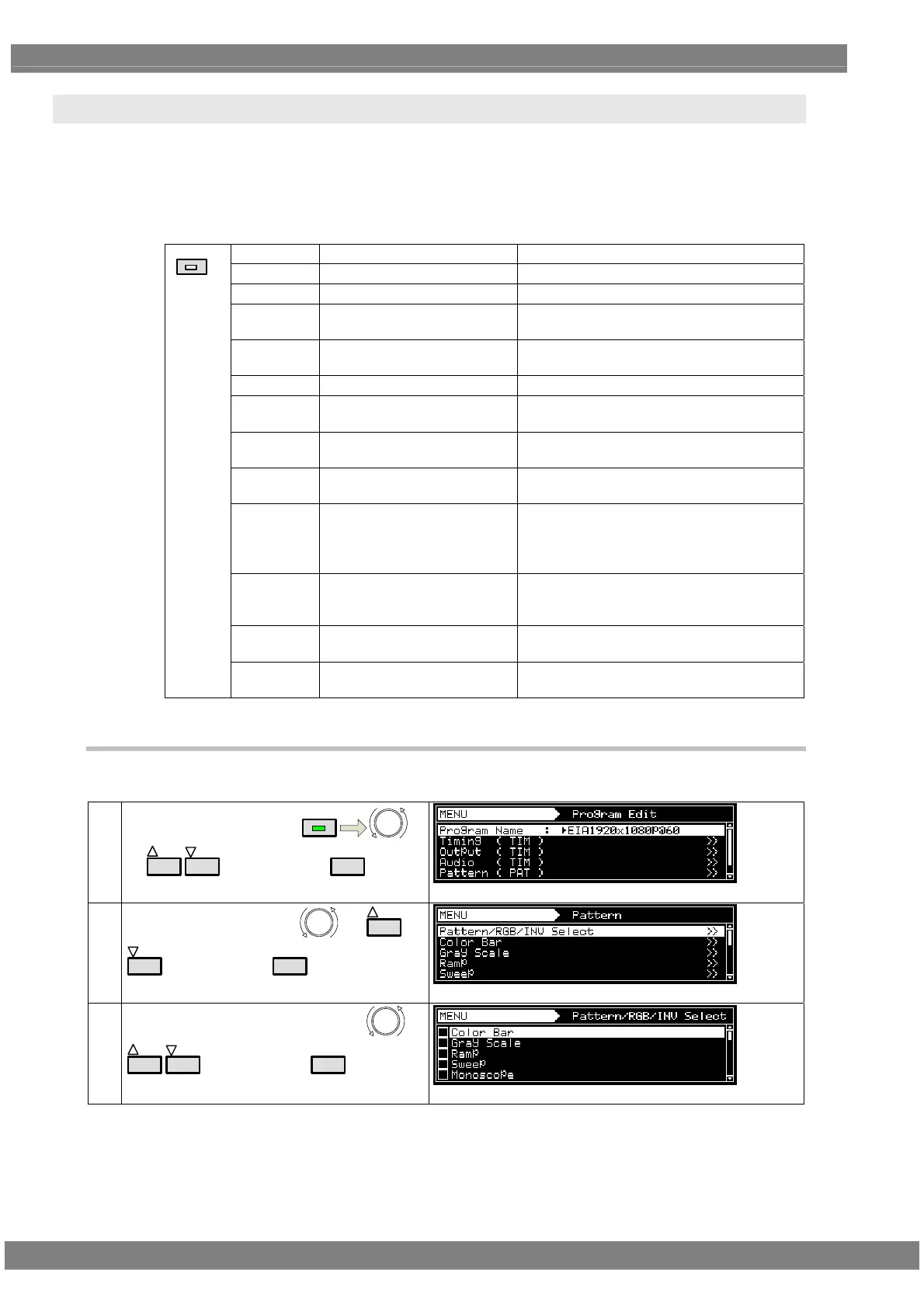

6.13.1 Name/List display
The Name/List functions can be selected by the operations described below.
(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Pattern (PAT) using
or
INC
DEC
, and then press
SET
.
(3)
Select Pattern/RGB/INV select using
or
INC
DEC
, and then press
SET
.
