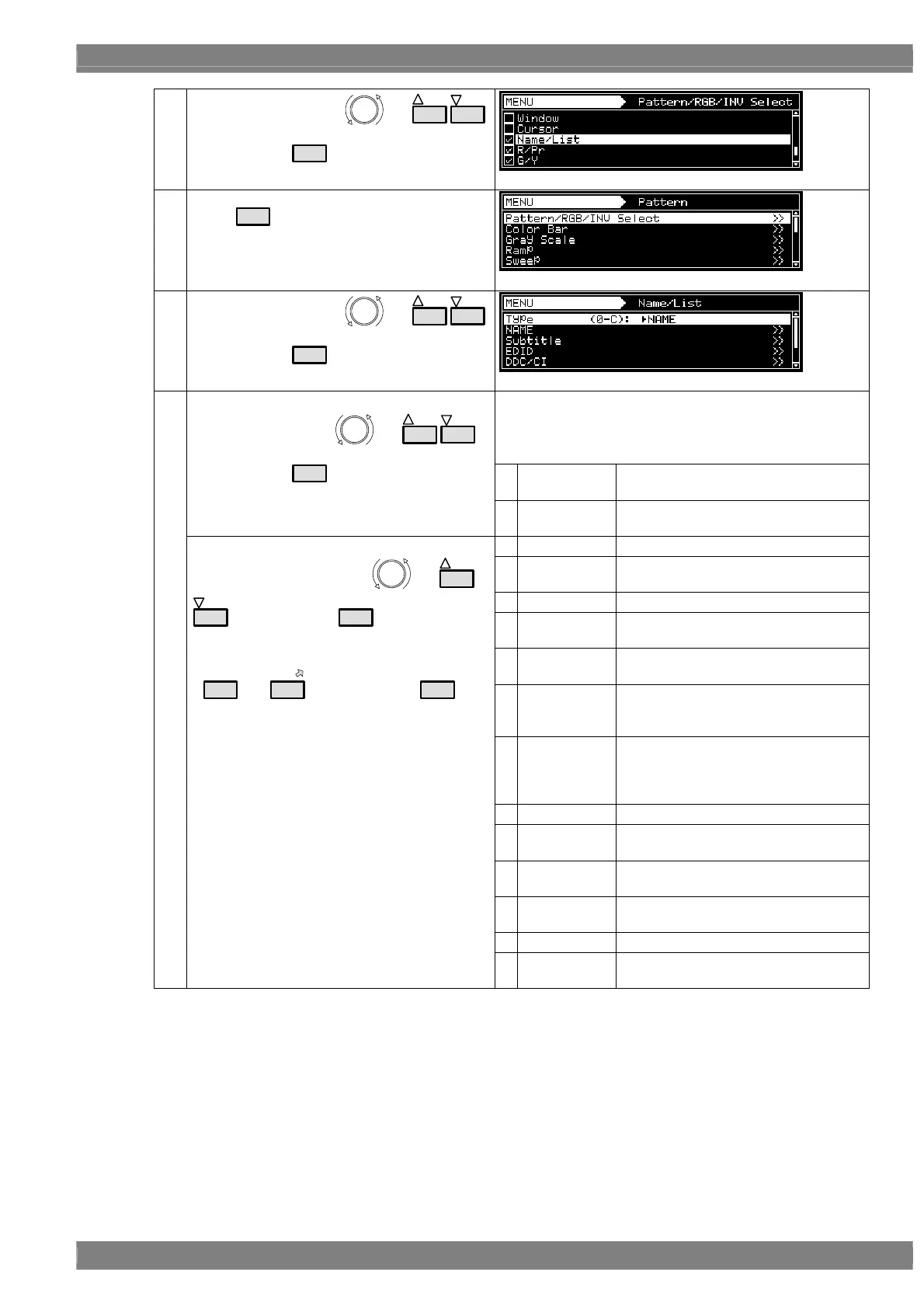

(4)
Select Name/List using
or
INC
DEC
,
and then press
SET
.
(5)
Press
ESC
.
(6)
Select Name/List using
or
INC
DEC
,
and then press
SET
.
The pattern to be displayed by Type is specified here.
Some patterns have detailed setting items.
<Type>
0
NAME
The names of the programs are
displayed.
<Selecting the items>
Select the items using
or
INC
DEC
,
and then press
SET
.
1
Subtitle
The images to be used for the subtitles
created by the user are displayed.
2
EDID
The EDID is displayed as text.
3
EDID (HEX)
The EDID is displayed in the
hexadecimal (HEX) format.
4
DDC/CI
DDC/CI is used.
5
HDCP
The HDCP authentication screen is
displayed.
6
Timing
A list of the timing data being output is
displayed.
7
Information of the image patterns
registered in the internal memory or on
the CF card is displayed.
8
OPT-USER
The names and sizes of the user
optional patterns registered in the
internal memory or on the CF card is
displayed.
9
CEC
The CEC execution list is displayed.
A
HDMI ARC
Audio Return Channel data is
displayed.
B
HDMI HEC
HDMI Ethernet Channel data is
displayed.
C
HDMI
A list of the HDMI-related data is
displayed.
D
DP
DPCD is displayed.
(7)
<Setting the parameters>
Select the parameters using or
INC
DEC
, and then press
SET
.
Alternatively:
Select the parameters using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
E
DP (HEX)
DPCD is displayed in the hexadecimal
(HEX) format.
