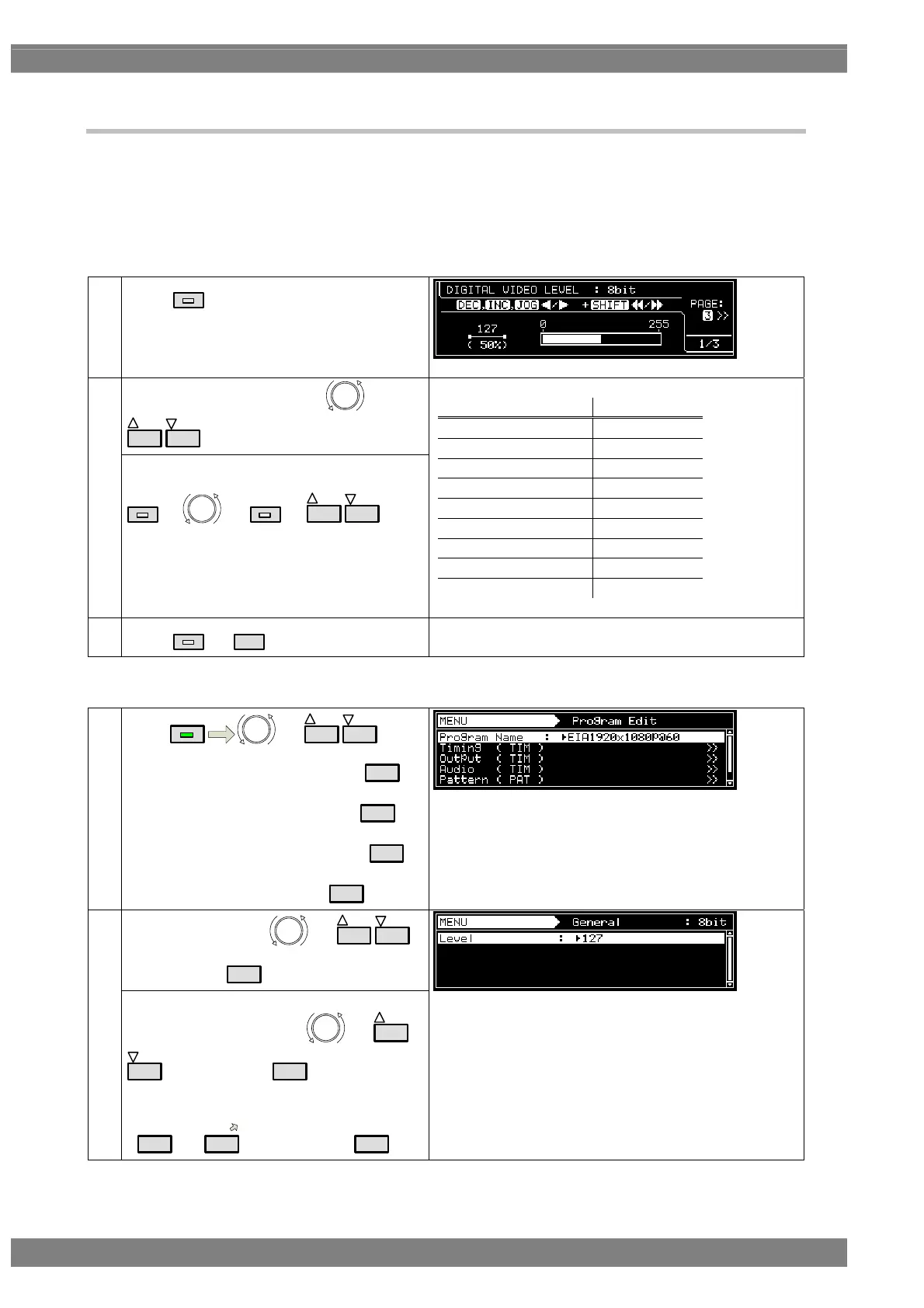

4.1.8 Setting the digital level
In this section, the digital level of the video signals is set.
For further details on setting the gray scale, refer to “4.1.5 Setting the bit length (gray scale) for pattern drawing.”
There are two ways to set the digital input level: One uses the LEVEL key screen, and the other is from Program
Edit.
<How to set the digital input level on the LEVEL key screen>
(1)
Select
LEVEL
, and then set the digital video
level.
Change the digital level using or
INC
DEC
.
(2)
<When increasing the setting speed>
Change the digital level (more quickly) using
SHIFT
+ or
SHIFT
+
INC
DEC
.
* The number of steps when increasing the
setting speed can be set by the operations
described in section “9.1.15 Digital Video
Level Step setting.”
Bit length (gray scale) Setting range
8BIT
0 - 255
9BIT
0 - 511
10BIT
0 - 1023
11BIT
0 - 2047
12BIT
0 - 4095
13BIT
0 - 8191
14BIT
0 - 16383
15BIT
0 - 32767
16BIT
0 - 65535
(3)
Select
LEVEL
or
ESC
.
Display returns to the initial screen.
<How to set the digital input level from Program Edit>
(1)
Using
MENU
or
INC
DEC
,
Select Program Edit, and then press
SET
.
Select Output (TIM), and then press
SET
.
Select Digital Output, and then press
SET
.
Select General, and then press
SET
.
Select the items using or
INC
DEC
,
and then press
SET
.
(2)
<Inputting the parameters>
Select the parameters using
or
INC
DEC
, and then press
SET
.
Alternatively:
Select the parameters using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
The setting ranges are the same as in the section “How to
set the digital input level on the LEVEL key screen.”
