182

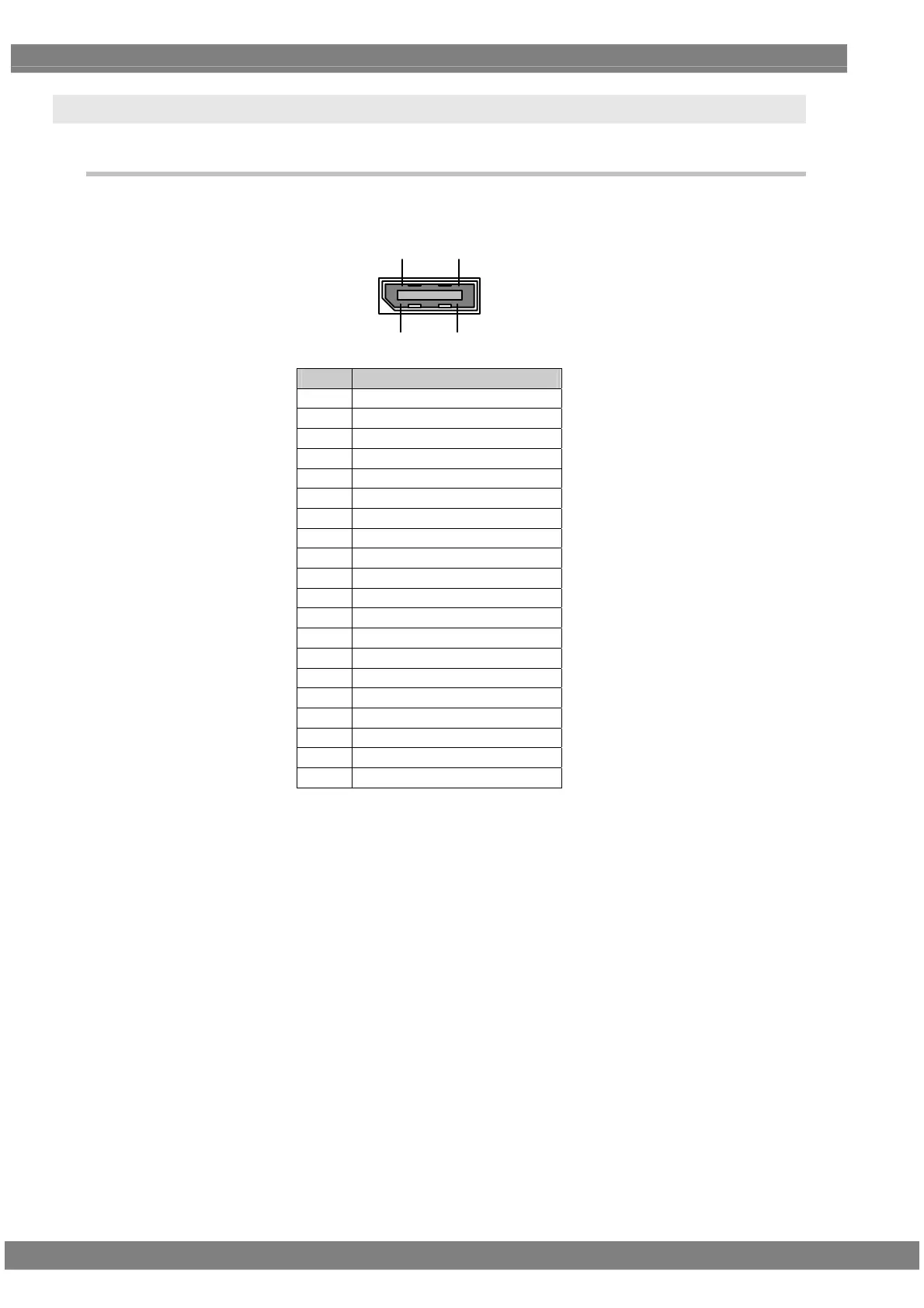

4.12 DisplayPort / eDP
4.12.1 Connectors and pin assignments
DisplayPort
119
20 2
Pin No. Signal
1 MainLink Lane0 (p)
2 GND
3 MainLink Lane0 (n)
4 MainLink Lane1 (p)
5 GND
6 MainLink Lane1 (n)
7 MainLink Lane2 (p)
8 GND
9 MainLink Lane2 (n)
10 MainLink Lane3 (p)
11 GND
12 MainLink Lane3 (n)
13 GND
14 GND
15 AUX CH (p)
16 GND
17 AUX CH (n)
18 Hot Plug Detect
19 PWR_Return (not used)
20 DP_PWR (+3.3 V)
* The DDC power supply current is limited. Refer to “12.3 Concerning the maximum current
consumption of the DDC (DP_PWR) power supply.”
