ASTRO VG Series User Manual

Chapter 6 PATTERN SETTINGS
329
6.9.6 Setting the 3D pattern (OPT No.101)
Sample optional pattern No.101 is a 3D pattern.
The requisite license is needed to display this pattern. For details, consult with an ASTRODESIGN sales
representative or your distributor.
The setting procedure is given below.
In addition to what is described below, the “HDMI  Vendor Specific InfoFrame” setting is referenced.
For details on how to display the pattern, refer to section “6.9.2 Option and image pattern setting.”
(Type=OPT-SAMPLE, No.101 specified)

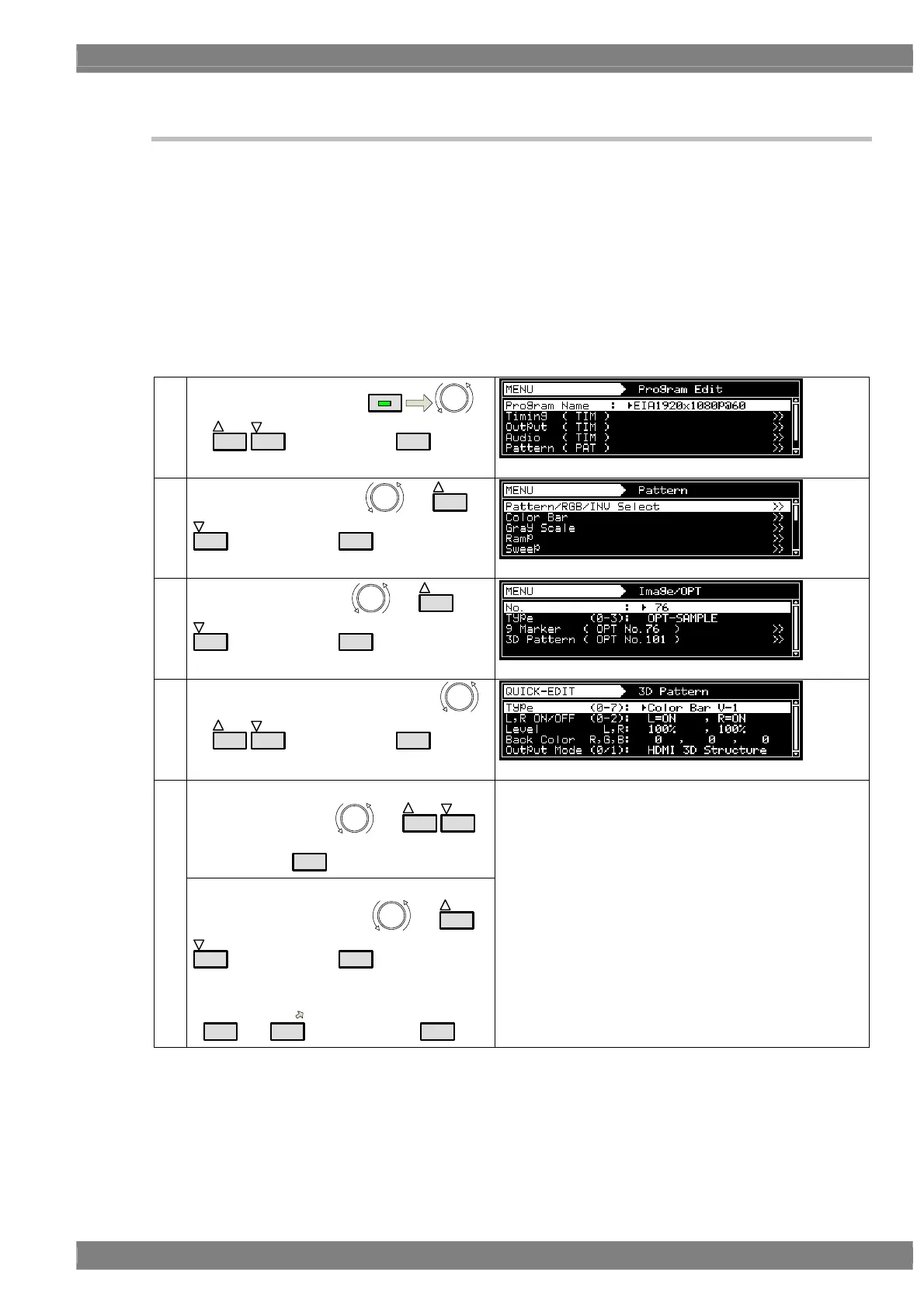

(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Pattern (PAT) using
or
INC
DEC
, and then press
SET
.
(3)
Select Image/OPT using
or
INC
DEC
, and then press
SET
.
(4)
Select 3D Pattern (OPT No.101) using
or
INC
DEC
, and then press
SET
.
<Selecting the items>
Select the items using
or
INC
DEC
,
and then press
SET
.
(5)
<Setting the parameters>
Select the parameters using
or
INC
DEC
, and then press
SET
.
Alternatively:
Select the parameters using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
For details of the parameters, refer to <List of 3D pattern
setting items>.
