ASTRO VG Series User Manual

194

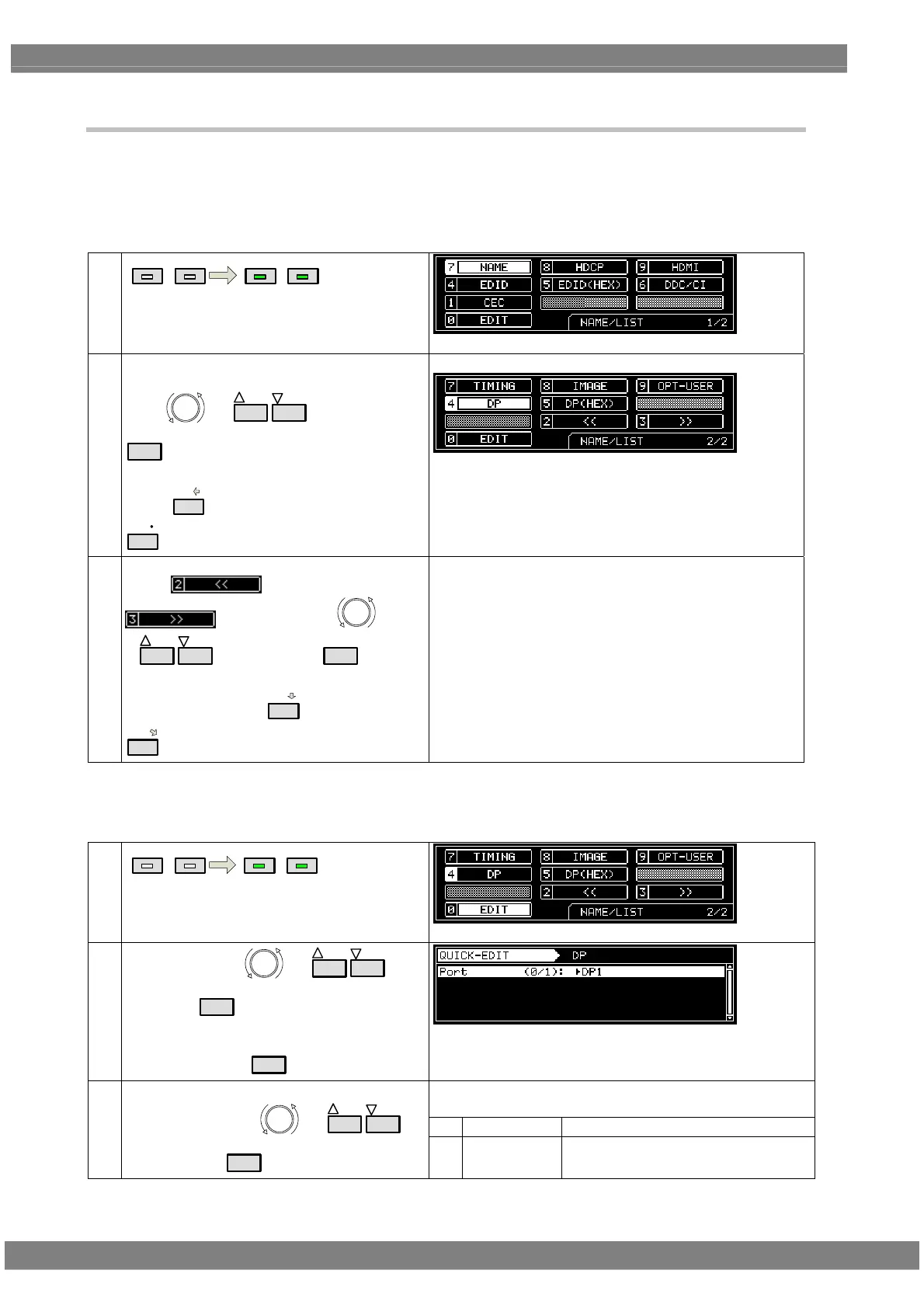

4.12.3 Displaying the DisplayPort setting information
The DisplayPort setting information (Link Rate, Number of Lane, Link training results, DPCD) can be
displayed.
a) DisplayPort setting display procedure
(1)
NAME/LIST
DETAIL
NAME/LIST
DETAIL
(2)
< Displaying DP >
Select DP or DP(HEX) on the second page
using
or
INC
DEC
, and then press
SET
.
Alternatively:
Select
4/A
for the GUI display format, or
5/B
for the HEX display format.
DP is displayed as shown in the figure below.
DP: Setting display information, DPCD (GUI display
format)
DP(HEX): DPCD (HEX display format)
For further details, refer to “c) Display contents.”
(3)
<Switching the pages>
Select
(previous page) or
(next page) using
or
INC
DEC
, and then press
SET
.
Alternatively:
Select the page using
2
(previous page) or
3
(next page).
When the display extends over multiple pages, it is divided
up and shown on the fluorescent display tube. (Switch the
page to display all the information.)
b) Selecting the port whose result is displayed
Select the port for which the setting information is to be displayed.
(1)
NAME/LIST
DETAIL
NAME/LIST
DETAIL
Select either DP or DP(HEX).
(2)
Select EDIT using
or
INC
DEC
, and
then press
SET
.
Alternatively:
Select EDIT using
0/STATUS
.
This selects the port for which the DisplayPort setting
information is to be displayed.
0
DP1
This selects DisplayPort1.
(3)
<Selecting the port>
Select the port using
or
INC
DEC
,
and then press
SET
.
1
DP2
This selects DisplayPort2.
