ASTRO VG Series User Manual

458

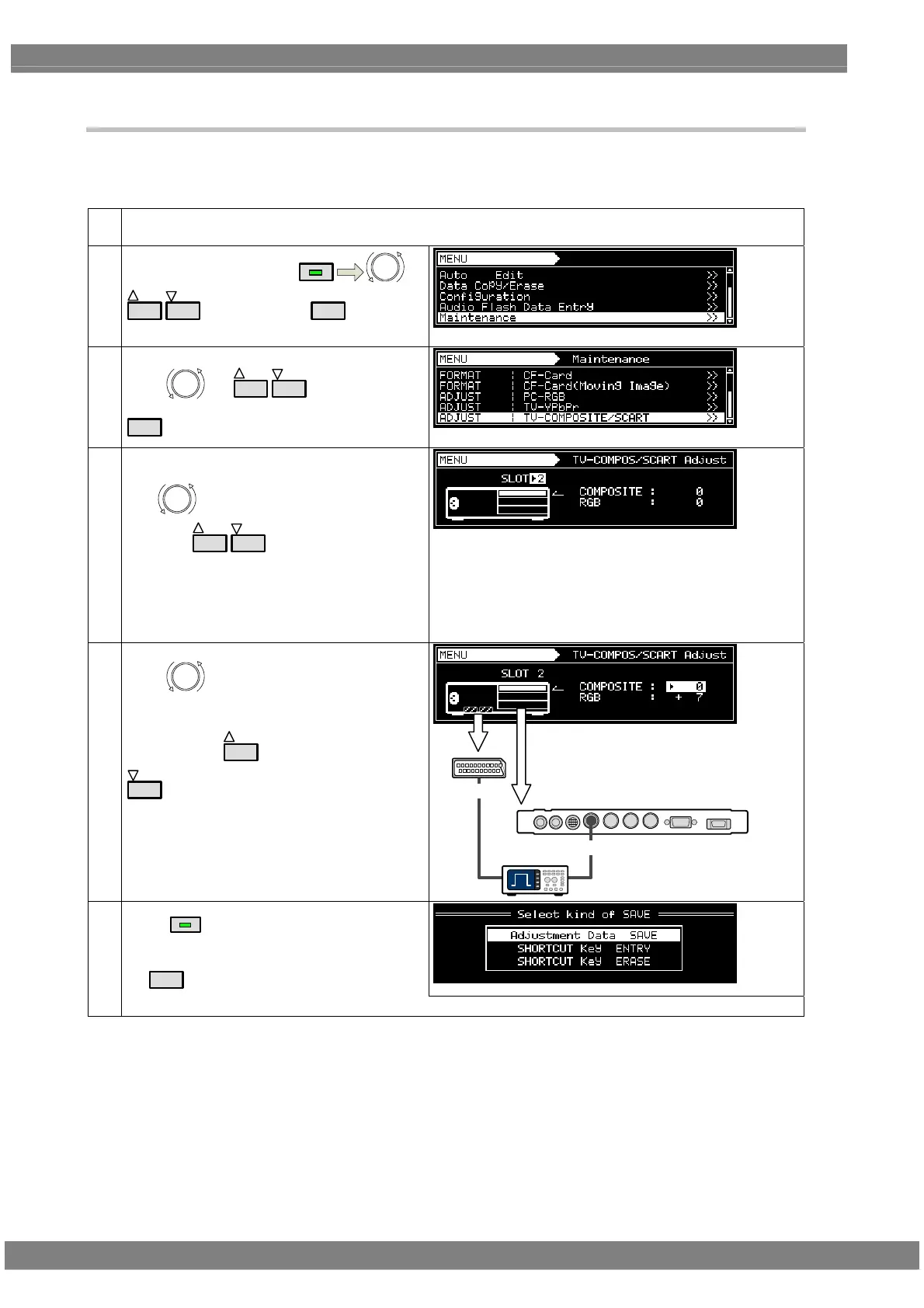

10.6.3 Adjusting the COMPOSITE/SCART video levels of the TV encoder unit
The COMPOSITE/SCART video levels of the TV encoder unit will be adjusted in this section.
After adjusting the levels, save the data.
(1)  Display the raster ‘white’ pattern (No.1121) using any timing data (NTSC, PAL, SECAM, etc.).
 Check that the digital levels are the maximum values. (Refer to “4.1.8 Setting the digital level.”)
(2)
Select Maintenance using
MENU
or
INC
DEC
, and then press
SET
.
(3) Select ADJUST: TV-COMPOSITE/SCART
using
or
INC
DEC
, and then press
SET
.
(4) <When there is a multiple number of TV
encoder units>
Use
to select “SLOT.”
Then use
INC
DEC
to select the number of
the slot which contains the unit whose levels are
to be adjusted.
* Only SLOT ‘2’ is used for SCART.
* For the standard timing data values, refer to
“11.3.5 Tables of standard signals.”
↑
Display representing generator’s rear panel
(5) Select “COMPOSITE” or “RGB (SCART)”
using
.
Then, while monitoring the actual level on an
oscilloscope or other measuring device, adjust
the level using
INC
(to increase the level) or
DEC
(to reduce the level).
TVエンコーダユニット
SCART 1 or 2
R or G or B
オシロスコープ
COMPOSITE
(6)
Press
SAVE
.
Then select “Adjustment Data SAVE” followed
by
SET
.
After ‘Save Completed’ has appeared, operation returns to the screen in step (5).
Oscilloscope
TV encoder unit
