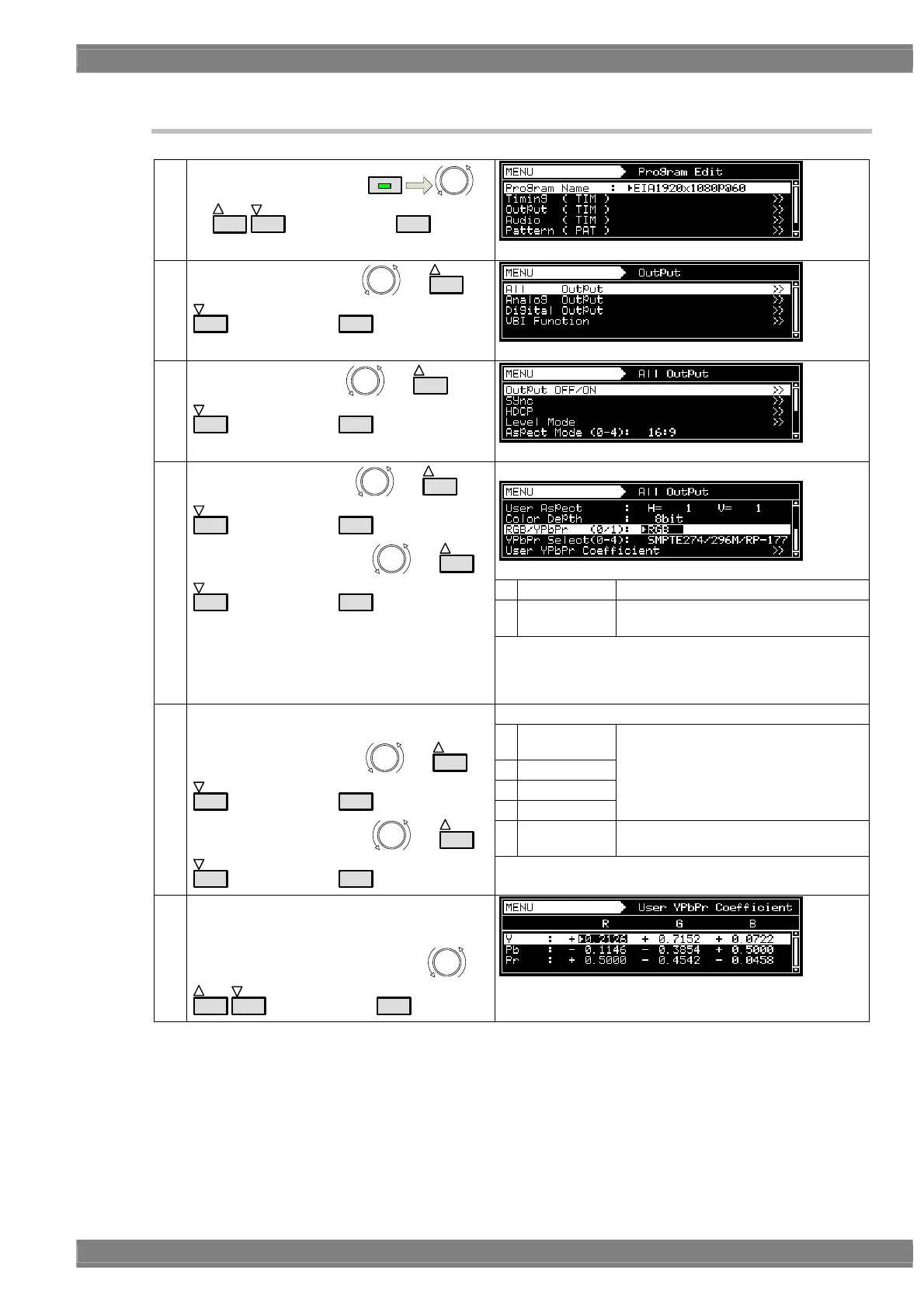

4.1.6 Selecting RGB or YPbPr and setting the color difference coefficients
(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Output (TIM) using
or
INC
DEC
, and then press
SET
.
(3)
Select All Output using
or
INC
DEC
, and then press
SET
.
Select the color difference coefficients (YPbPr) or RGB.
0
RGB
The signals are output as RGB signals.
1
YPbPr
The signals are output as YPbPr
signals.
(4)
Select RGB/YPbPr using
or
INC
DEC
, and then press
SET
.
Select the parameters using
or
INC
DEC
, and then press
SET
.
* The RGB or YPbPr signals of the HDMI unit cannot be
changed using this menu. For further details on how to
change these signals, refer to “4.2.2 HDMI setting
procedure”
Select the color difference coefficients.
0 SMPTE274M/
296M/RP-177
1
SMPTE-240M
2
SMPTE-293M
3
SMPTE-125M
The color difference coefficients of one
of the standards on the left are set.
4
User
The coefficients of the user’s choice are
set.
(5)
When YPbPr was selected in step (4), select the
color difference coefficients.
Select YPbPr Select using
or
INC
DEC
, and then press
SET
.
Select the parameters using
or
INC
DEC
, and then press
SET
.
(6) If YPbPr was selected in step (4) and User in
step (5), users can set the coefficient of their
own choice.
Select UserYPbPr Coefficient using
or
INC
DEC
, and then press
SET
.
