ASTRO VG Series User Manual

15
2
2
OPERATION PROCEDURES
2.1 Flow of basic operations
2.1.1 Settings required for displays

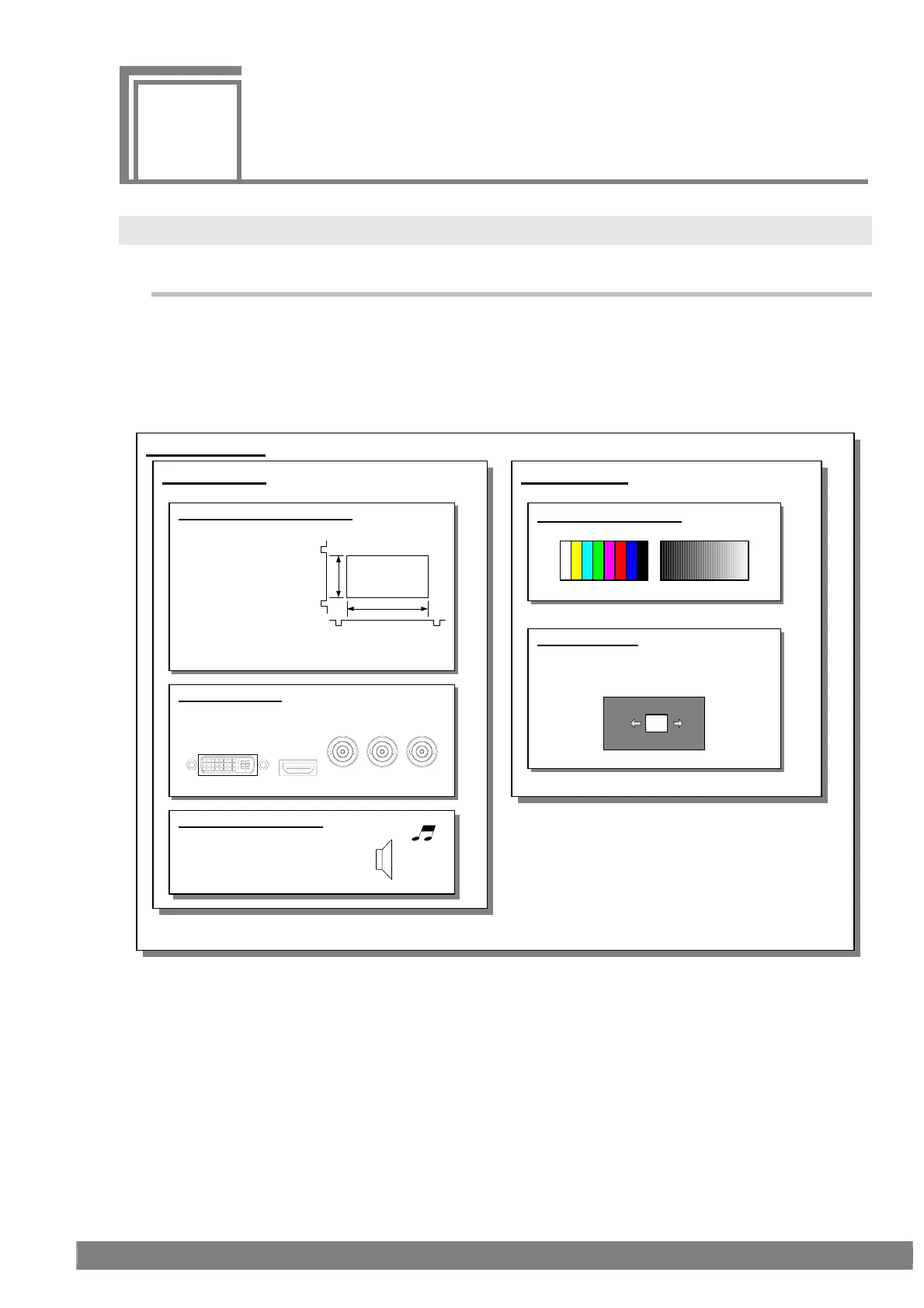

The timing data and pattern data must be set in order for the test patterns to be displayed from the
generator. The following items are set for these data.
In the case of this generator, the timing data and pattern data are collectively referred to as the
“program data.”
Program data
Timing data
V
ideo timing data settings
- Horizontal timing
- Vertical timing
Audio output settings
- Sound source, level
- Frequency
- On or off of channels
Output settings
- On or off for each interface
- Settings inherent to interfaces
DVI-D 1
PYP BR
Pattern data
Patter data settings
- Type, size, level and other settings
A
ction settings
- Scroll
- Flicker
- Level sweep
Video
V-SYNC
H-SYNC
