ASTRO VG Series User Manual

468

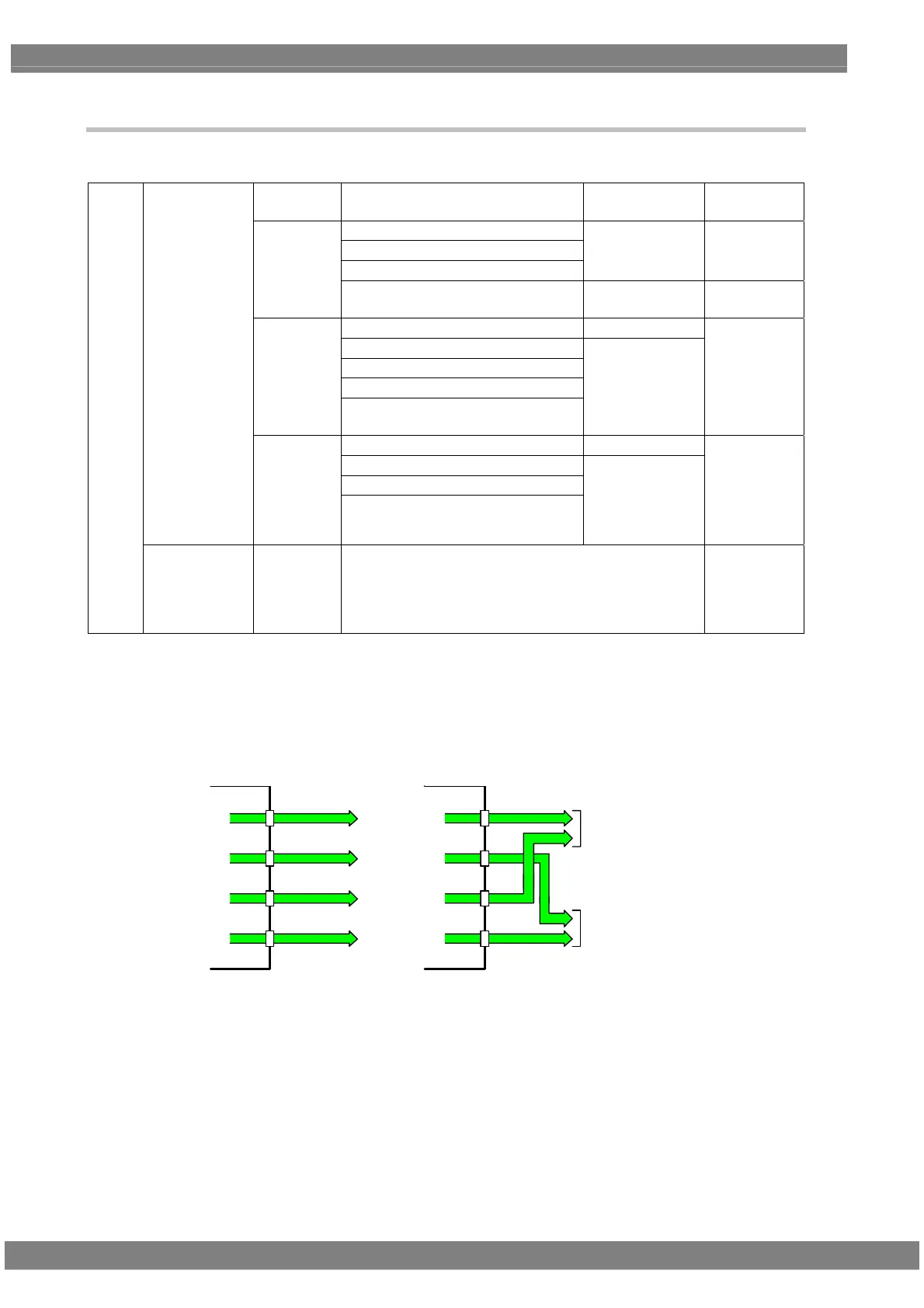

11.1.12 SDI unit (VM-1821)
The SDI outputs take effect only with the timings are rated below.
SD-SDI NTSC
PAL
YCbCr:422 10bit SMPTE-259M
1920x1080p 30/29.97/25/24/23.98
1920x1080psf 30/29.97/25/24/23.98
1920x1080i 60/59.94/50
YCbCr:422 10bit SMPTE-274M
HD-SDI
1280x720p 60/59.94/50
30/29.97/25/24/23.98
YCbCr:422 10bit SMPTE-296M
1920x1080p 60/59.94/50 YCbCr:422 10bit
1920x1080p 30/29.97/25/24/23.98
1920x1080psf 30/29.97/25/24/23.98
1920x1080i 60/59.94/50
3G-SDI
(LEVEL A/B)
1280x720p 60/59.94/50
30/29.97/25
YCbCr:422 12bit
YCbCr:444 10bit
YCbCr:444 12bit
RGB 10bit
RGB 12bit
SMPTE-425M
1920x1080p 60/59.94/50 YCbCr:422 10bit
1920x1080p 30/29.97/25/24/23.98
1920x1080psf 30/29.97/25/24/23.98
Formats
supported
Dual-Link
1920x1080i 60/59.94/50
YCbCr:422 12bit
YCbCr:444 10bit
YCbCr:444 12bit
RGB 10bit
RGB 12bit
SMPTE-372M
SDI1
SDI2
SDI3
SDI4
Audio output L-PCM Number of channels: 8
Sampling frequency: 48 kHz
Output frequency: 100 to (one-half of sampling
frequency) Hz
No. of bits: 16, 20 or 24 bits
*1 The SDI outputs are as shown below.
(1) SD/HD/3G-SDI
The signals are distributed from OUT1, OUT2, OUT3 and OUT4, and output.
(2) Dual-Link
The signals are output from OUT1 and OUT3 as one pair and OUT2 and OUT4 as another pair (to form two
distributed outputs).
OUT1
OUT2
OUT3
OUT4
SDI1
SDI2
SDI3
SDI4
OUT1
OUT2
OUT3
OUT4
Dual-SDI1
Dual-SDI2
SD / HD / 3G -SDI出力 Dual-Link 出力
SD, HD, 3G-SDI output Dual Link output
