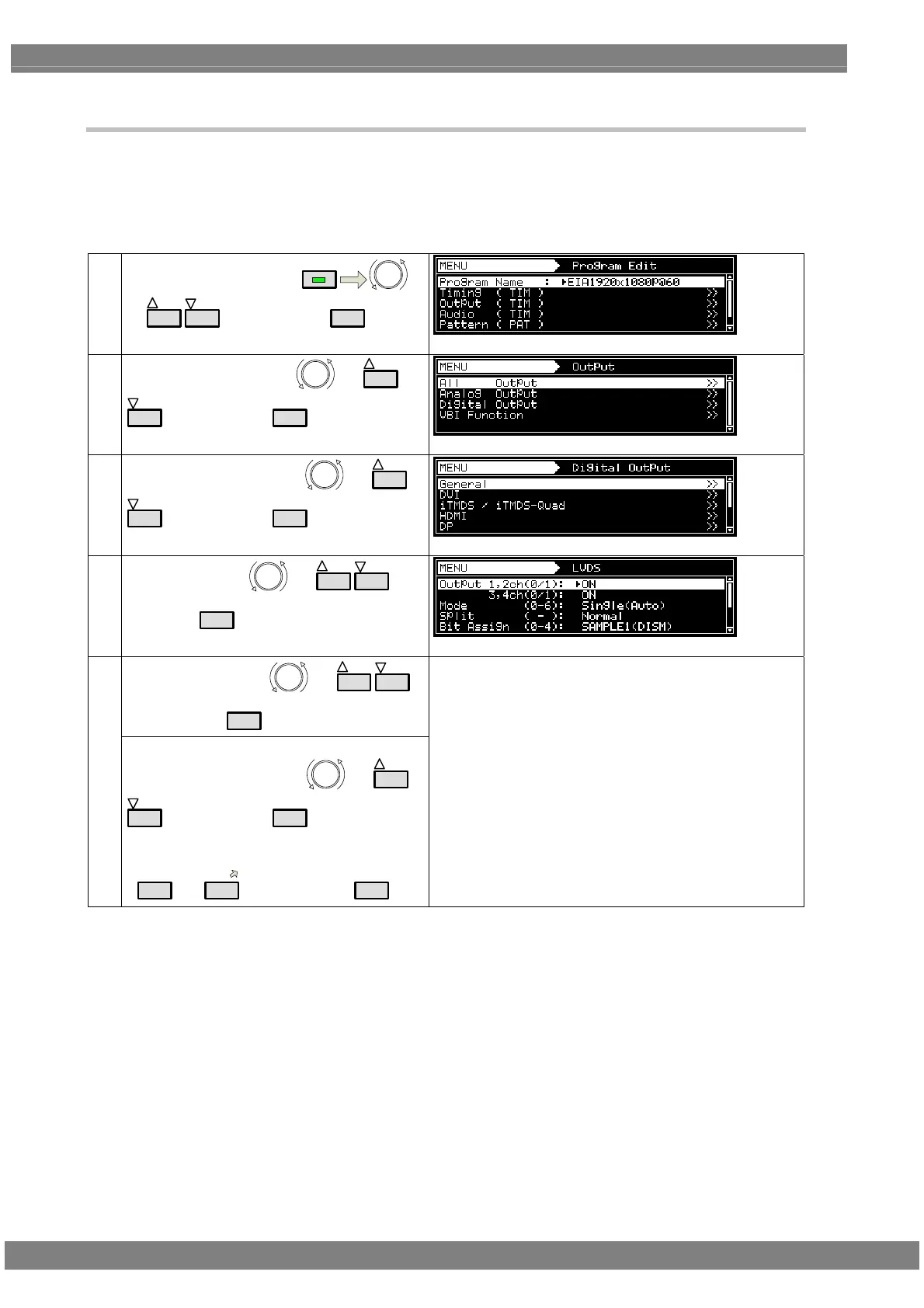

4.5.2 LVDS setting procedure
Some LVDS settings are established for each set of program data, and other LVDS settings are based
on the device settings.
 Settings established for each set of program data
(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Output (TIM) using
or
INC
DEC
, and then press
SET
.
(3)
Select Digital Output using
or
INC
DEC
, and then press
SET
.
(4)
Select LVDS using
or
INC
DEC
, and
then press
SET
.
Select the items using or
INC
DEC
,
and then press
SET
.
(5)
<Inputting the parameters>
Select the parameters using or
INC
DEC
, and then press
SET
.
Alternatively:
Select the parameters using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
For further details on the parameters, refer to the table
below.
