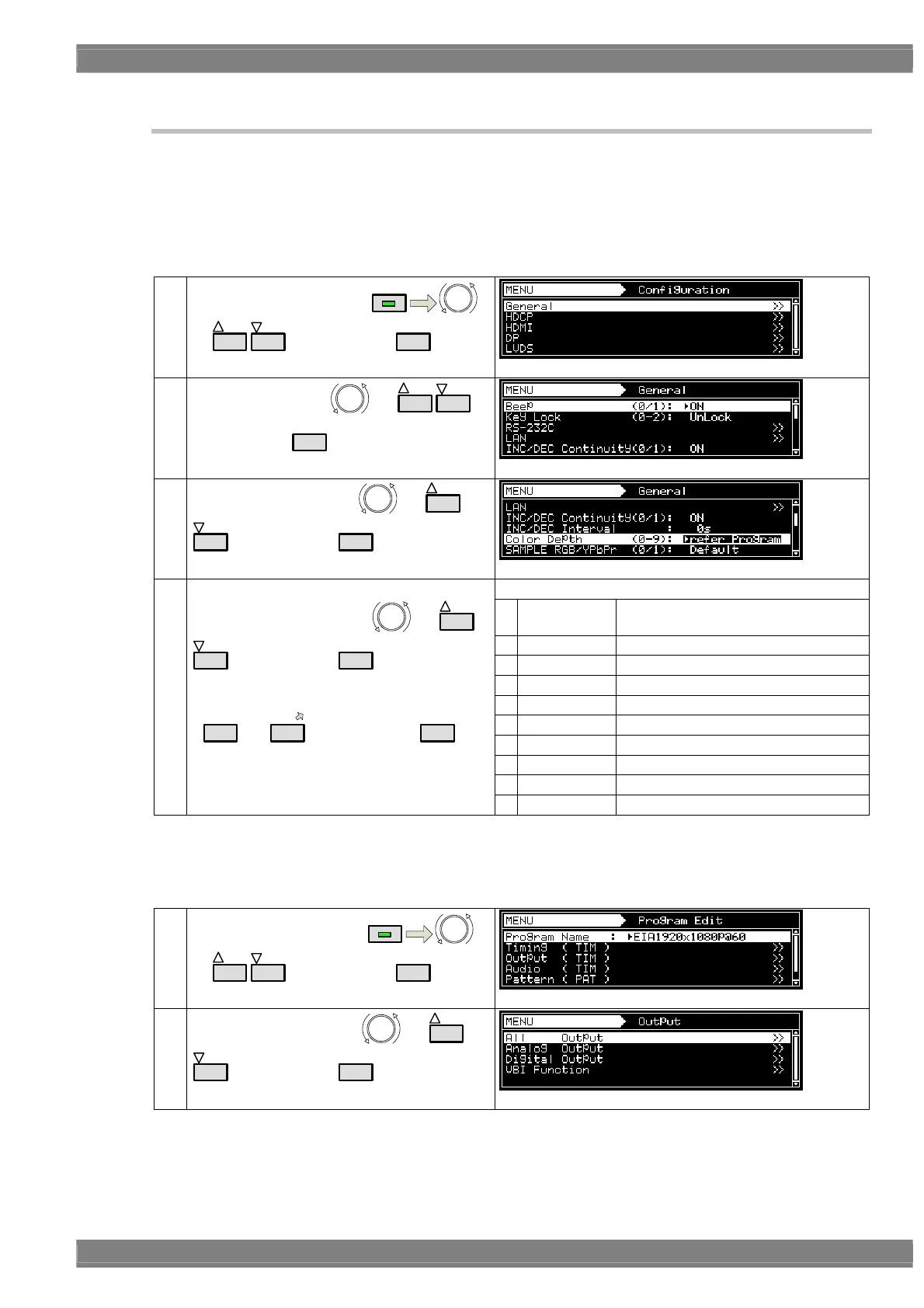

4.1.5 Setting the bit length (gray scale) for pattern drawing
The bit length (gray scale) applying when drawing test patterns can be set.
It can either be set either separately for each program or it can be fixed irrespective of the programs.
a) The same specific bit length is designated.
b) The bit length is set for each program.
a) Designating the same specific bit length
(1)
Select Configuration using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select General using
or
INC
DEC
,
and then press
SET
.
(3)
Select Color Depth using
or
INC
DEC
, and then press
SET
.
Select the bit length.
0
Refer to
Program
The setting matches the program
setting.
1 8 Bit The patterns are drawn with 8 bits.
2 9 Bit The patterns are drawn with 9 bits.
3 10 Bit The patterns are drawn with 10 bits.
4 11 Bit The patterns are drawn with 11 bits.
5 12 Bit The patterns are drawn with 12 bits.
6 13 Bit The patterns are drawn with 13 bits.
7 14 Bit The patterns are drawn with 14 bits.
8 15 Bit The patterns are drawn with 15 bits.
(4)
<Inputting the parameters>
Select the parameters using
or
INC
DEC
, and then press
SET
.
Alternatively:
Select the parameters using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
9 16 Bit The patterns are drawn with 16 bits.
b) Setting the bit length for each program
This setting takes effect when “Refer to Program” has been selected for the setting in (3) of “Designating the
same specific bit length” in a) above.
(1)
Select Program Edit using
MENU
or
INC
DEC
, and then press
SET
.
(2)
Select Output (TIM) using
or
INC
DEC
, and then press
SET
.
