Chapter 1 CONCERNING THE VG-870B/871B
13

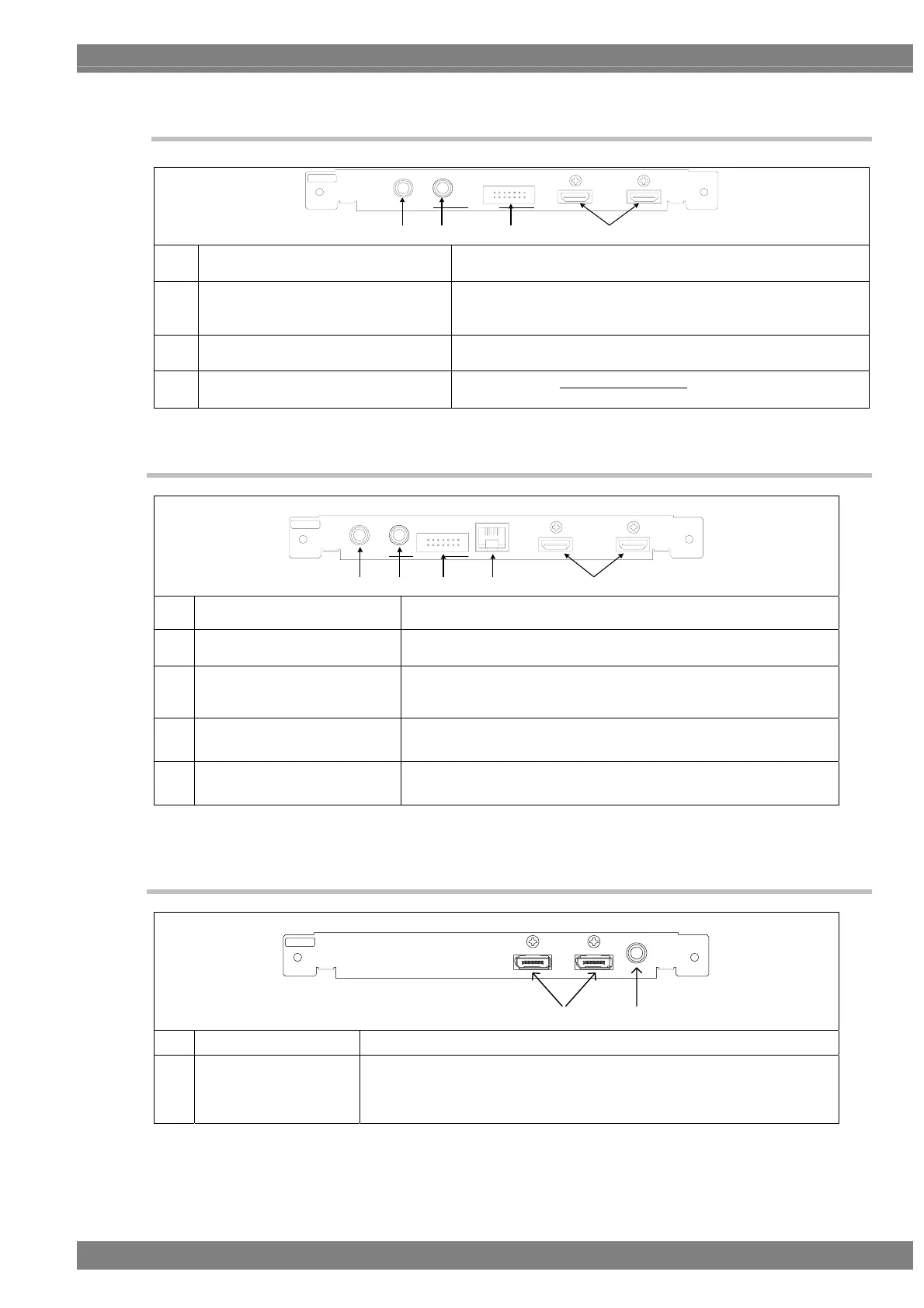

1.5.12 HDMI (3D, ARC) unit (VM-1822)
I S
2
HDMI
HDMI
AUDIO IN
OUT 2
HDMI
OUT 1
COAXCOAX OUT
(29)(30)(31)(32)
(29) HDMI output connectors
The same images and sound can be output simultaneously from
these two connectors. (HDMI connectors)
(30) I2S digital audio input connector The I2S digital audio signals can be supplied here.
The audio signals which have been input to this connector can be
output as the embedded audio in the HDMI output. (Option)
(31) COAX digital audio input connector
The signals supplied here can be output to the monitor as the
HDMI embedded audio.
(32) COAX digital audio output connector
(ARC only)
The sound input by the ARC function
of HDMI is output from this
connector as it is.
1.5.13 HDMI 300MHz Unit (VM-1823)
I S
2
HDMI
HDMI
OUT 2
HDMI
OUT 1
COAXCOAX OUT
AUDIO IN
LAN
(33)(35)(36)(37) (34)
(33) HDMI Output
The same images and sound can be output simultaneously from
these two connectors. (HDMI connectors)
(34) LAN
When using HEC function, the Ethernet that is input from VG is
thoroughly output.
(35)
I2S digital audio input
connector
The I2S digital audio signals can be supplied here.
The audio signals which have been input to this connector can be
output as the embedded audio in the HDMI output. (Option)
(36)
COAX digital audio input
connector
The signals supplied here can be output to the monitor as the HDMI
embedded audio.
(37)
COAX digital audio output
connector (ARC only)
The sound input by the ARC function of HDMI is output from this
connector as it is.
1.5.14 DisplayPort Unit (VM-1820A)
DP
DISPL AY PO RT 2
COAX IN
DISPL AY PO RT 1
(38) (39)
(38) DisplayPort Output
Outputs 2 channels simultaneously and split-drawing is available.
(39)
COAX digital audio
input
This connector enables digital audio data to be input using a coaxial
connection.
Digital audio data can be output to the monitor as the embedded audio data
of the DisplayPort output.
