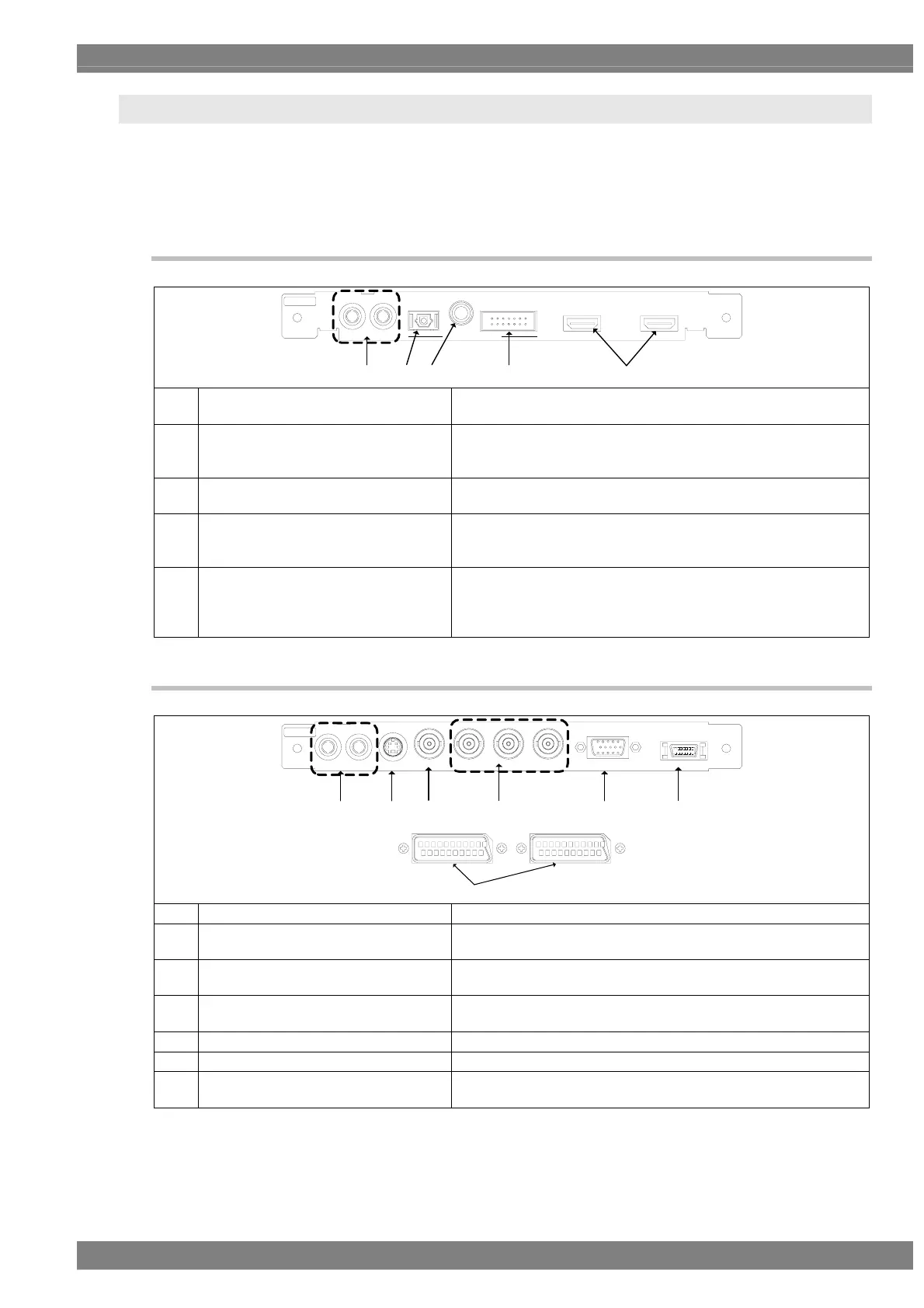

1.5 VG-870B/871B/873/874 video units
The VG-870B/871B/873/874 is constructed to allow video interface units to be installed. Video interface
signals are output from these units. Up to three units can be installed.
* When one or more video units are to be replaced, please contact ASTRODESIGN.
1.5.1 HDMI unit (VM-1817)
HDMI 2
DIGITAL AUDIO IN
OPTICAL
COAXIAL
HDMI 1
LR
I S
2
ANALOG AUDIO IN
HDMI
(1)(2)(3)(4)(5)
(1) HDMI output connectors
The same images are output simultaneously to two systems.
(HDMI connectors)
(2) I2S digital audio input connector The I2S digital audio signals can be supplied here.
The audio signals which have been input to this connector can be
output as the embedded audio in the HDMI output. (Option)
(3) COAX digital audio input connector
The signals supplied here can be output to the monitor as the
HDMI embedded audio.
(4) TOSLINK digital audio input connector Digital audio signals can be input using an optical connection.
The signals input here can be output to the monitor as the HDMI
embedded audio.
(5) Analog audio input connectors
Analog audio signals (L/R) can be supplied here. (RCA
connectors)
The signals supplied here can be output to the monitor as the
HDMI embedded audio.
1.5.2 TV encoder unit (VM-1812)
VGA D5
Y/C
LR
PYPCOMPOSITE
BR
ANALOG AUDIO OUT
TV
(8)(9)(10)(11)(12)(13)
SC ART 2 SC ART 1
(14)
(8) D5 output connector Analog component signals can be output here. (D5 connector)
(9) VGA output connector
The analog component signals (RGB) and H/V separate sync
signals can be output here. (Shrink Dsub 15-pin connector)
(10) Analog component output connectors
YPbPr analog component signals can be output here. (BNC
connectors)
(11) Composite output connector
NTSC, PAL or SECAM composite (VBS) signals can be output
here. (BNC connector)
(12) Y/C output connector The Y/C signals can be output here (S connector)
(13) Analog audio output connectors Analog audio signals (L/R) can be output here. (RCA connectors)
(14) SCARToutput connector
NTSC, PAL or SECAM composite (VBS) signals, Y/C signals and
analog component signals (RGBHV) signals can be output here.
