ASTRO VG Series User Manual

544
12.2.6 Parallel unit (VM-1816)
The dot clock frequency is restricted by the pattern drawing bit length (Color Depth) shown in the figures
below. Data skipping occurs when the output video bit length (Video Width) at this time is less than the
pattern drawing bit length (Color Depth).
Color Depth > Mode の場合、データが切り捨てられています 。
Color Depth < Mode の場合、データ”0"が付加されています。
8Bit
9、10Bit
11、12Bit
13、14Bit
15、16Bit
Color Depth：
Mode:
250MHz0.1MHz 340MHz200MHz100MHz 300MHz
0.1M 100M
Single(8Bit)、(16Bit)
DotCLK
0.1M
0.1M
0.1M
0.1M
100M
100M
100M
100M

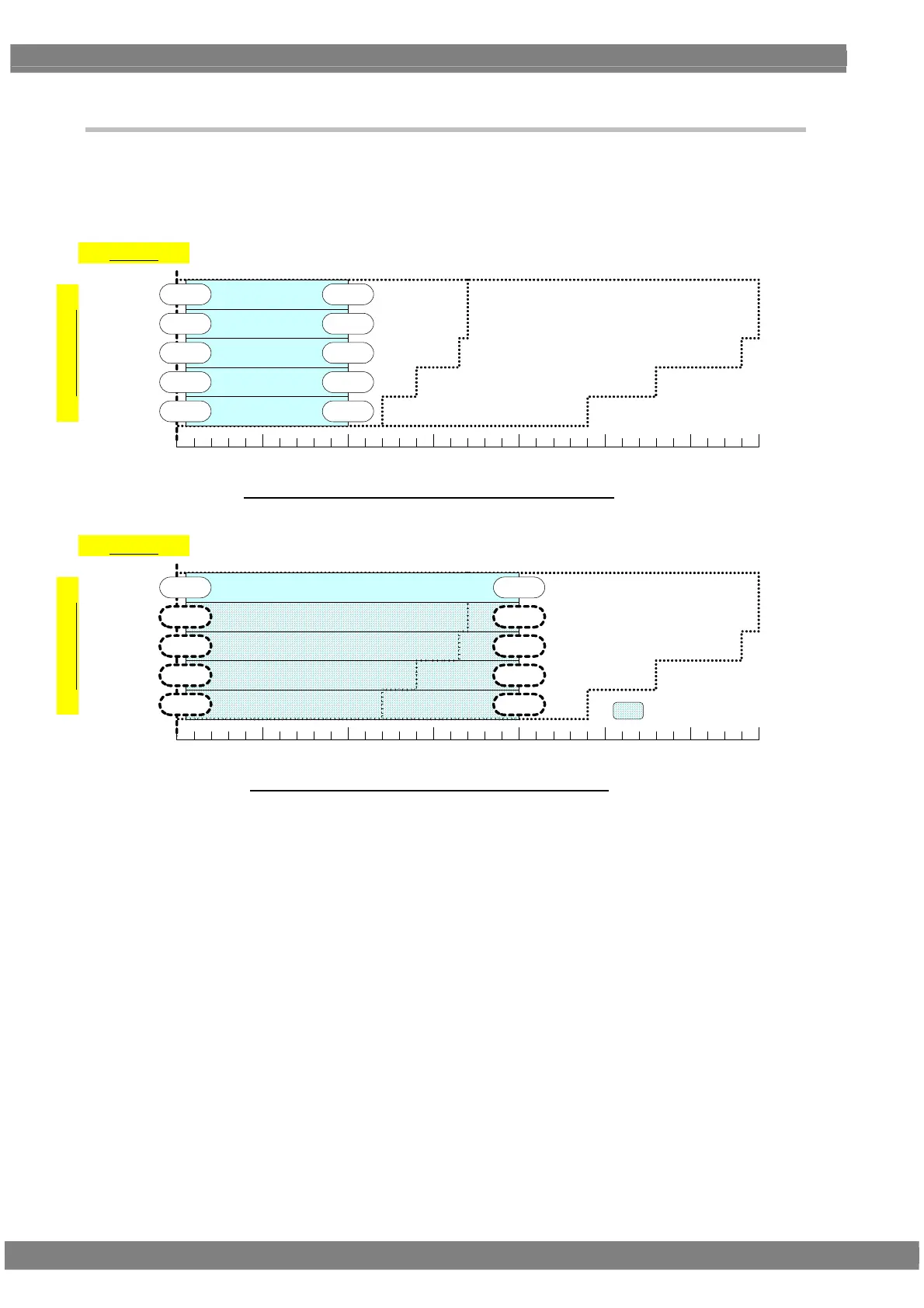

Restriction on parallel (Single Link) dot clock frequency
Color Depth > Mode の場合、データが切り捨てられています 。
Color Depth < Mode の場合、データ”0"が付加されています。
データが切り捨てられています
8Bit
9、10Bit
11、12Bit
13、14Bit
15、16Bit
Color Depth：
Mode:
250MHz0.1MHz 340MHz200MHz100MHz 300MHz
0.2M
0.2M 200M
Dual(8Bit)
DotCLK
200M
0.2M
0.2M
0.2M
200M
200M
200M
Restriction on parallel (Dual Link) dot clock frequency
For details on the pattern drawing bit length (Color Depth), refer to “4.1.5 Setting the bit length (gray
scale) for pattern drawing.”
For details on the output video bit length (Mode), refer to “4.6.2 Parallel data setting procedure.”
When Color Depth > Mode, the data is rounded off.
When Color Depth < Mode, data “0” is added.
When Color Depth > Mode, the data is rounded off.
When Color Depth < Mode, data “0” is added.
The data in is rounded off.
