ASTRO VG Series User Manual

29
3
3

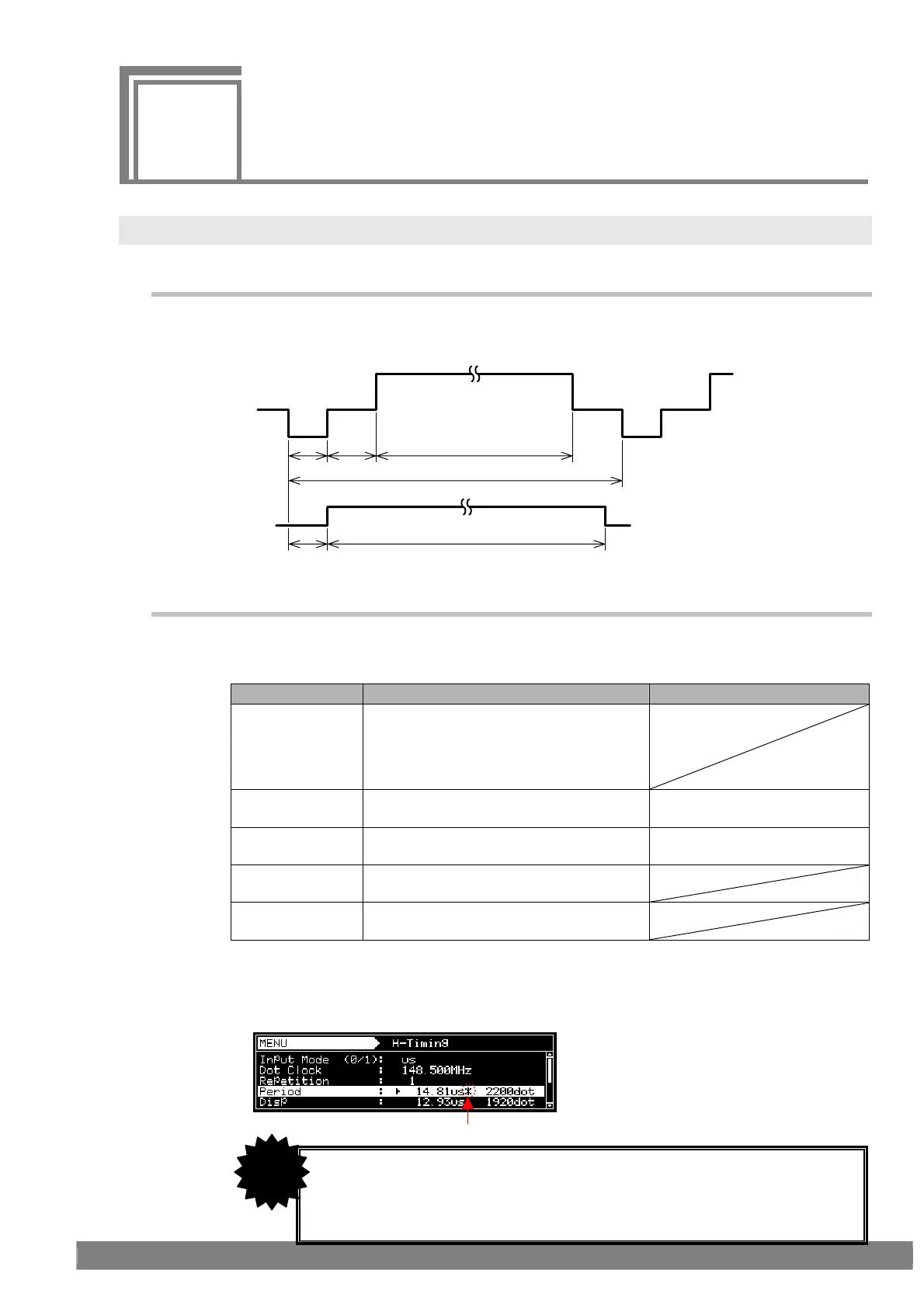

TIMING DATA SETTINGS
3.1 Horizontal timing data editing
3.1.1 Horizontal timing data
When making changes with the horizontal timing data, the parameters which can be set and the names
of the parameters are indicated below.
DispBackpSync
Period
HDstart HDwidth
3.1.2 Restrictions on the horizontal timing parameters
The table below shows the restrictions on the parameters which can be changed with the horizontal
timing data.
Setting item
Setting range Parameter fixing function
Dot Clock
0.100 to 1360.000 MHz
* Depending on the number of bits which
are output, the dot clock frequency is
subject to some restrictions. For details,
refer to “11.1.1 Common specifications.”
Period
Time display: 0.00 to 999.999 µs
Dot display: 128 to 8192 dots
µs setting fixed using SHIFT+2
dot setting fixed using SHIFT+3
Disp
Time display: 0.00 to 999.999 µs
Dot display: 48 to 4096 dot
µs setting fixed using SHIFT+0
dot setting fixed using SHIFT+1
Backp, Sync
Time display: 0.00 to 999.999 µs
Dot display: 0 to 8192 dot
HDstart, HDwidth
Time display: 0.00 to 999.999 µs
Dot display: 0 to 8190 dot
* When a parameter is fixed, it is accompanied by an asterisk (*). Even when values other than ones
for parameters with an asterisk have been changed, the values of the parameters with the asterisks
remain fixed.
Example: When us setting has been fixed using SHIFT+2 for Period
A
n asterisk is displayed here when the value is fixed.
When items are set in microseconds (µs), restrictions
apply to these settings depending on the dot clock
frequency and other timing data used for drawing.
CAUTION
