216
4.13
V
-by-One HS (VM-1825)

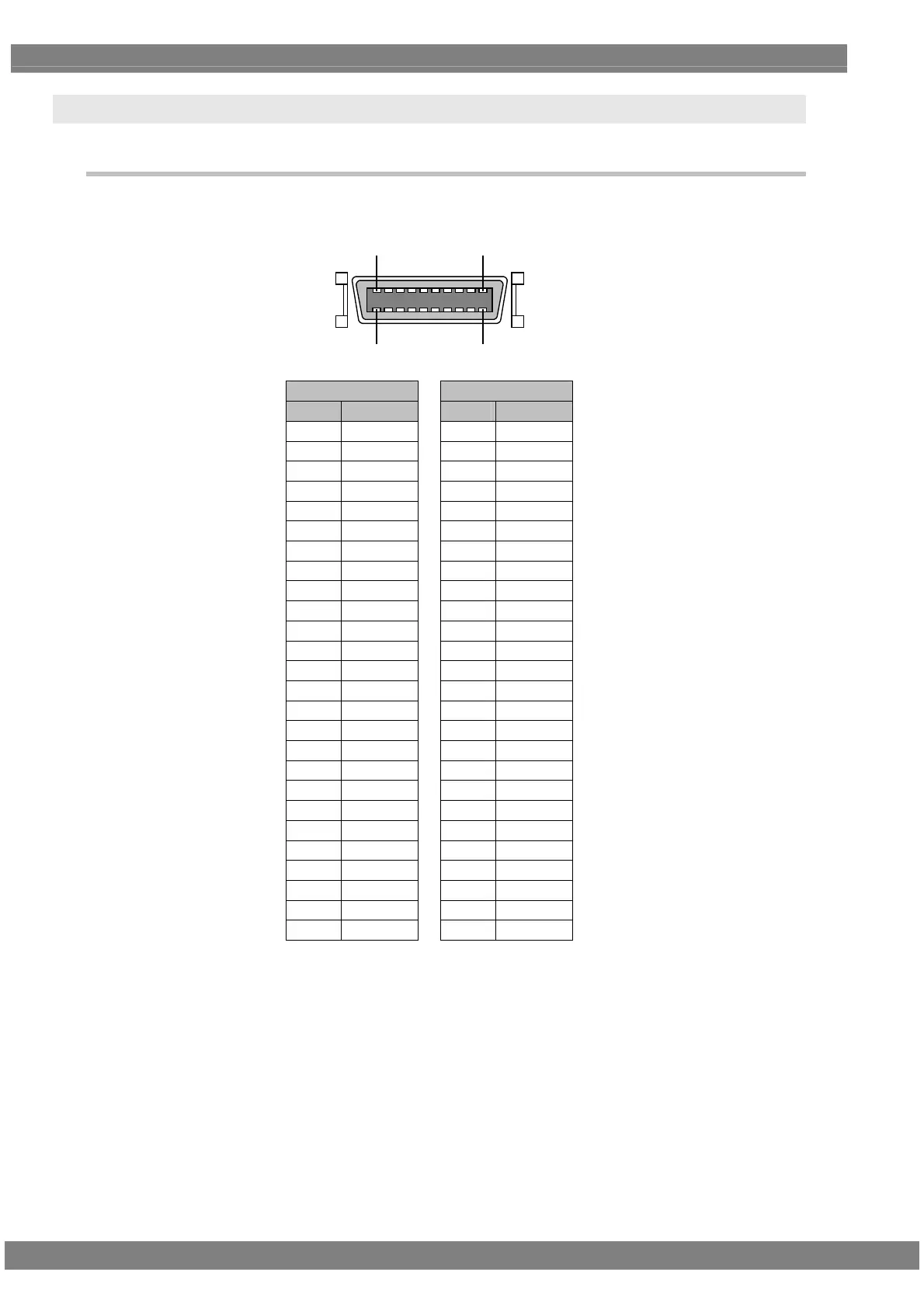

4.13.1
Connectors and pin assignments
•
Connector:
MDR 10226-1210-PE (made by 3M)
1
13
14
26
1CH
2CH
Pin No.
Symbol
Pin No.
Symbol
1 GND
1 GND
2 GND
2 GND
3 NC
3
NC
4 Tx0n
4 Tx4n
5 Tx0p
5 Tx4p
6 Tx1n
6 Tx5n
7 Tx1p
7 Tx5p
8 GND
8 GND
9 SCL
9 SCL
10 GND
10
GND
1
1 NC
1
1 NC
12 Tx3n
12 Tx7n
13 Tx3p
13 Tx7p
14 HTPDN1
14 HT
PDN2
15 LOCKN1
15 LOCKN2
16 GND
16
GND
17 GND
17
GND
18 SDA
18 SDA
19 GND
19
GND
20 NC
20
NC
21 NC
21
NC
22 Tx2n
22 Tx6n
23 Tx2p
23 Tx6p
24 NC
24
NC
25 GND
25
GND
26 GND
26
GND
*1
No power is supplied.
