The operating mode is set here.
0 Get VCP
Feature
The status of the connection destination is
checked.
(2)
Mode (0/1)
1 Set VCP
Feature
The control commands are sent to the
connection destination.
(3)
VCP Code
00H-FFH The VCP code is set.
(4)
Value
0-65535 A value is set only when Set VCP Feature has been selected as
the Mode setting.

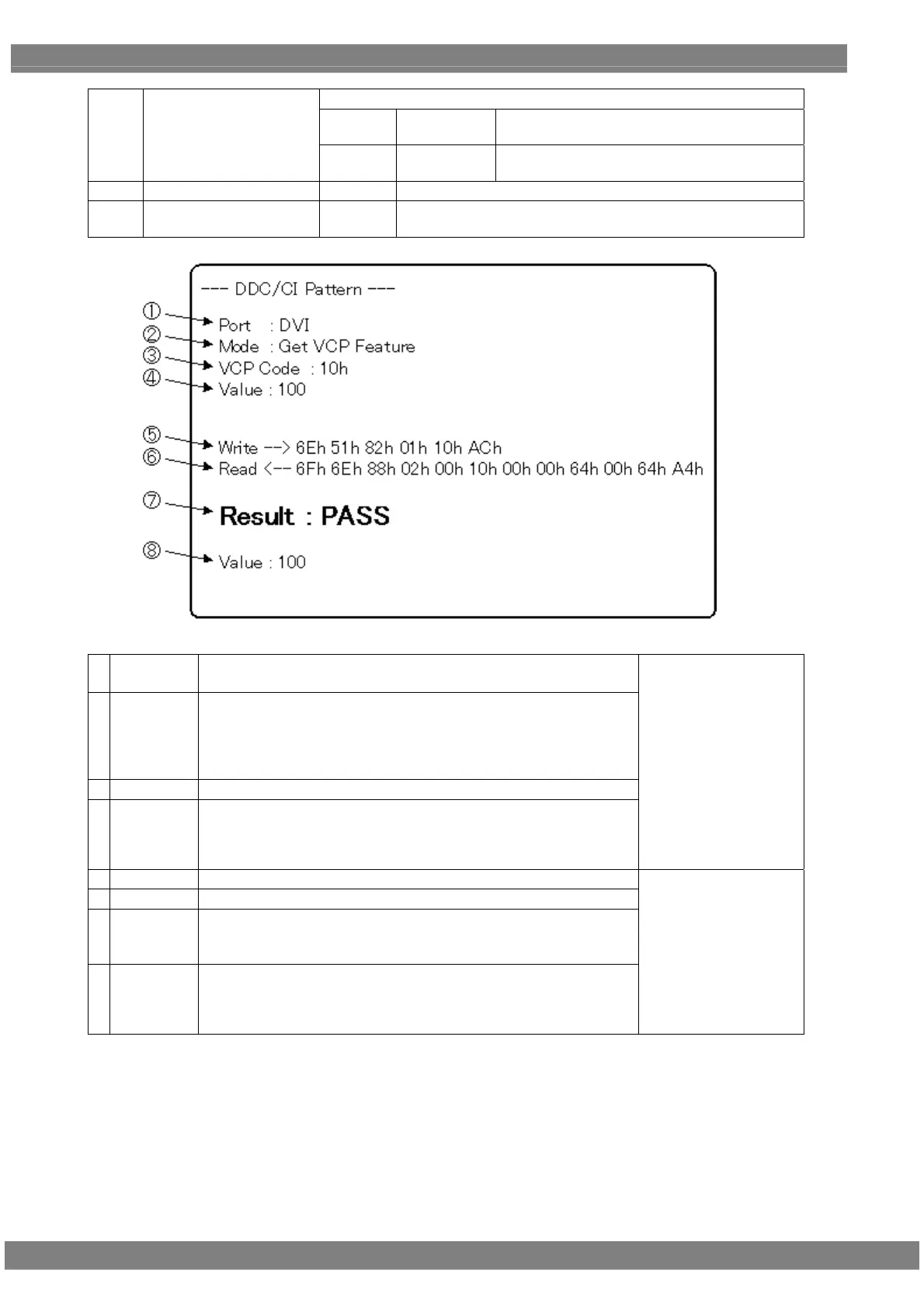

1 Port Output port from which DDC/CI is transferred
DVI or Dsub
2 Mode DDC/CI transfer mode
Get VCP Feature: The status of the connection destination is
received.
Set VCP Feature: Control commands are sent to the
connection destination.
3 VCP Code Transfer command (set using the hexadecimal format)
4 Value
(Displayed only when Set VCP Feature has been selected as the
Mode setting.)
Parameter value to be transferred from the generator to the
connection destination
Items to be set by the
generator
5 Write Data sent from the generator
6 Read Data received by the generator
7 Result Transfer result
PASS: Data was transferred successfully.
NG: Transfer failed.
8 Value
(Displayed only when Get VCP Feature has been selected as the
Mode setting.)
Parameter value received by the VG-870 or 871 from the connection
destination
Items which display the
receiving or sending
results
