Chapter 4 INTERFACE SETTINGS

213

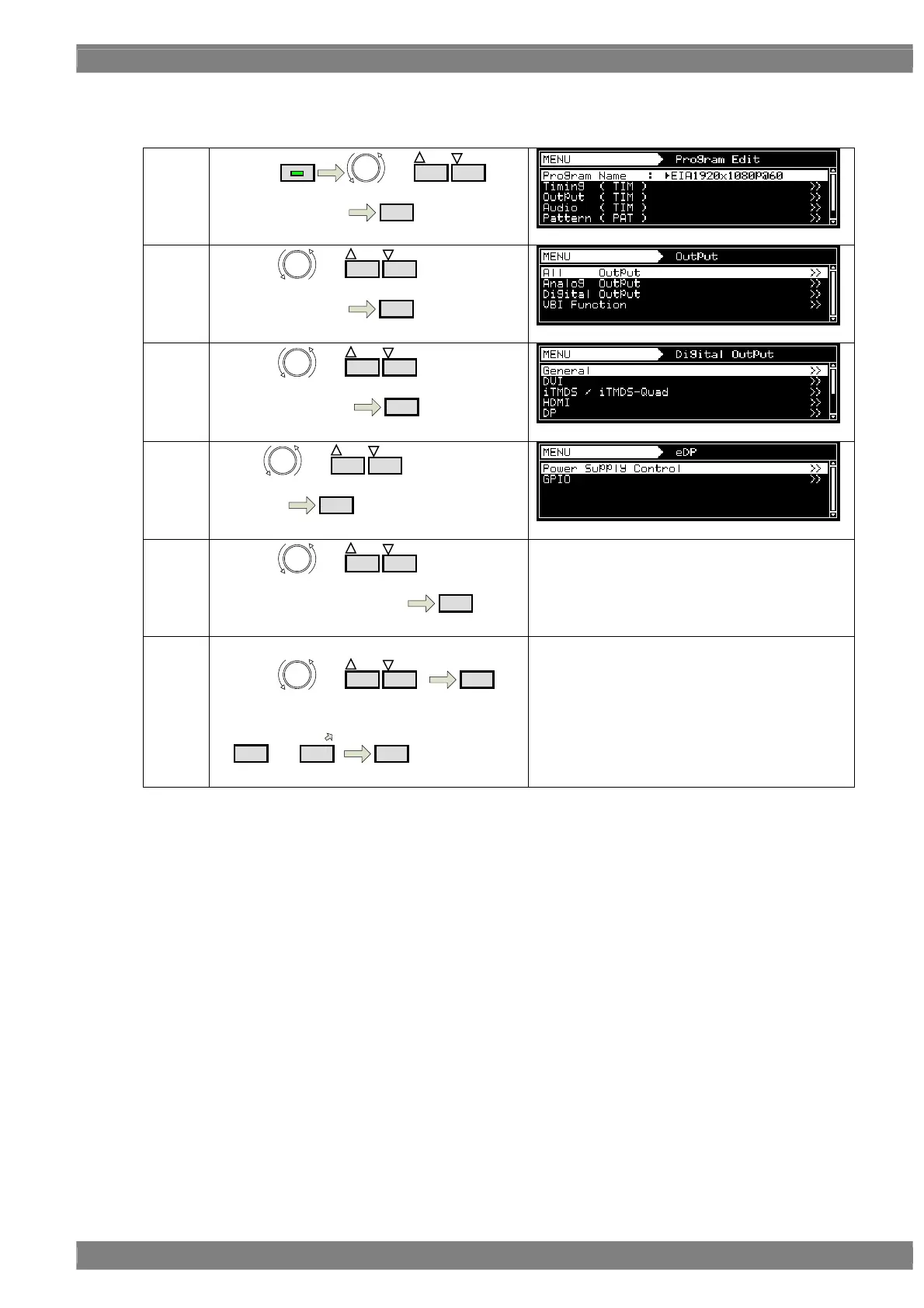

b) Setting of Power Sequence

(1)

By using

INC

DEC

Select Program Edit

SET

(2)

By using or

INC

DEC

Select Output (TIM )

SET

(3)

By using or

INC

DEC

Select Digital Output

SET

(4)

Select or

INC

DEC

Select eDP

SET

(5)

By using or

INC

DEC

Select Power Supply Control

SET

Refer to 《Parameter for power control》 in the

following page about parameter details.

《Input parameter》

By using or

INC

DEC

SET

Or select by number keys

0/STATUS

9/F

SET

Note) power output and control is done in one line.
