ASTRO VG Series User Manual

266
1
ON
The data is input/output.
The SCLK edge to be used when the I2S data is input is set here.
0
Rise
The data is captured at the SCLK rising edge.
(4)
SCLK Edge (0/1)
1
Fall
The data is captured at the SCLK falling edge.

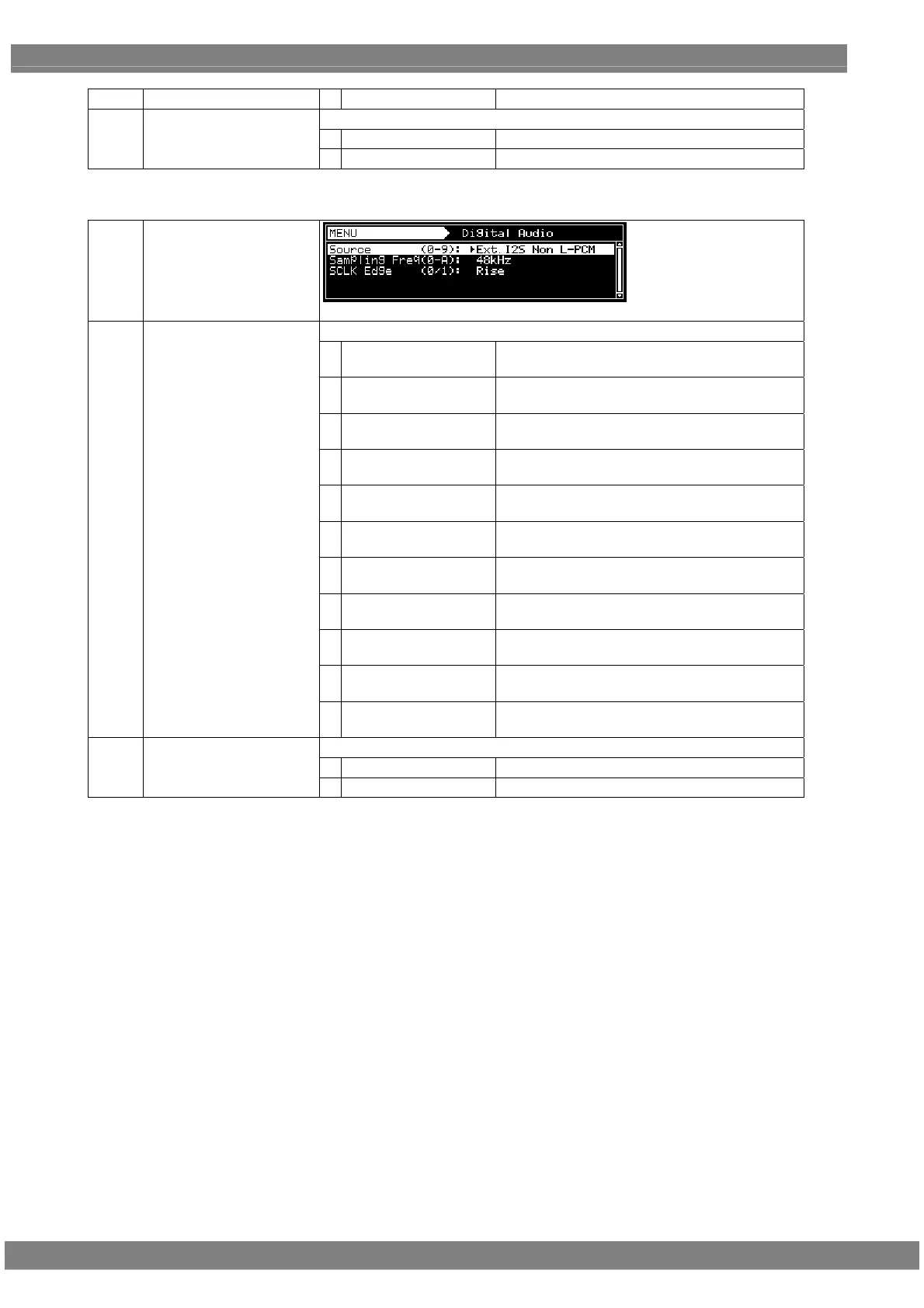

<Ext. I2S Non L-PCM setting parameters> (Option)
Setting menu display
The sampling frequency of the input audio signals is set here.
0
32 KHz
The signals are input/output with a 32 kHz
sampling frequency.
1
44.1 KHz
The signals are input/output with a 44.1 kHz
sampling frequency.
2
48 KHz
The signals are input/output with a 48 kHz
sampling frequency.
3
88.2 KHz
The signals are input/output with a 88.2 kHz
sampling frequency.
4
96 KHz
The signals are input/output with a 96 kHz
sampling frequency.
5
176.4 KHz
The signals are input/output with a 176.4 kHz
sampling frequency.
6
192 KHz
The signals are input/output with a 192 kHz
sampling frequency.
7
352.8 KHz
The signals are input/output with a 352.8 kHz
sampling frequency.
8
384 KHz
The signals are input/output with a 384 kHz
sampling frequency.
9
705.6 KHz
The signals are input/output with a 705.6 kHz
sampling frequency.
(1) Sampling Frequency
(0-A)
A
768 KHz
The signals are input/output with a 768 kHz
sampling frequency.
The SCLK edge to be used when the I2S data is input is set here.
0
Rise
The data is captured at the SCLK rising edge.
(2)
SCLK Edge (0/1)
1
Fall
The data is captured at the SCLK falling edge.
