ASTRO VG Series User Manual

302

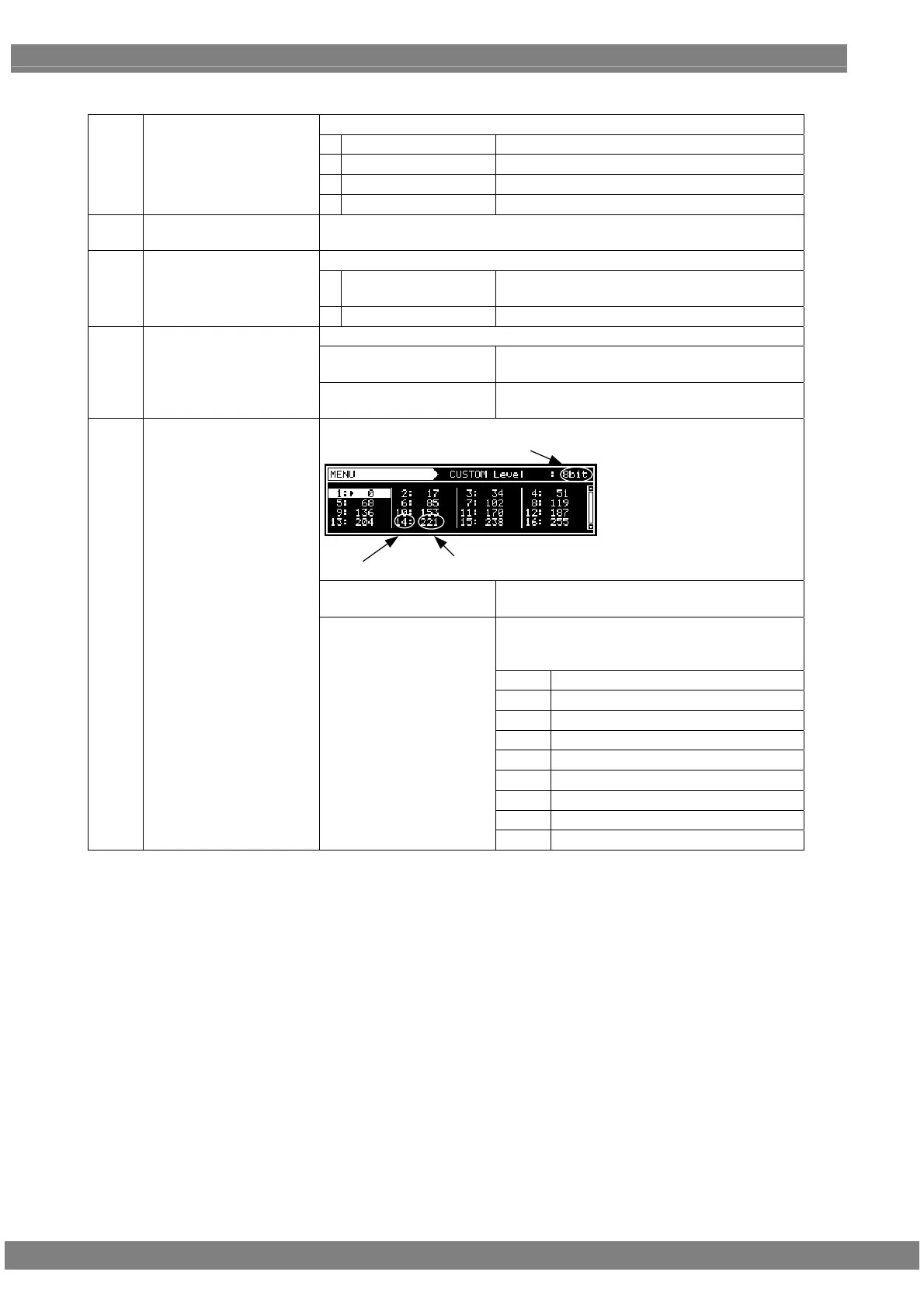

<Table of customized gray scale pattern setting items>
The drawing direction of the gray scale is set here.
0
H Direction
Horizontal direction
1
V Direction
Vertical direction
2
H Direction&div.V
Horizontal direction (loopback by Repeat)
(1)
Format (0-3)
3
V Direction&div.H
Vertical direction (loopback by Repeat)
(2)
Repeat
One or more of the 1 to 16 data set by Level are set here. The value set here
becomes the number of steps which are displayed. Range: 1 to 16
The method of specifying the display size per step is set here.
0
%
The size is set as a percentage of the entire
screen.
(3)
Input Mode (0/1)
1
dot
The size is set in 1-dot increments.
The display size per step is set here.
When a percentage is
used for Input Mode
Set any size from 0.0% to 100.0%.
(4)
Width[%]
Width[dot]
When dots are used for
Input Mode
Set the size in 1-dot increments.
The display level is set here.
Level
Number
Bit Length
Number
The steps from 1 to the Repeat setting are used
for the display.
The level is set here.
The setting range differs depending on the color
depth.
8 BIT
0 to 255
9 BIT
0 to 511
10 BIT
0 to 1023
11 BIT
0 to 2047
12 BIT
0 to 4095
13 BIT
0 to 8191
14 BIT
0 to 16383
15 BIT
0 to 32767
(5)
Level
Level
16 BIT
0 to 65535
