306

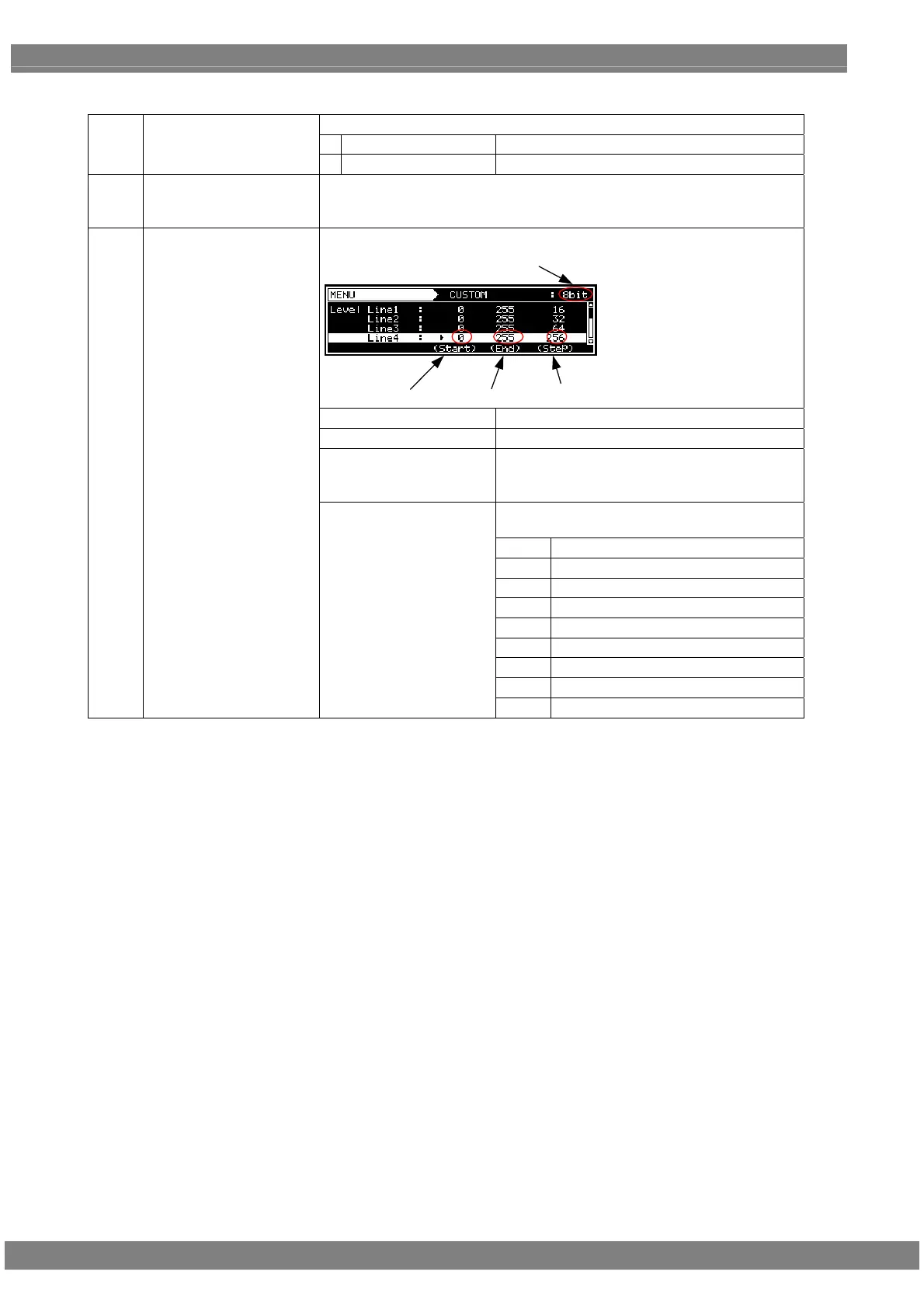

<Table of ramp pattern setting items>
The resolution is set here.
0
H
Horizontal ramp
(1)
Direction (0/1)
1
V
Vertical ramp
(2)
H-Line
Up to four ramp patterns with different levels and steps can be displayed on
one screen.
Range: 1 to 4 types. These types are used in sequence from line 1.
The start level, end level and step are set here.
Bit Length
Start Level
Step
End Level
(Start)
The start level is set here.
(End)
The end level is set here.
(Step)
The number of display steps from the start level
to end level is set here.
Setting range: 1 ≤ setting ≤ (End) - (Start) + 1
The setting range for the above levels differs
depending on the color depth.
8 BIT
0 to 255
9 BIT
0 to 511
10 BIT
0 to 1023
11 BIT
0 to 2047
12 BIT
0 to 4095
13 BIT
0 to 8191
14 BIT
0 to 16383
15 BIT
0 to 32767
(3)
Line1 to Line4
16 BIT
0 to 65535
* Concerning H-Line
This item takes effect only when “0” has been selected as the Direction setting.
* Concerning Direction
When “1” has been selected as the Direction setting, only “1” takes effect as the H-Line setting. (Splitting in the
vertical direction is not possible.)
To Next Page
