Chapter 6 PATTERN SETTINGS
325

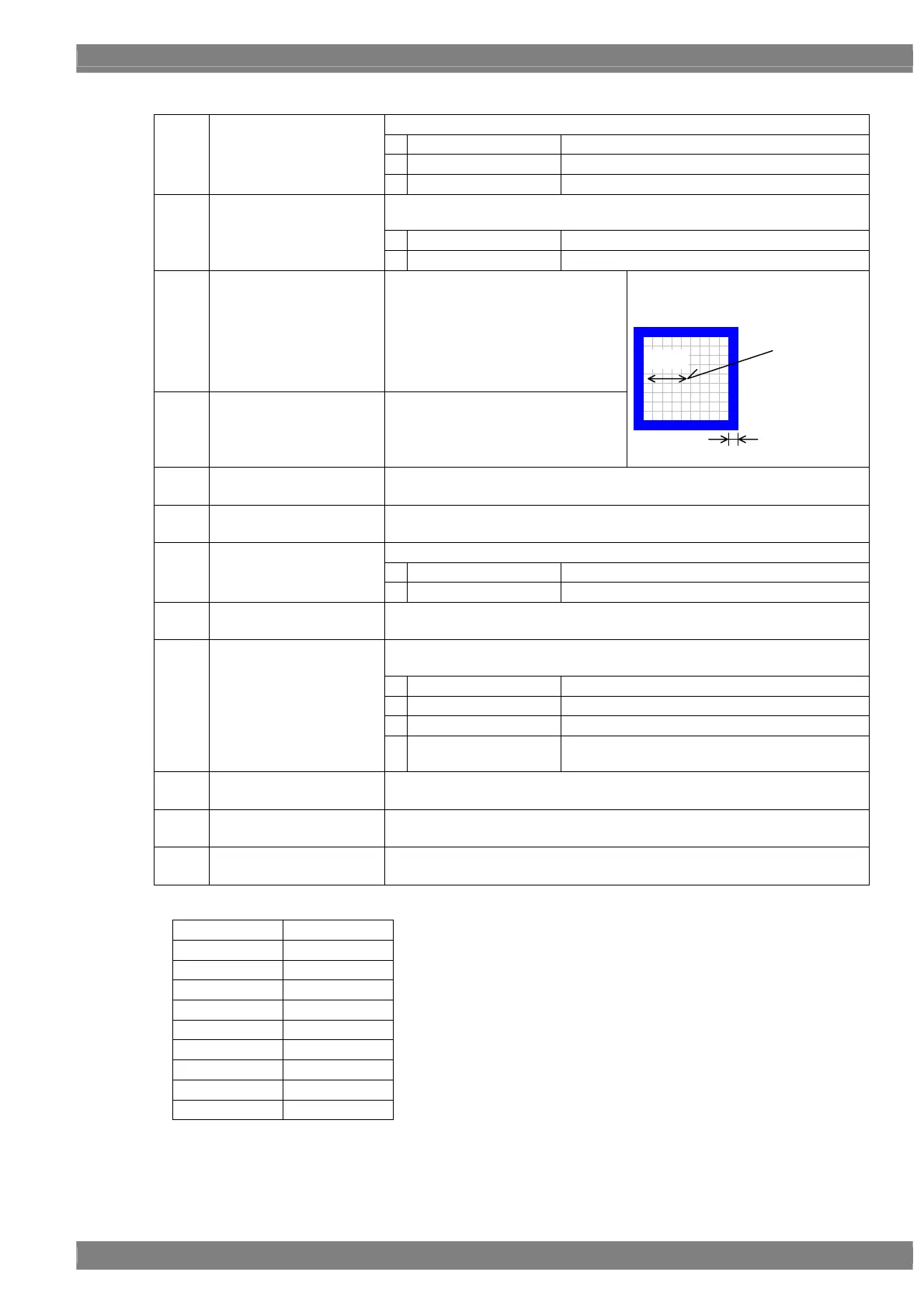

<Table of 9-marker setting items>
The shape of the markers is specified here.
0
Circle
Circle
1
Square
Square
(1)
Mark Shape (0/2)
2
Line
Straight line
Whether to fill to markers is specified here (disabled when straight line has
been selected as the Mark Shape setting).
0
OFF (Line)
Markers not filled
(2)
Mark Fill (0/1)
1
ON
Markers filled
(3)
Mark Line Width
The width of the marker frame lines is
set here.
Setting range: 1 to 15 [dot]
* When “ON” has been selected as
the Mark Fill setting, the width will
be 1 dot regardless of the setting.
(4)
Mark Size
The size of the markers is set here.
Setting range: 1 to 9999 [dot]
Setting example: Mark Line Width = 1
Mark Size = 5
中心
5 dot
1 dot
(5)
Mark Number
The number of the markers is set here.
Setting range: 0 to 9
(6)
Mark Position H,V
The center coordinate of the marker position is set here.
Setting range: 0 to 4095 [dot]
The direction of the straight line marker is set here.
0
H
Horizontal line
(7)
Mark Direction [H,V]
1
V
Vertical line
(8)
Mark Color R,G,B
The color of the markers is set here.
The setting range differs depending on the color depth. * See below.
Whether to display the lines and the shape of the lines when they are
displayed are set here.
0
None
No lines
1
V-Line
Vertical line
2
H-Line
Horizontal line
(9)
Line Mode (0-3)
3
HV-Line
Cross consisting of one horizontal line and one
vertical line
(10)
Line Width
The width of the lines is set here.
Setting range: 1 to 15 [dot]
(11)
Line Position H,V
The positions of the lines are set here.
Setting range: 0 to 4095 [dot]
(12)
Line Color R,G,B
The color of the lines is set here.
The setting range differs depending on the color depth. * See below.
* Color setting range.
Color Depth Setting range
8BIT
0 - 255
9BIT
0 - 511
10BIT
0 - 1023
11BIT
0 - 2047
12BIT
0 - 4095
13BIT
0 - 8191
14BIT
0 - 16383
15BIT
0 - 32767
16BIT
0 - 65535
Center
5 dots
To Next Page
