ASTRO VG Series User Manual

340
(7)

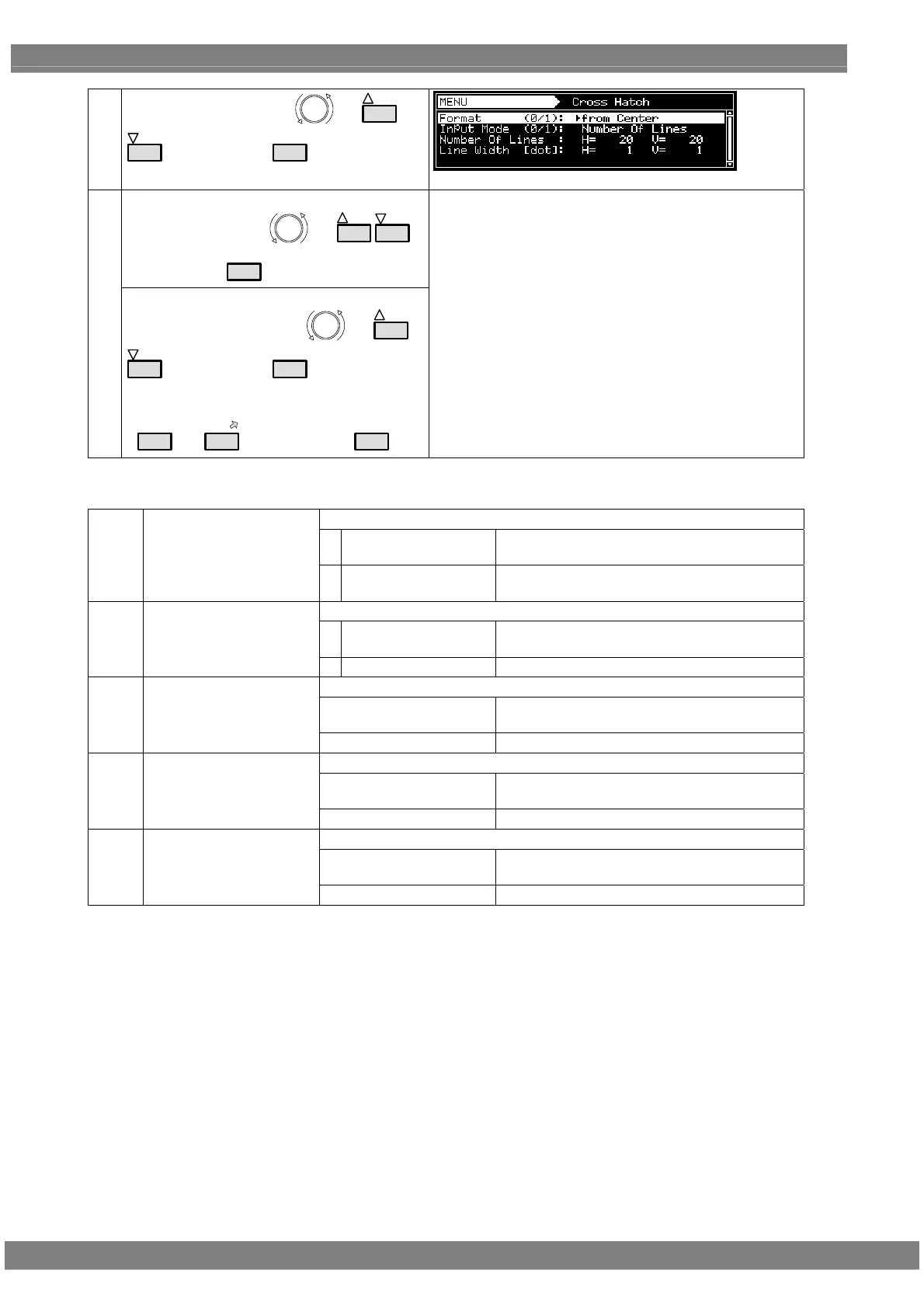

Select Cross Hatch using
or
INC
DEC
, and then press
SET
.
<Setting the items>
Select the items using or
INC
DEC
,
and then press
SET
.
(8)
<Setting the parameters>
Select the parameters using
or
INC
DEC
, and then press
SET
.
Alternatively:
Select the parameters using the number keys
(
0/STATUS
to
9/F
), and then press
SET
.
For further details, refer to <Table of crosshatch setting
items> below.
<Table of crosshatch setting items>
The origin point of the pattern drawing is set here.
0
From Center
The pattern is drawn using the screen center as
the origin point.
(1)
Format (0-2)
1
From Top-Left
The pattern is drawn using the top left of the
screen as the origin point.
The input mode is selected here.
0
Number Of Line
This sets the number of lines to be displayed on
the screen.
(2)
InputMode (0/1)
1
Interval (dot)
This sets the interval between the blocks.
The number of lines to be displayed on the screen is set here.
Number Of Lines: H =
Set the number of lines in the horizontal
direction.
(3)-a When Number of Lines
has been selected as the
Input Mode setting
Number Of Lines: V =
Set the number of lines in the vertical direction.
The interval between the blocks is set here.
Interval [dot]: H =
Set the number of lines in the horizontal
direction.
(3)-b When Interval (dot) has
been selected as the
Input Mode setting
Interval [dot): V =
Set the number of lines in the vertical direction.
The line width is set here.
Line Width [dot]: H =
Set the number of lines in the horizontal
direction.
(4)
Line Width [dot]
Line Width [dot]: V =
Set the number of lines in the vertical direction.
