Chapter 6 PATTERN SETTINGS
349

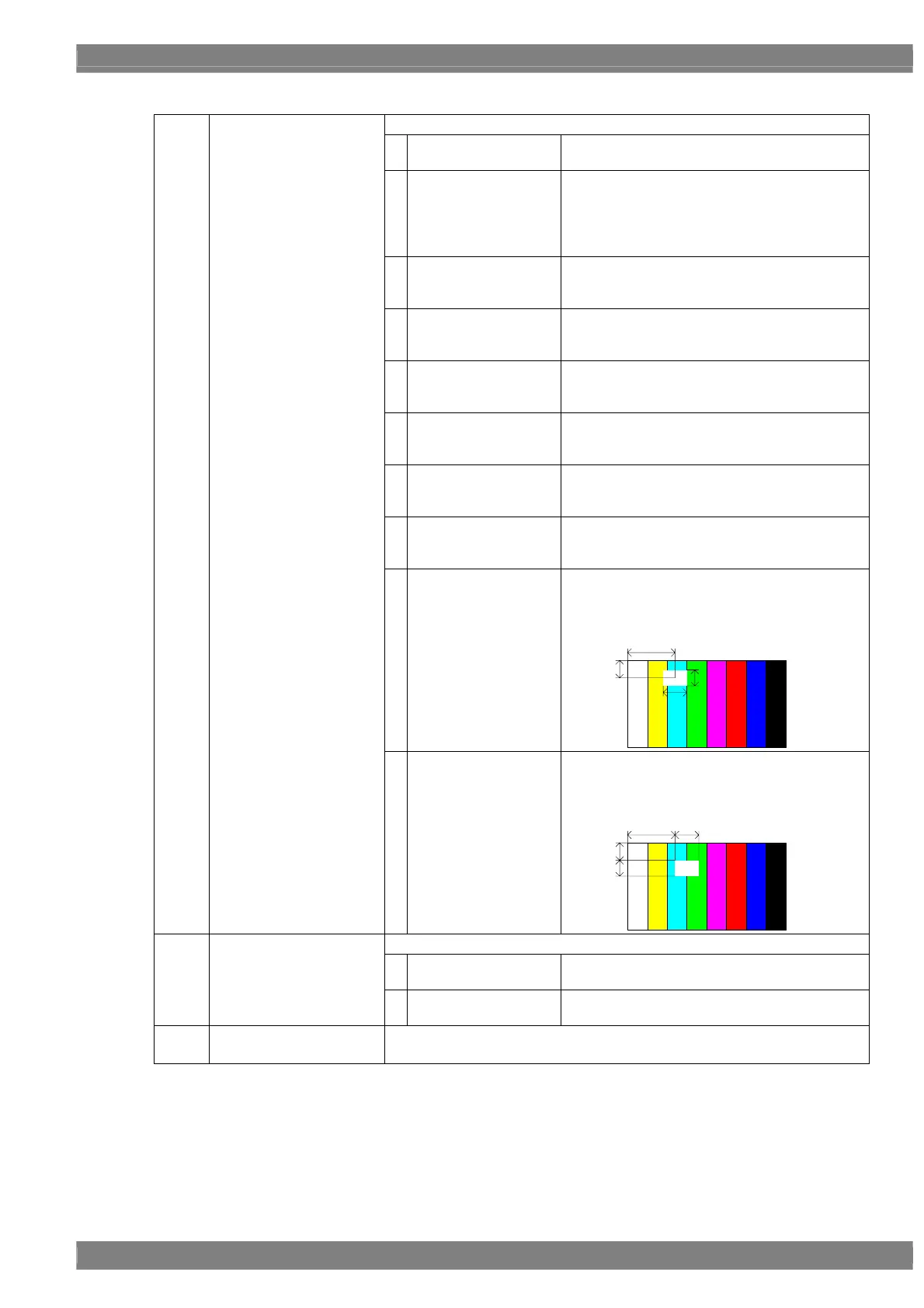

<Table of window setting items>
The window display format is set here.
0
1 Window
One window is displayed at the center of the
screen.
1
4 Window
The screen is divided into four areas, and each
of the four windows is displayed in the center of
its respective area.
The window size is set using the area divided
into the four areas as 100%.
2
9 Window
The screen is divided into four areas, and each
of the nine windows is displayed in the center of
its respective area.
3
16 Window
The screen is divided into four areas, and each
of the sixteen windows is displayed in the center
of its respective area.
4
25 Window
The screen is divided into four areas, and each
of the thirty-two windows is displayed in the
center of its respective area.
5
64 Window
The screen is divided into four areas, and each
of the sixty-four windows is displayed in the
center of its respective area.
6
3 Window In V Row
The screen is divided vertically into three areas,
and each of the three windows is displayed in
the center of its respective area.
7
3 Window In H Row
The screen is divided horizontally into three
areas, and each of the three windows is
displayed in the center of its respective area.
8
User Pos Center
The window can be displayed at any position.
The coordinates of the window center are
specified as the origin point of the window
display.
Position-1：H
Position-1:V
Size:V
Size:H
(1)
Format (0-9)
9
User Pos Corner
The window can be displayed at any position.
The coordinates of the top left of the window are
specified as the origin point of the window
display.
Position-1：H
Position-1:V
Size:H
Size：V
The input mode for the window size and display position is specified here.
0
%
The size and position are set as a percentage of
the entire screen.
(2)
Input Mode
1
dot
The size and position are set in 1-dot
increments.
(3)
Size
The window size is set here.
The setting procedure differs depending on the Input Mode setting.
