ASTRO VG Series User Manual

Chapter 7 ACTION SETTINGS
395
The color setting method is specified here.
0
All
All the patterns are set together.
(9)
Color InpMode (0/1)
1
Separate
The patterns are set individually.
The pattern colors (R/G/B levels) are set here.
The colors for patterns 9 to 16 are the same as for patterns 1 to 8.
The setting range differs depending on the pattern drawing bit length (Color
Depth).
Color Depth Setting range
8bit :
0 - 255
9bit :
0 - 511
10bit :
0 - 1023
11bit :
0 - 2047
12bit :
0 - 4095
13bit :
0 - 8191
14bit :
0 - 16383
15bit :
0 - 32767
(10)
Color
16bit :
0 - 65535
(11)
OPT Back R,G,B
The background color (R/G/B levels) is specified here when the internal
optional pattern No.71 (Motion Blur Line) has been selected.
The setting range is the same as for the Color setting item.
(12)
Area H/V
The pattern movement range is set as a percentage of H/V-Timing Disp.
Setting range: 0 - 100 [%]

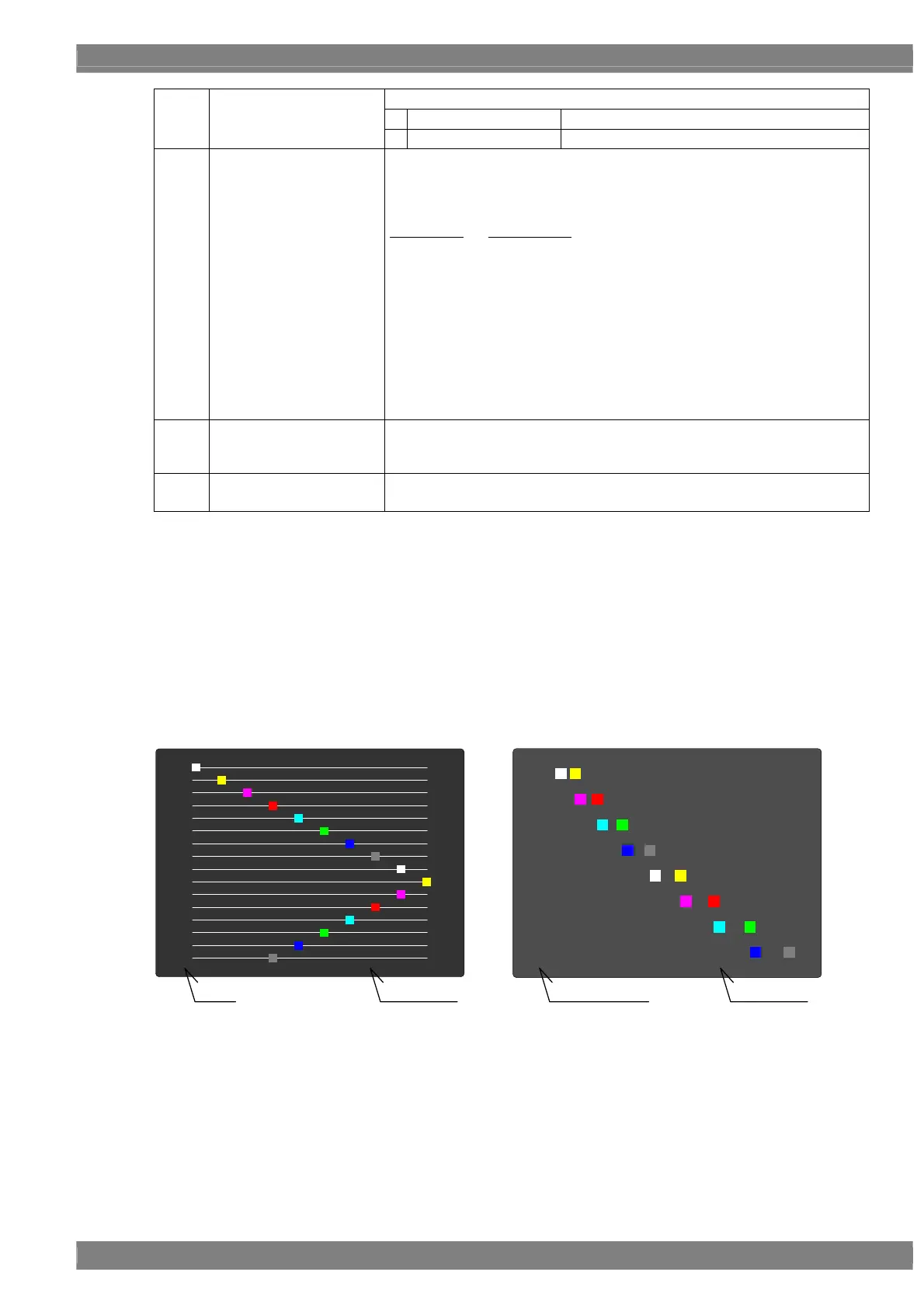

<Concerning the internal optional pattern No.71>
Internal optional pattern No.71 (Motion Blur Line) is the pattern which displays the aspects of the Motion Blur>Step
setting and other setting items.
What is displayed depends on the Direction setting.
The background color can be set using OPT Back.
(1) When the Direction>Top-L<->Bottom-R,
Left<->Right, or Up<->Down setting is selected
The Step and its path line are displayed in white.
(2) When the Direction>Left<->Right setting is selected
The Step and Distance are displayed in white.
9
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
OPT Back
Step
1/ 2
2/ 4
3/ 6
4/ 8
5/ 10
6/ 12
7/ 14
8/ 16
Step / Distance
OPT Back
(3) When the Direction>Random setting is selected
The frames are displayed in white.
