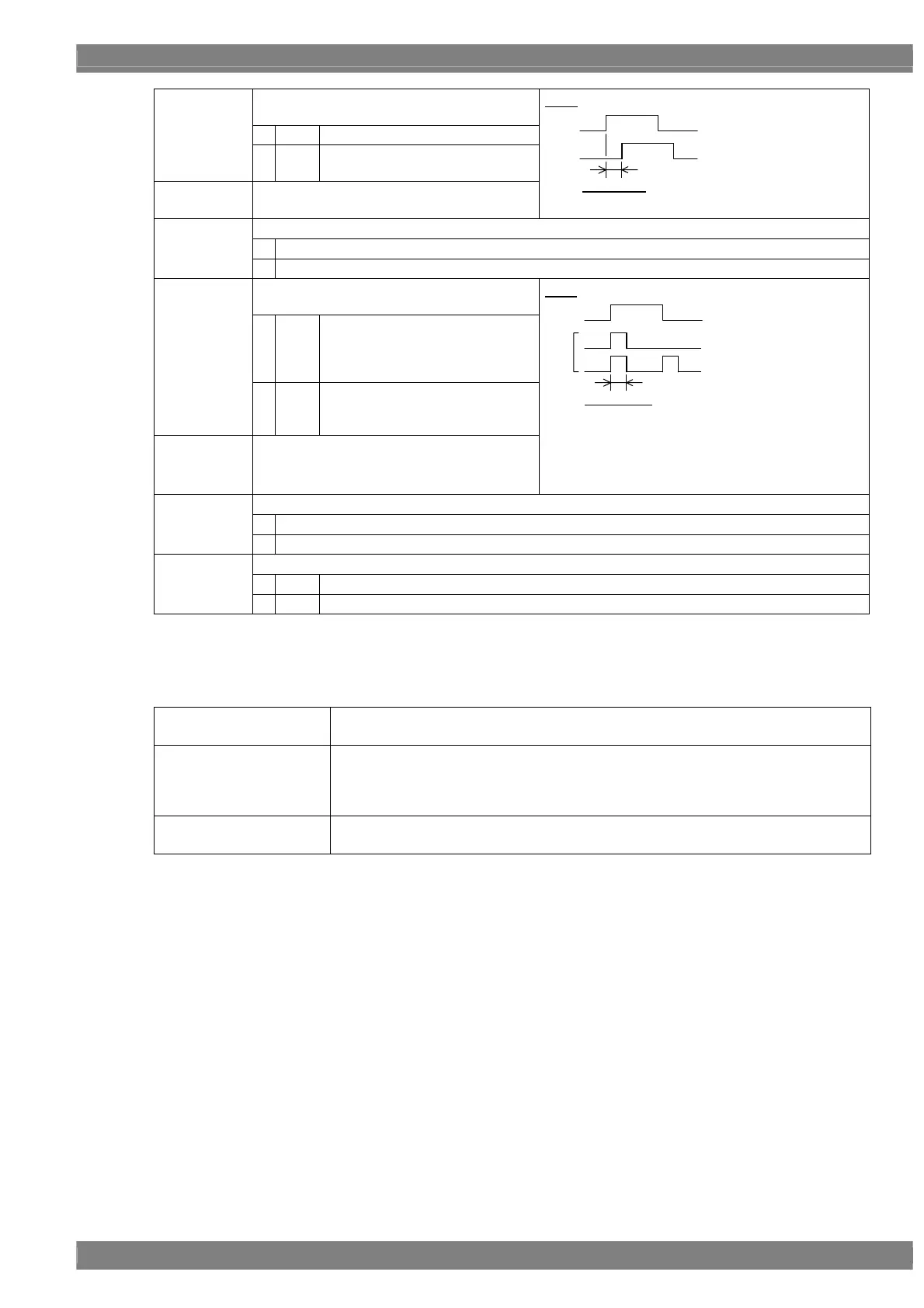

Chapter 9 VG-870/871 SYSTEM SETTINGS
419
ON or OFF for the trigger delay function is
selected for each output (OUT0-3).
0 OFF The triggers are not delayed.
Delay (0/1)
1 ON
The trigger outputs are delayed in
accordance with the Delay Time.
Delay Time 0,
1
The delay time is set here.
Setting range: 1 to 4096 [H]
Delay
ON
OFF
Delay Time
The delay time settings (Delay Time 0 and 1) are selected here for each output (OUT0 to 3).
0 Delay Time 0
Time Sel (0/1)
1 Delay Time 1
ON or OFF for the pulse function is selected
for each output (OUT0-3).
0 OFF
The triggers are output using a
width in V increments. (Refer to
“Concerning the trigger function”
described previously.)
Pulse (0/1)
1 ON
The triggers are output using the
designated width (in H
increments) of the Pulse Width.
Pulse Width
0, 1
The pulse width is set here.
Setting range: 0 to 4095 [H]
Pulse
ON
OFF
VSyncトリガ
VSyncトリガ 以外
Pulse Width
※
* When the pulse function is OFF, high-level and
low-level VSync triggers are output alternately in
line with VSync; when it is ON, they are output
with each VSync signal.
The pulse width settings (Pulse Width 0 and 1) are selected here for each output (OUT0 to 3).
0 Pulse Width 0
Width Sel
(0/1)
1 Pulse Width 1
The polarity of the trigger output is selected for each output (OUT0-3).
0 Nega Reversed
Polarity (0/1)
1 Posi Positive (high)
<Table of simple moving image frame trigger setting items>
* The simple moving image frame trigger is an option so it will not be displayed unless the license has been
registered.
Number Of Frames
The number of frames for outputting the trigger is set here.
Setting range: 0 to 16
Frame No.
The numbers of the frames (max. 16) for outputting the trigger are set here.
Any number which exceeds the number of simple moving image being displayed will
be ignored.
Setting range: 1 to 1024
Data
The data to be output to the specified frames is set here. (Data bits 0-3: OUT0-3)
Setting range: 0x0 to 0xF
Triggers other than
VSync trigge
VSync trigger *
