ASTRO VG Series User Manual

Chapter 9 VG-870/871 SYSTEM SETTINGS
421

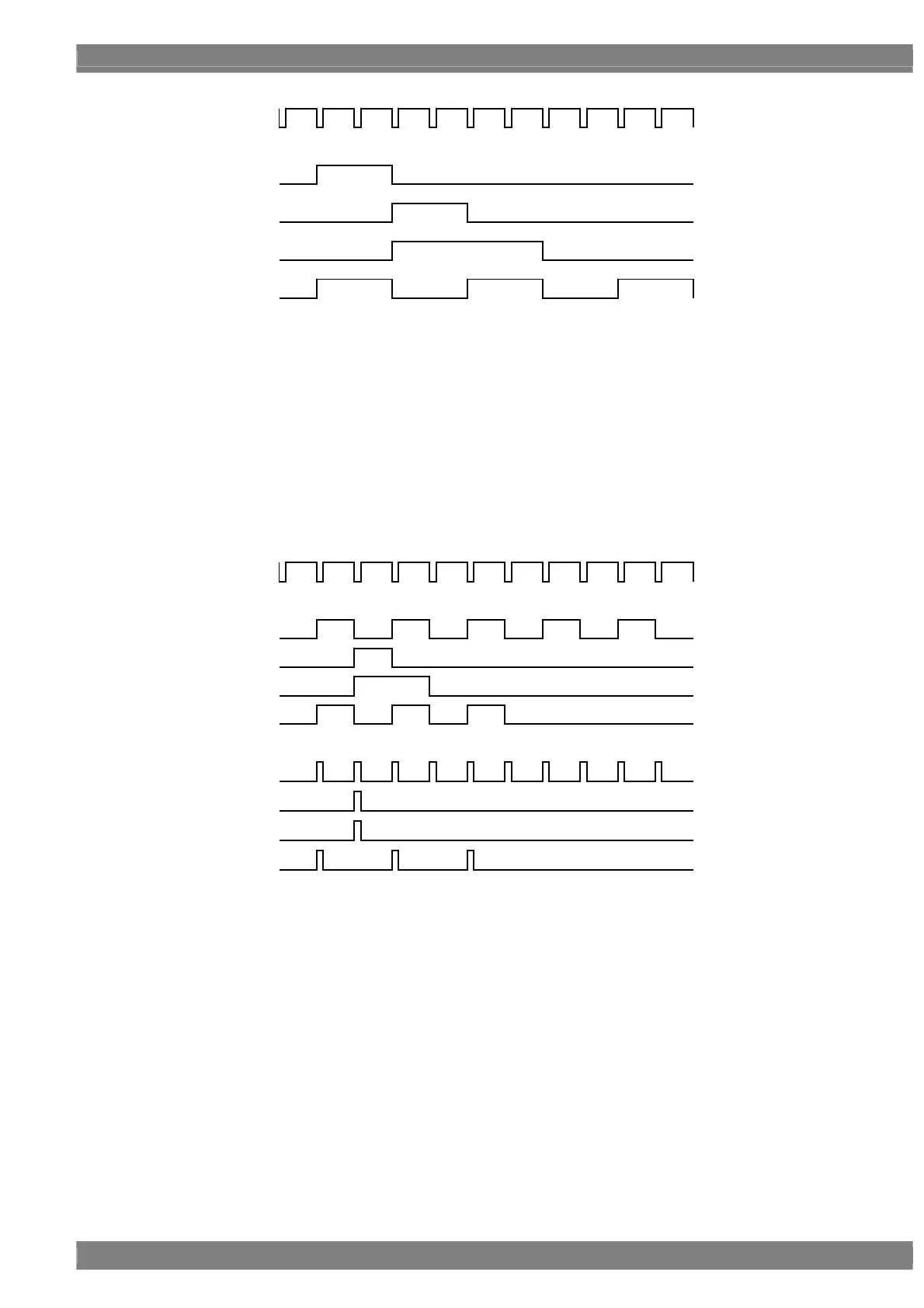

●EXP.3 F1 F1 F2 F2 F3 F3 F4 F4 F5 F5
V-Sync
①①②②③③ ④④
OUT0 (MLB)
OUT1
OUT2
OUT3 (MSB)
Number Of Fram
e
:4
Frame No. Data
①1: 1 9H
②2: 2 6H
③3: 3 cH
④4: 5 8H
○下記の簡易動画のインターバルパラメータを2にした場合
GraphicPlaneScr
o
: Direction : SimpleAnimation
: Interval1 : 2 (EXP.1とEXP.2は値が1の場合です)
●EXP.4 F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
V-Sync
Pulse
OUT0 Off VsyncTrigger
OUT1 Off FrameTrigger
OUT2 Off FrameTrigger
OUT3 Off FrameTrigger
Pulse
OUT0 On VsyncTrigger
OUT1 On FrameTrigger
OUT2 On FrameTrigger
OUT3 On FrameTrigger
○下記設定ではOUT1にVsyncTrigger、他のポートにFrameTriggerが出力されます
Mode : Frame+Vsync Trigger
○PulseをOnにした場合VsyncTriggerは上り下りの両エッジにパルスが出ます
○PulseをOnにした場合FrameTriggerは上りエッジのみにパルスが出ます
○OUT2の様に複数フレームにまたがる場合も最初のエッジにのみパルスが出ます
When “2” has been selected as the setting for the interval parameter of simple animation below
(A value of 1 applies for EXP.1 and EXP.2.)
Under the settings below, VsyncTrigger is output to OUT1 and FrameTrigger to the other ports.
Mode : Frame+Vsync Trigger
When Pulse has been set to On, VsyncTrigger pulses are output at both the rising and falling edges.
When Pulse has been set to On, FrameTrigger pulses are output at the rising edges only.
A pulse is output only to the initial edge when it spans a multiple number of frames as with OUT2.
