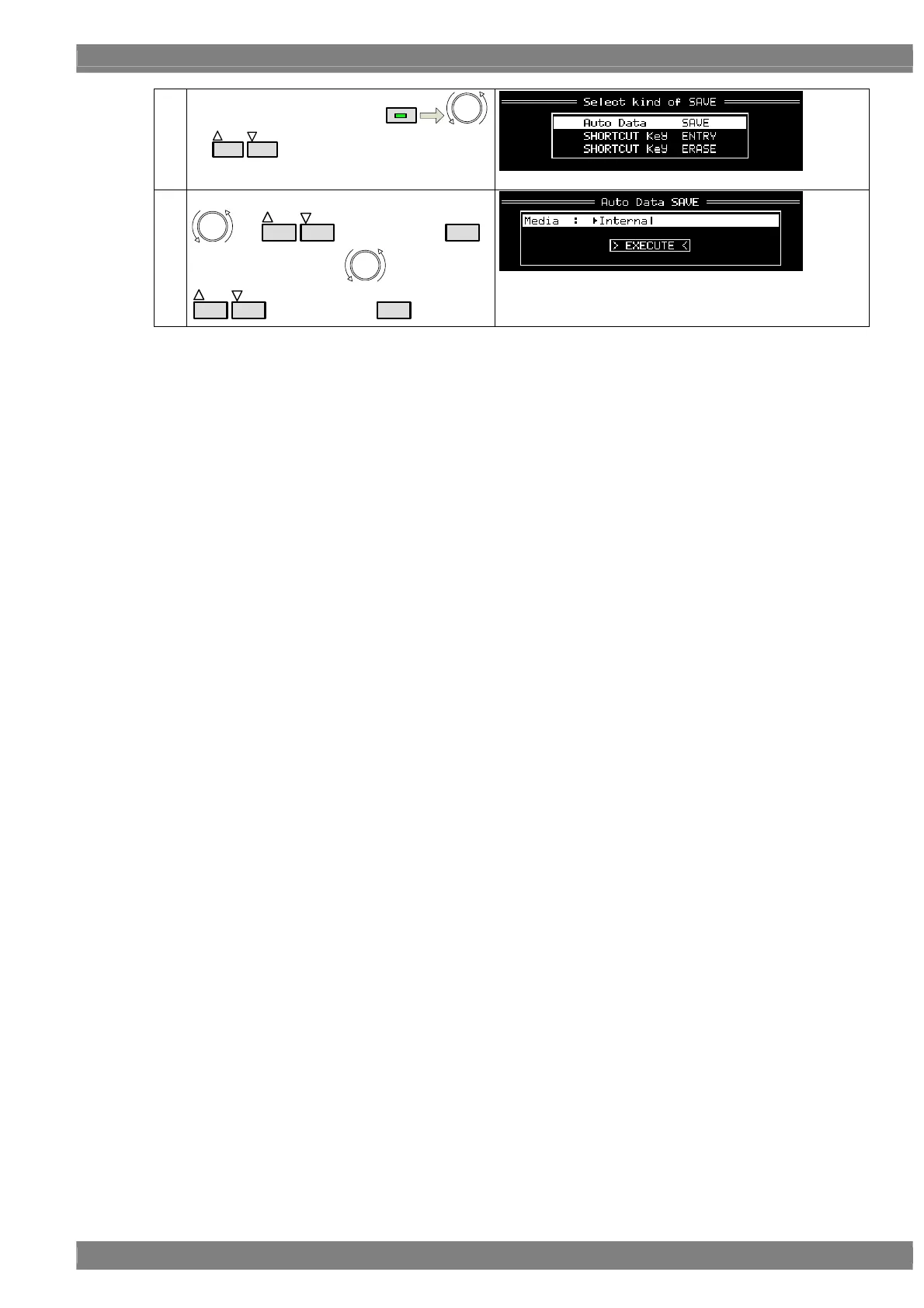

Chapter
2 OPERAT
ION
PROCEDURES
27
(6)
Select
Auto Dat
a SA
VE
using
SAVE
or
INC
DE
C
.
(7)
Select the save destination (*) at
Media
using
or
INC
DE
C
, and then press
SET
.
Select
EXECUTE
using
or
INC
DE
C
, and then press
SET
.
* Internal:
The data is saved on the internal memory
.
CF-card:
The data is saved on the CF card.
44
46
Table of Contents
Table of Contents
5
Safety Precautions
15
Standard Accessories
18
Optional Accessories
18
General Description
19
Data Configuration
20
Panel Parts and Their Functions
21
Names of the Keys and Their Functions
23
VG-870B/871B/873/874 Rear Panel
25
VG-870B/871B/873/874 Side Panel
26
VG-870B/871B/873/874 Video Units
27
PC Analog Unit (VM-1811)
28
Displayport Unit (VM-1820
29
K2K Itmds Quad Unit (VM-1824-A)
30
HDMI (3D, ARC) Unit (VM-1822)
31
Displayport, Edp Unit (VM-1826)
32
Flow of Basic Operations
33
Selecting the Timing Data
34
Selecting the Pattern Data
35
Selecting the Actions
37
Saving the Program Data
40
Setting the Names
41
Groups
42
Setting and Saving Groups
43
Automatic Execution
44
Displays Appearing on the VG-871B / 874 Fluorescent Display Tube
46
Horizontal Timing Data Editing
47
Horizontal Timing Data Setting Procedure
48
Vertical Timing Data Editing
49
Vertical Timing Data Setting Procedure
52
Concerning the Scanning Modes
53
Concerning Serration and EQP
54
Concerning EQP-Fp and EQP-Bp
55
Output Settings
59
Setting the Sync Signals to on or off and Setting the Sync Signal Polarities
60
Setting the Level Mode
62
Setting the Aspect Ratio
63
Setting the Bit Length (Gray Scale) for Pattern Drawing
65
Selecting RGB or Ypbpr and Setting the Color Difference Coefficients
67
Setting the Analog Level
69
Setting the Digital Level
70
Audio Sweep Settings
71
Setting the Audio Level (Temporary Settings)
72
Digital Level Setting of 3D Pattern
73
Hdmi
75
HDMI Setting Procedure
77
Infoframe/Packet
79
CEC Function
101
Embedded Audio, High Bit Rate Audio (Option)
104
Edid
105
VD-1673 (Hdmi Switcher)
106
Audio Return Channel
107
HDMI Ethernet Channel
111
Connectors and Pin Assignments
123
DVI Unit Setting Procedure
124
PC Analog Unit (DVI) Setting Procedure
126
DVI Data Transfer Systems
127
Sync Signal Polarity Setting
130
K2K (Itmds, Itmds Quad) (VM-1824, VM-1824-A)
131
K2K (Itmds) Unit Setting Procedure
132
Itmds Data Transfer Systems
136
Sync Signal Polarity Settings
162
Lvds
163
LVDS Setting Procedure
164
Data Transfer System
168
Bit Arrays
181
Parallel
184
Parallel Data Setting Procedure
185
Analog Component Signals
188
Setting the Analog Video Level
189
Composite Connector and Y/C Connector (S Connector)
190
Composite Signal Filter Settings
191
Setting the ID Signals (Y/C)
192
D5 (D Connector)
193
VGA (D-Sub)
195
Scart
196
SCART Setting Procedure
197
Functions Available with TV Standard Signals
198
Concerning the Fast Blanking Signal
199
Displayport / Edp
200
Displayport Setting Procedure
203
Displaying the Displayport Setting Information
212
Displayport Analysis
215
Embedded Audio
219
DDC/CI
220
Info Frame
221
Setting for Edp (for VM-1826)
230
V-By-One HS (VM-1825)
234
V-By-One HS Setting Procedure
235
Data Transfer Systems
238
V-By-One HS Control
271
Sdi (VM-1821)
272
Embedded Audio
275
Analog Audio Settings
276
Digital Audio
278
Audio Sweep Settings
285
Functions Available with
287
Macrovision
288
Setting Procedure
289
Closed Captions/V-Chip
290
Closed Caption Settings
291
V-Chip Settings
296
Changing the Data Superimposing Line
301
Teletext
302
Setting Procedure
303
Description and Specifications
307
Setting Procedure
308
Cgms -A/ID-1
310
Setting Procedure
311
Color Bar Patterns
313
Color Bar Pattern Customizing
314
Gray Scale Patterns
317
Gray Scale Pattern Customizing
318
Ramp Patterns
321
Ramp Pattern Type Settings and Customizing
322
Sweep Patterns
325
Sweep Pattern Selection
326
Monoscope Patterns
327
Raster Patterns
329
Aspect Ratio Patterns
331
Aspect Ratio Pattern Type Settings and Customizing
332
Checkerboard Patterns
335
Checkerboard Pattern Customizing
336
Image/Opt
339
Option and Image Patterns Setting
340
Moving Images Settings (Option)
341
Marker (OPT No.76) Settings
342
D Image Pattern （OPT No.100）Setting
344
Setting the 3D Pattern (OPT No.101)
347
ABC Patterns
354
Color Settings
355
Character Patterns
356
Crosshatch Patterns
357
Dot Patterns
359
Circle Patterns
360
Burst Patterns
363
Window Patterns
365
Window Pattern Settings
366
Cursor Patterns
369
Cursor Operations
372
Name/List
374
Name
376
Edid
378
DDC/CI
381
HDCP (High-Bandwidth Digital Content Protection)
383
HDMI List
385
Timing Data List
386
Image Pattern List
387
Subtitle
388
Video Black/White Reversal
390
Simple Animation Settings
393
Concerning the Planes
395
Window Actions
396
Flickering
398
Level Up/Down Actions
399
Level Sequence Action
400
Graphic Plane Scrolling Actions
402
Character Plane Scrolling Actions
404
Subtitle Scrolling
406
And 0.125-Dot Scrolling Actions (Option)
408
Motion Blur
411
Scroll Sequence
414
Lipsync
416
Black Insertion Action
418
HDCP Settings
419
HDCP Execution
420
Screen Displays During HDCP Execution
422
HDCP/EDID/CEC Collective Display
424
System Settings
427
Key Lock Setting
428
RS-232C Settings
429
LAN Settings
430
INC/DEC Continuity Setting
431
Color Depth Setting
432
DDC Clock Setting
433
Trigger Mode Settings
434
Image - Priority Settings
440
Image Position Setting
441
Cursor Coordinate Setting
442
Mouse Speed Setting
443
Digital Video Level Step Setting
444
High-Speed Drawing Mode Setting
445
CUSTOM Key1, 2, RB-1871 CUSTOM Key 1, 2
446
Operation Mode at Power-On
447
CF Prg Folderno. Setting
448
AVMUTE Operation Mode Settings
449
Copying and Erasing Data
451
Copying User Characters
453
Copying User Optional Patterns
454
Copying Images
455
Copying Subtitle
456
Copying Groups
457
Copying Auto Executions
458
Copying All Data
459
Erasing Programs
460
Erasing User Optional Patterns
461
Erasing Subtitle
462
Erasing Automatic Executions
463
Short-Cut Keys
464
Information
466
Data Initialization
467
Initializing the Short-Cut Data
468
Formatting
469
Formatting CF Cards for Exclusive Use of Moving Images
470
Internal Memory Formatting and Data Installation
471
Adjustments
474
Adjusting the Ypbpr Video Levels of the TV Encoder Unit
475
Adjusting the COMPOSITE/SCART Video Levels of the TV Encoder Unit
476
Main Specifications
477
HDMI Unit
478
TV Encoder Unit (VM-1812)
479
DVI Unit (VM-1814)
480
DP Unit (VM-1820 / 1820A)
481
Dp/Edp Unit （VM-1826
482
K2K (Itmds, Itmds Quad) Unit (VM-1824, VM-1824-A)
484
V-By-One HS Unit
485
SDI Unit (VM-1821)
486
Moving Image Module
487
Connector Specifications
488
Internal Data
489
Optional Pattern Data
533
User Character Pattern Data
536
Character Pattern Data
541
Tables of Standard Signals
549
Precautionary Items
555
HDMI Unit (VM-1817, 1822, 1823)
556
TV Encoder Unit (VM-1812)
558
PC Analog Unit (VM-1811)
559
DVI Unit (VM-1814)
560
LVDS Unit (VM-1815)
561
Parallel Unit (VM-1816)
562
Displayport Unit (VM-1820, 1820A)
563
Dp/Edp Unit (VM-1826)
566
K2K (Itmds) Unit (VM-1824, 1824-A)
568
V-By-One HS Unit
572
Concerning the Maximum Current Consumption of the DDC (DP_PWR) Power Supply
574
List of Error Messages
575
HDCP-Related Error
578
