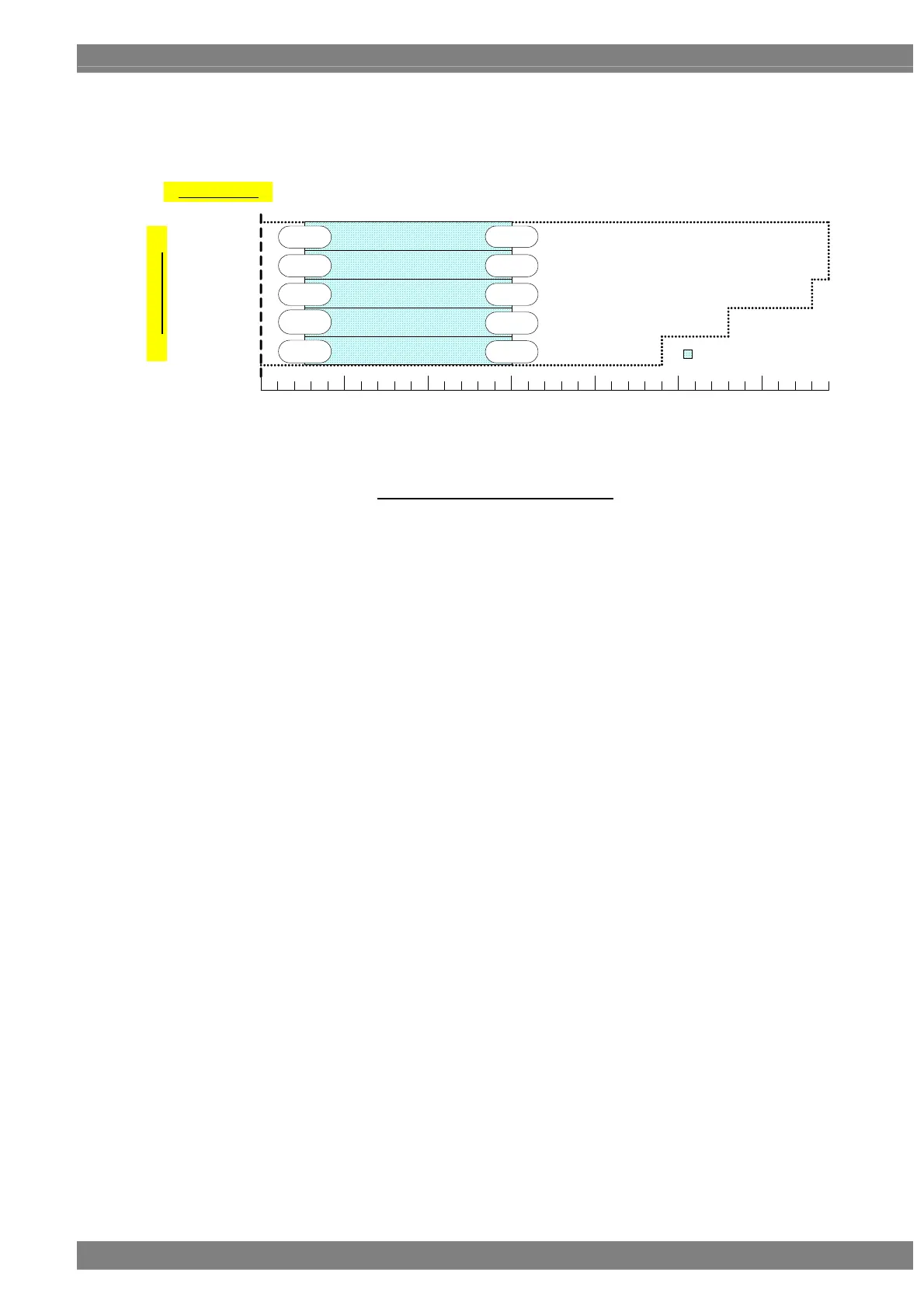

Dot clock limit of HDMI1 and HDMI2
For details on the pattern drawing bit length (Color Depth), refer to “4.1.5 Setting the bit length (gray
scale) for pattern drawing.”
For details on the Output video bit length (Video Width), refer to “4.2.2 HDMI setting procedure.”
340MHz300MHz250MHz200MHz100MHz0.1MHz
8Bit
9、10Bit
11、12Bit
13、14Bit
15、16Bit
Color Depth:
Video Width:
16Bit
Color Depth > Video Width の場合、データが切り捨てられています。
Color Depth < Video Width の場合、データ"0"が付加されています。
25M
25M
25M
25M
25M
150M
150M
150M
150M
150M ：VM-1823 (VG-873 、VG -874 )のみ対応
Only VG-873/874 support it.
When Color Depth > Video Width, the data is rounded off.
When Color Depth < Video Width, data “0” is added.
