Chapter 12 PRECAUTIONARY ITEMS

551

1360MHz1200MHz1000MHz800MHz400MHz0.1MHz

8Bit

9、10Bit

11、12Bit

13、14Bit

15、16Bit

592M

Color Depth:

Video Depth:

Octal(8Bit)

Color Depth > Video Width の場合、データが切り捨てられています。

Color Depth < Video Width の場合、データ" 0"が付加されています。

1320M

1120M

960M

データが切り捨てられています

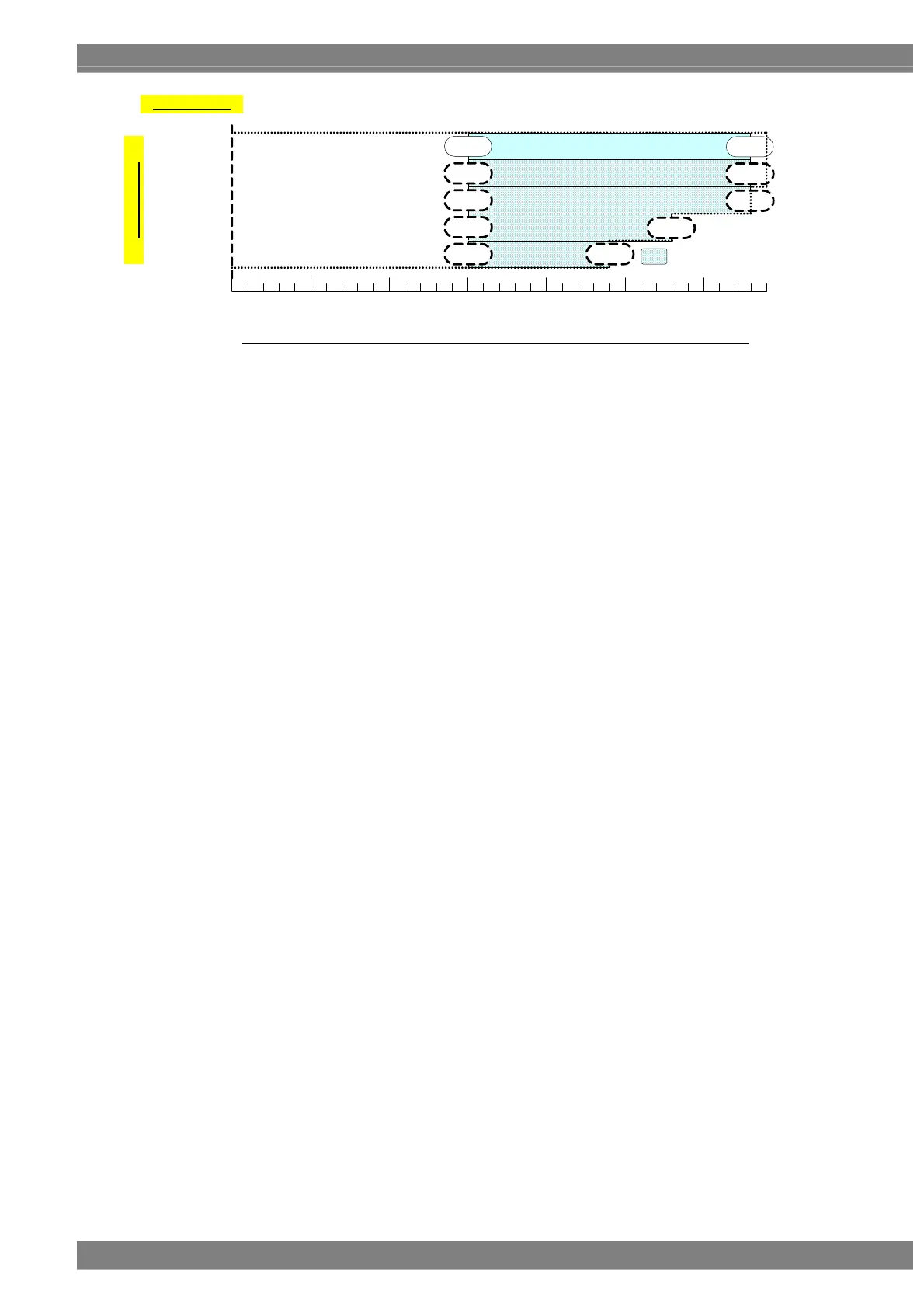

Restrictions on dot clock frequency for4K2K( iTMDS)(DVI_MODE/Octal Link)

The data in is rounded off.

When Color Depth > Video Width, the data is rounded off.

When Color Depth < Video Width, data “0” is added.
