Hose assembly 1684462671
The hose assembly 1684462671 connects the test
oil return of VDO piezo CRIs to the return quantity test
connection (Fig. 3, item 3).
1.684.462.671
YYYY-MM VDO
2,4
458900-35_Pal

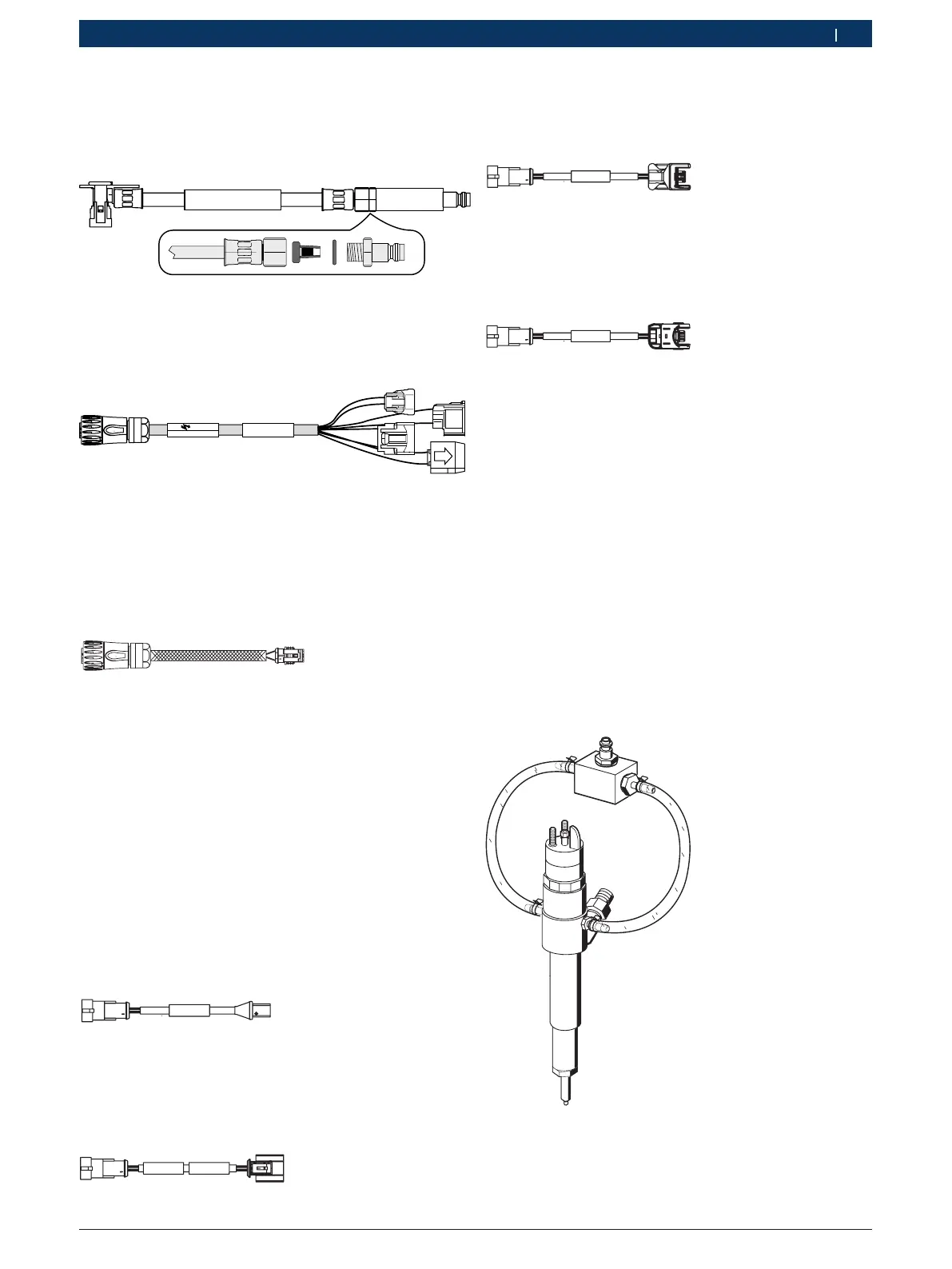

Fig. 17: Hose assembly 1684462671
Adapter cable 1684463618 (Denso CRI / piezo CRI)
For actuation of Denso CRIs / piezo CRIs using con-
nection X7 of the EPS 118 (Fig. 3, item 10).
458900-32_Pal
Piezo
Denso Injector
1 684 463 618
FD: MM/YYYY
Fig. 18: Adapter cable 1684463618
Connection cable 1684448333
For actuation of third-party CRIs using connection X7
of the EPS 118 (Fig. 3, item 10). The injector-specific
adapter cable is also needed to connect to the
CRI / piezo CRI.
458900-18_Pal
Fig. 19: Connection cable 1684448333
Adapter cable 1684463956 (non-Bosch CRI univer-
sal cable)
! Pay attention to the polarity when connecting
adapter cable 1684463956 to the injector. Rever-
se polarity may damage the injector irreversibly.
Observe the injector manufacturer's connection
instructions.
For actuation of third-party CRIs using connection X7
of the EPS 118 (Fig. 3, item 10). The flat plug with the
red dot corresponds to pin 1 and is the positive termi-
nal.
458900-22_Pal
Fig. 20: Adapter cable 1684463956
Adapter cable 1684463957 (VDO/ContinentalPiezo)
For actuation of VDO/Continental piezo CRIs using
connection X7 of the EPS 118 (Fig. 3, item 10).
458900-21_Pal
Fig. 21: Adapter cable 1684463957
Adapter cable 1684463954 (Delphi Euro3/4)
For actuation of Delphi Euro3/4 CRIs using connection
X7 of the EPS 118 (Fig. 3, item 10).
458900-20_Pal
Fig. 22: Adapter cable 1684463954
Adapter cable 1684463955 (Delphi Euro 5)
For actuation of Delphi Euro5 CRIs using connection
X7 of the EPS 118 (Fig. 3, item 10).
458900-19_Pal
Fig. 23: Adapter cable 1684463955
5.4.14 Accessory set 1687016038 (special
accessory)
Accessory set 1687016038 contains all the accesso-
ries used for connecting and testing Bosch CRIN to the
EPS 118.
Return adapter connection for CRIN with divided
return quantity
The return adapter connects the CRIN with divided
return quantity to the test connection for the return
quantity (Fig. 3, item3) on the EPS 118. The hose as-
sembly 1684462570 (Fig. 9, item1) and Bosch CRIN
hose fitting 1 683 386 192 (Fig. 9, item4) are needed
for connecting to the test connection for the return
quantity (Fig. 3, item3).
458826-13_K
o
Fig. 24: Connection of return adapter
