78 | EPS 118 | Operationen
7.7.3 Select CRI/CRIN or piezo CRI (Fig. 39)
i All of the tests sequences that are in the database
are displayed in the left column. Move the list up or
down to go to the desired CRI/CRIN or CRI Piezo.
Enter search criteria such as the brand name and/or
type part number into the white input box to filter
the list, and only those CRI/CRINs or piezo CRIs are
displayed that meet the search criteria.
1. Search and select the CRI/CRIN or piezo CRI in the
list.
 The information for testing and clamping CRI/
CRINs or piezo CRIs is displayed in the right win-
dow.
2. Select <Start>.

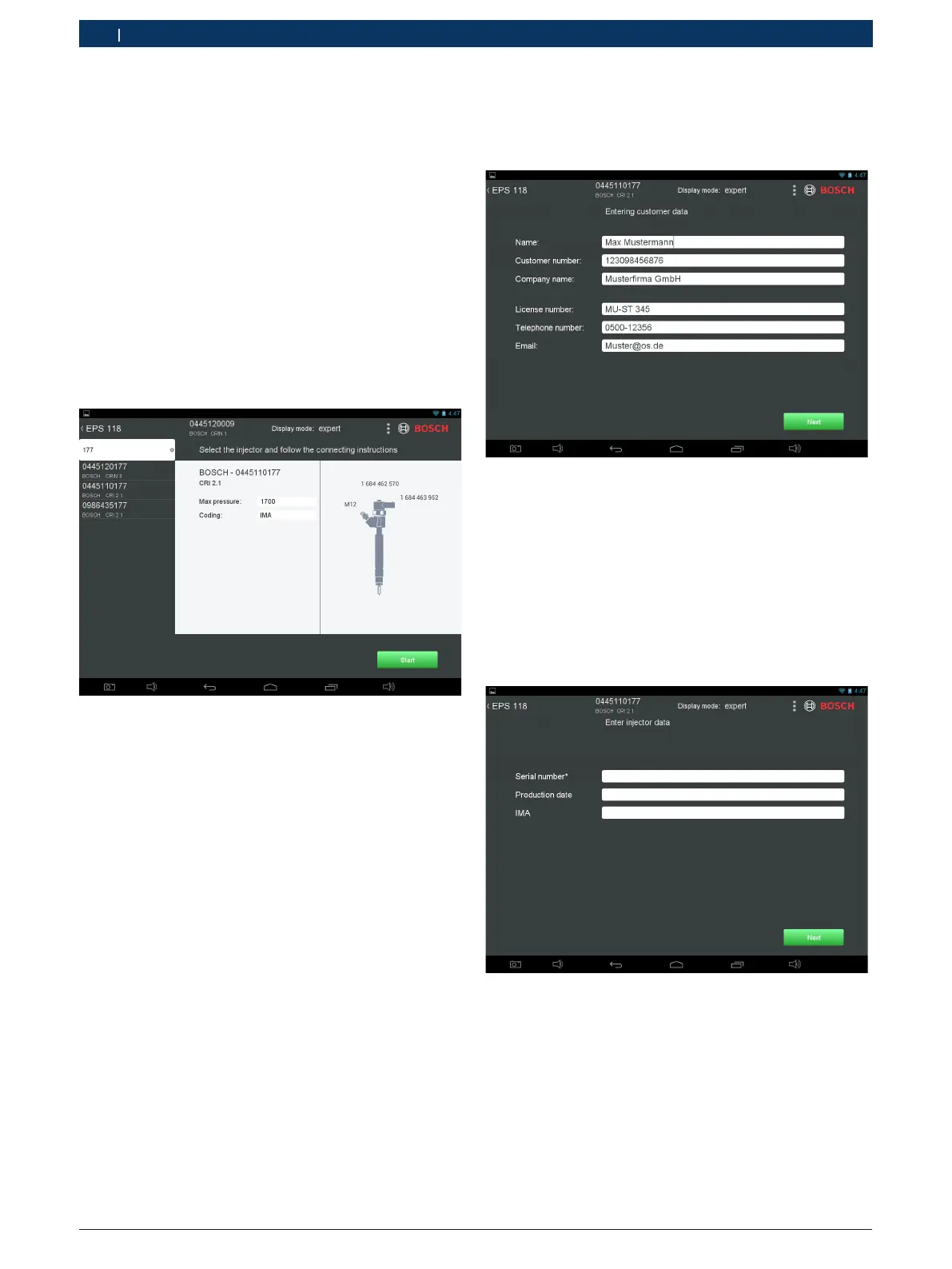

Fig. 39: Select Injector Screen
7.7.4 Entering customer data (Fig. 40)
1. Enter customer data. The customer data are dis-
played later in the log.
2. Select <Continue>.
Fig. 40: Entering customer data
7.7.5 Entering injector data (Fig. 41)
1. Entering injector data. The injector data are dis-
played later in the test log.
i The serial number field is mandatory. In order to
continue, the serial number of the CRI/CRIN or
piezo CRI must be entered.
2. Select <Continue>.
Fig. 41: Entering injector data
