102/188 Installation
Bosch Rexroth AG, MIT: ActiveMover, 3 842 564 874/2021-04
7.6.12 Connect power supply in section module

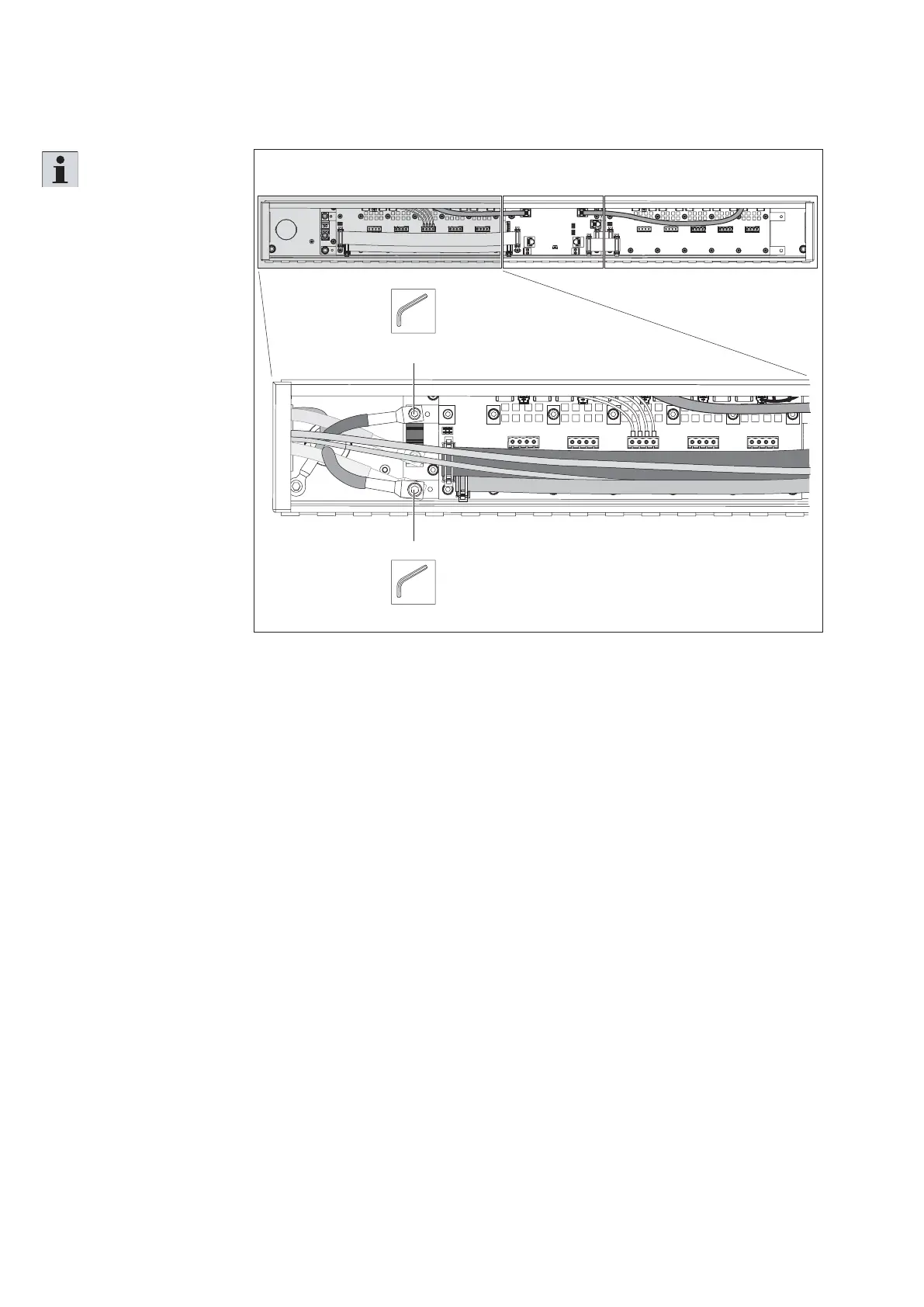

Fig. 75:
557 186-69
50
H
B
SW5
M
D
=11 Nm
SW4
M
D
=2,7 Nm
Connect power supply in section module
Please note:
For further information on
the electrical connection,
please refer to the circuit
diagram included in the
scope of delivery.
1. Insert the power supply
connection cable for
the power supply from
the rear into the section
module.
2. Connect the power
cable (28 V DC, blue)
to port B.
3. Connect the power cable
(0 V, blue/white) to
terminal H.
