Bosch Rexroth ActiveMover - Replacing the Printed Circuit Board (Gateway) (Curve Module)

Maintenance and repair 149/188
3 842 564 874/2021-04, MIT: ActiveMover, Bosch Rexroth AG
10.4.19 Replacing the printed circuit board (gateway) (curve module)

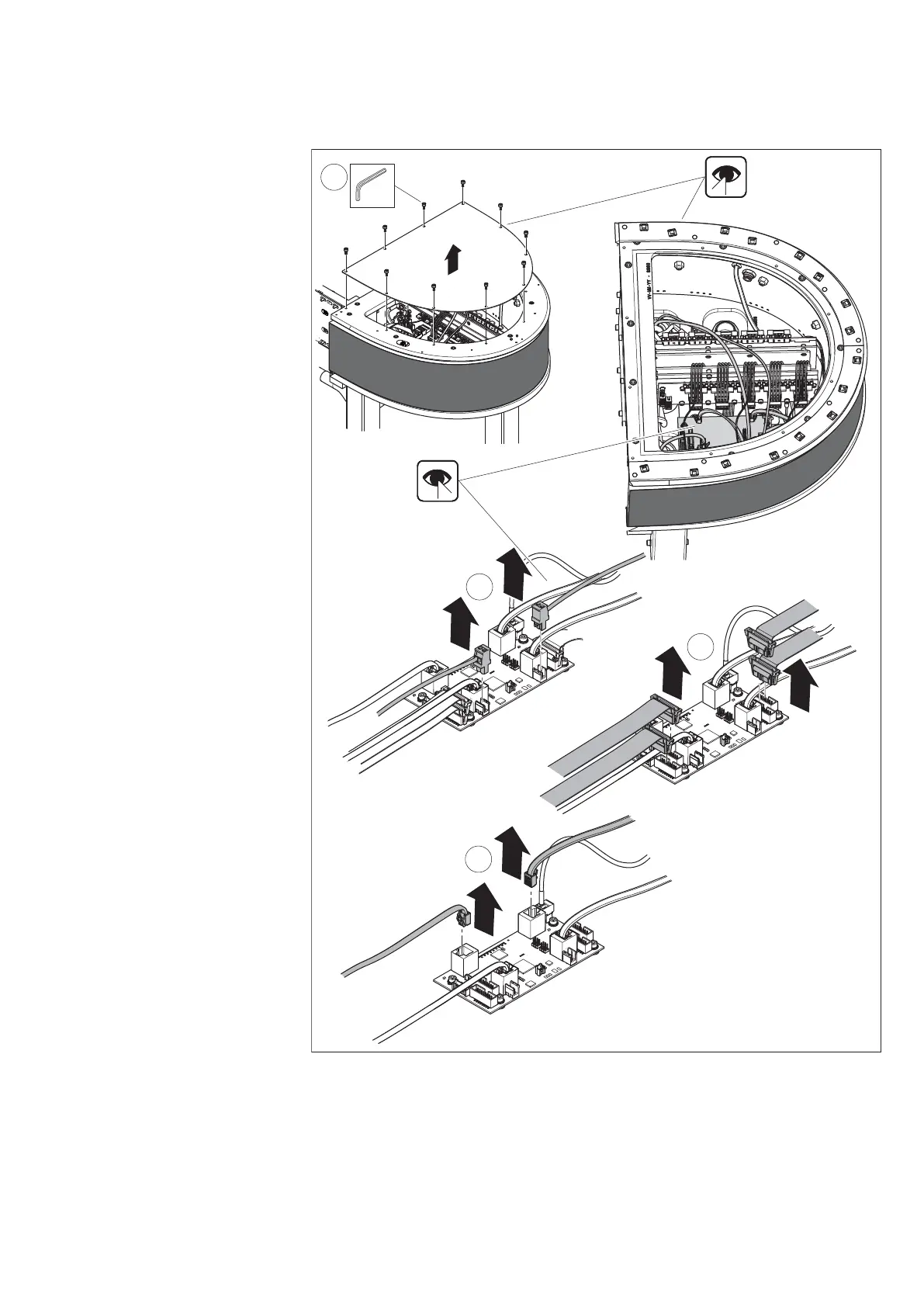

Fig. 107:
557 186-96
2
3
4
SW4
10x
1
M
D
=10 Nm
Replacing the printed circuit board (gateway) (curve module)
Necessary spare parts
• Printed circuit board
(gateway)
3 842 555 968
1. Remove the protective
cover of the curve
module.
2. Unplug the 2 plugs of the
24 V supply.
3. Unplug the 4 ribbon
cables.
4. Disconnect the 2
encoder cables.
